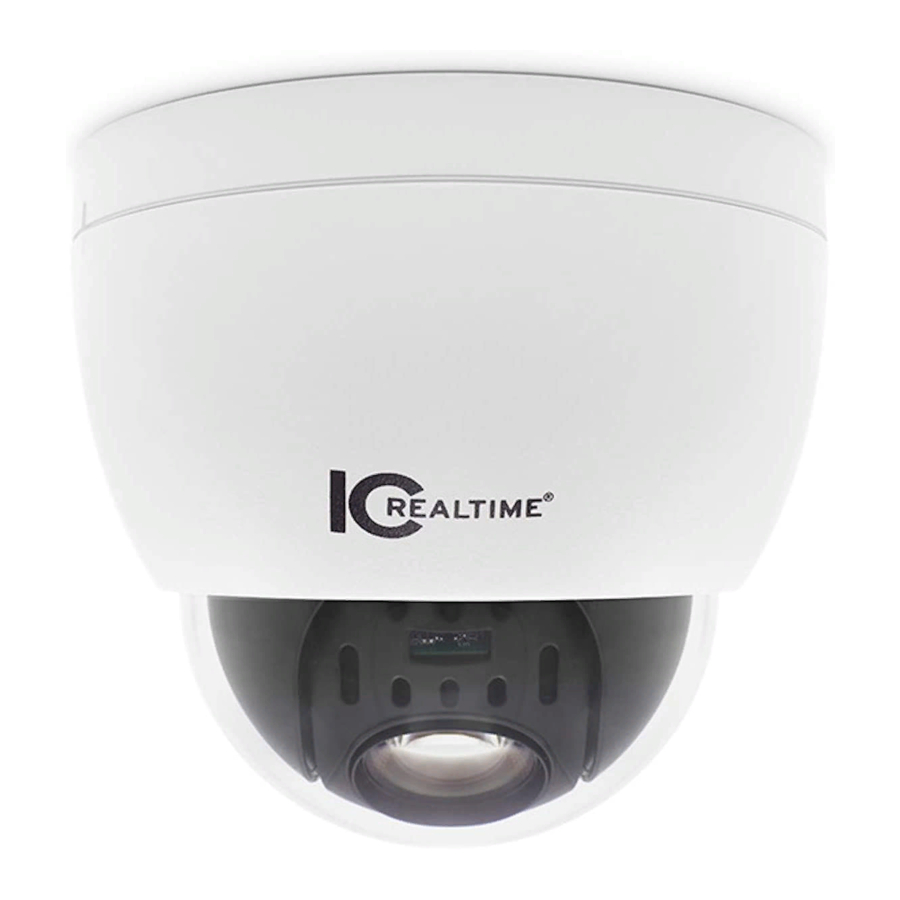

HD-AVS Dome
PTZ Camera
Quick Start Guide
Table Of Contents
Features and Specifications
A.
Overview
Camera Installation
A.
Installation Steps
OSD and PTZ Functions
FAQ and Lightning Protection
www.icrealtime.com
IMPORTANT SAFEGUARDS AND WARNINGS
Electrical Safety
All installation and operation here should conform to your local electrical safety codes. The
power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated DC12V/5A ± 25% (See product datasheet for the most accurate
power requirement specification). We assume no liability or responsibility for all the fires or
electrical shock caused by improper handling or installation. We are not liable for any problems
caused by unauthorized modification or attempted repair.
Transportation Security
Care must be given to avoid heavy stress, violent vibration or water damage during
transportation, storage and installation.
Installation
Do not apply power to the camera before completing installation. Please install the proper
power cut-off device during the installation connection. Always follow the instruction guide the
manufacturer recommended.
Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are
not liable for any problems caused by unauthorized modifications or attempted repair.
2
Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
2
inflammable, explosive substances and etc. Please keep it away from the electromagnetic
radiation object and environment. Please make sure the CCD (CMOS) component is out of the
radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component
3-4
damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into
5
the camera. Lightning-proof device is recommended to be adopted to better prevent lightning
damage. The grounding studs of the product are recommended to be grounded to further
enhance the reliability of the camera.
5
6
Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily
6-7
maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to
clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is
too much dust, please use the water to dilute the mild detergent first and then use it to clean
8
the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect
8-9
the CCD (CMOS) component when you do not use the camera.
Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, please
open the package and check all the components are included. Contact your local retailer ASAP
if something is broken in your package.
Advertisement
Table of Contents
Related Manuals for ICRealtime HD-AVS
Summary of Contents for ICRealtime HD-AVS
-
Page 1: Table Of Contents
We are not liable for any problems caused by unauthorized modification or attempted repair. HD-AVS Dome Transportation Security Care must be given to avoid heavy stress, violent vibration or water damage during transportation, storage and installation. -
Page 2: Cable Interface
1B. Cable Interface 1A. OVERVIEW See Figure 1-2. This series PTZ camera utilizes High Definition Advanced Video System (HD-AVS) technology, an HD-over-coaxial cable video FC Connector standard that allows long-distance, HD transmission of video, DC Power input audio, and control functions. The camera supports TVI, AHD and 24VAC input: Red(+), Black(-), Yellow/Green (ground) CVBS (SD) using the dip switch. - Page 3 Step 2 For outdoor installation, four rubber grommets are provided for Figure 2-3 the mounting screws to waterproof the base. See Figure 2-2. Step 4 Connect the necessary cabling to the camera. See Figure 2-4. Figure 2-4 Figure 2-2 www.icrealtime.com...
- Page 4 Step 5 Replace and secure the dome cover as shown in Figure 2-5. Figure 2-5 Step 6 It is recommended to waterproof any outdoor cabling. See Figure 2-6. Figure 2-6 www.icrealtime.com...
-
Page 5: Dip Switch Diagram
PTZ Control Panel then click to open OSD. The Use the up and down buttons to select menu item and the left and right to change parameter values. Click Enter to confirm. See Figure 3-2. Figure 2-7 Figure 3-2 www.icrealtime.com... -
Page 6: Osd Menu Functions
Zero; Power Up; Menu Password; Menu Idle; Channel Title; PTZ Auto Stop; Warm Machine; PTZ Correction Alarm Setting Alarm No; Action; Parameter; Contact; Relay Out; Reset Delay IR Light Setting IR Sensitivity; IR Light Ctrl; Near Light; Far Light; IR Light Comp www.icrealtime.com... - Page 7 Power Up: Sets action of: Auto, Preset, Scan, Tour, Pattern ● and None. If set to auto, the camera will resume the previous action before it powered down. Parameter: Number of selected function ● Figure 4-2 Figure 3-4 www.icrealtime.com...
-
Page 8: Faq
For indoor usage, The yellow and green GND wire or GND ● screw of the speed dome should be reliably connected by several strands of copper wire with no less than 25mm²and indoor equipotential GND terminal. Please refer to Figure 5-2 for lightning proof installation mode. www.icrealtime.com... - Page 9 4B. LIGHTNING PROOF AND SURGE PROTECTION (Continued) Figure 5-1 Figure 5-2 www.icrealtime.com...
