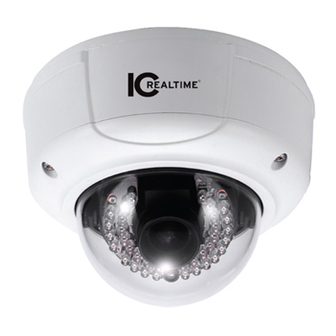

- Page 1 HD Vandal Proof Network Dome Camera User’s Manual Version 4.0.3...
- Page 2 Welcome Thank you for purchasing our network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. This series supports power supply via PoE. - Page 4 Please shut down the device and then unplug the power cable before you begin daily maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Specifications ........................ 2 1.3.1 Performance ......................2 Structure ............................4 Multiple-function Combination Cable ................ 4 Framework and Dimension ..................5 Bidirectional talk......................6 2.3.1 Device-end to PC-end ..................6 2.3.2 PC-end to the Device-end .................. - Page 6 Web Operation .......................... 16 Network Connection ....................16 Login and Main Interface ................... 16 FAQ ............................18 Appendix Toxic or Hazardous Materials or Elements ............... 19...
-
Page 7: General Introduction
1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 and MJPEG video compression technology and G.711a audio compression technology, which maximally guarantee the audio and video quality. -
Page 8: Specifications
Support auto iris. Built-in IR light. Support IR night vision. Backlight compensation: screen auto split to realize backlight compensation to adjust the bright. Support electronic shutter and gain setup. Support video watermark function to avoid vicious video modification. 1.3 Specifications 1.3.1 Performance Please refer to the following sheet for network camera performance specification. - Page 9 Privacy Mask Supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast. Video Channel title, time title, motion detect, tampering. Information Lens 3.3~12mm@F1.4 Lens Interface CS. Lens is the default accessories Audio Input 1-channel, RCA audio input. Audio Output 1-channel, RCA, audio output.
-
Page 10: Structure
2 Structure 2.1 Multiple-function Combination Cable You can refer to the following figure for multiple-function combination cable information. See Figure 2-1 Figure 2-1 Multiple-function combination cable Please refer to the following sheet for detailed information. Port Name Function Connection Note Power port. -
Page 11: Framework And Dimension
Port Name Function Connection Note Connect to standard Ethernet cable. Note: Ethernet Network port Before making crystal head, pull the port anti-dust cover through network cable. Support PoE. Audio input Input audio signal. It can receive the analog AUDIO IN port audio signal from the pickup. -
Page 12: Bidirectional Talk
Figure 2-2 Dimension illustration 1 Figure 2-3 Dimension illustration 2 2.3 Bidirectional talk 2.3.1 Device-end to PC-end Device Connection Please connect the speaker or the MIC to the audio input port of the device. Then connect the earphone to the audio output port of the PC. Login the Web and then click the Talk button to enable the bidirectional talk function. -
Page 13: Pc-End To The Device-End
Listening Operation At the device end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the pc-end. 2.3.2 PC-end to the Device-end Device Connection Connect the speaker or the MIC to the audio input port of the PC and then connect the earphone to the audio output port of the device. - Page 14 Please refer to the following figure for alarm input information. See Figure 2-5. Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the alarm input port. When the input signal is connected to the 3.3V or is idle, the device collects the logic “1”.
-
Page 15: Installation
3 Installation Important Before you complete the installation and setup, do not remove the electrostatic attraction film on the transparent enclosure. Otherwise it may result in injury. After remove electrostatic attraction film, do not touch dome enclosure in case it may leave stain. - Page 16 With IR light Without IR light Figure 3-2 Device installation illustration 2 Step 3 Draw out the cable exit and four screw holes in the installation position according to the device pedestal. Dig the four plastic expansion bolt holes and cable exit. Insert the four plastic expansion bolts into the screw holes Step 4 Adjust the camera pedestal to the proper position and then draw the cable through the cable exit you...
- Page 17 With IR light Without IR light Figure 3-3 Device installation illustration 3 Step 6 Adjust the X-Y-Z axis module to turn the device to the proper monitor angle. Please follow the steps listed below to adjust. See Figure 3-4. Please note, for the dome of the IR light, you can skip step a) and step e). ...
-
Page 18: Micro Sd Card Installation
Please note camera with IR light does not have decoration cover, so please skip step a and e. Please note, the screws in the following figure are the optical adjustment component. Please make sure it is outward and do not allow it to touch the X-Y-Z axis module. See Figure 3-5 Figure 3-5 Device installation illustration 5 Step 7 Put the dome cover back and then put the three inner hexagon screws into the holes of the device. -
Page 19: Lens Adjustment
With IR light Without IR light Figure 3-7 Micro SD card installation illustration 3.3 Lens Adjustment Step 1 Slightly loose the screw B manually and then turn the screw B slowly. Adjust the lens focus distance to the proper position according to the monitor video. See Figure 3-8. Step 2 Use the flat screwdriver to loose the screw A slightly and then turn the Screw A slowly. -
Page 20: Quick Configuration Tool
4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”... - Page 21 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface.
-
Page 22: Web Operation
5 Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ... - Page 23 Figure 5- 2 Web login After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. See Figure 5- 3. Figure 5- 3 Web monitoring window...
-
Page 24: Faq
6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device. factory default setup. Micro card Do not set the Micro SD card as the storage media to storage the write times schedule record file. -
Page 25: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device ○ ○ ○ ○ ○ ○ Construction Material ○ ○ ○ ○ ○...
