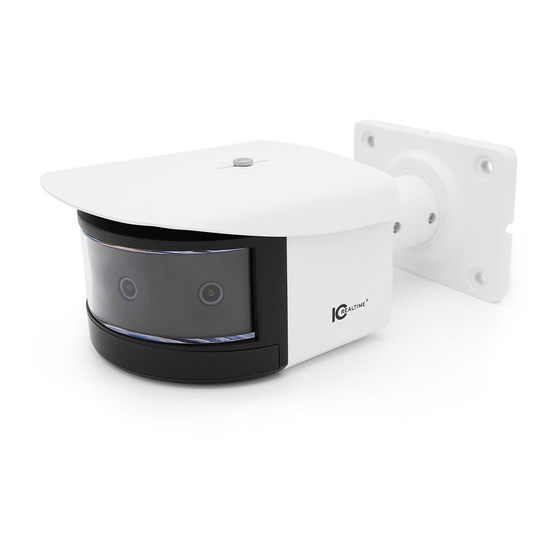

HD IR Quad Lens
Panoramic Bullet
Network Camera
Quick Start Guide
Table Of Contents
Features and Specifications
Camera Installation
Installing SD card
Quick Configuration Tool
Web Operation
Appendices
www.icrealtime.com
IMPORTANT SAFEGUARDS AND WARNINGS
Electrical Safety
All installation and operation here should conform to your local electrical safety codes. The
power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the
Limited power source is rated 24VAC/ POE+ in the IEC60950-1. This series product supports
PoE too. Please note: Do not connect these two power supplying sources to the device at the
same time; it may result in device damage! We assume no liability or responsibility for all the
fires or electrical shock caused by improper handling or installation. We are not liable for any
problems caused by unauthorized modification or attempted repair.
Transportation Security
Care must be given to avoid heavy stress, violent vibration or water damage during
transportation, storage and installation.
Installation
Do not apply power to the camera before completing installation. Please install the proper
power cut-off device during the installation connection. This camera does not support
connection to IC Realtime NVR built-in PoE. An external switch should be used.
Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers. We are
not liable for any problems caused by unauthorized modifications or attempted repair.
Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
2
inflammable, explosive substances and etc. Please keep it away from the electromagnetic
2
radiation object and environment. Please make sure the CCD (CMOS) component is out of the
radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component
damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into
3-4
the camera. Lightning-proof device is recommended to be adopted to better prevent lightning
5
damage. The grounding studs of the product are recommended to be grounded to further
enhance the reliability of the camera.
Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily
5
maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to
5-6
clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is
too much dust, please use the water to dilute the mild detergent first and then use it to clean
the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect
7
the CCD (CMOS) component when you do not use the camera.
7-8
Accessories
Be sure to use all the accessories recommended by manufacturer. Before installation, please
9
open the package and check all the components are included. Contact your local retailer ASAP
if something is broken in your package.
9-10
Advertisement
Table of Contents
Related Manuals for ICRealtime IPEL-MB80F-IRW1
Summary of Contents for ICRealtime IPEL-MB80F-IRW1
-
Page 1: Table Of Contents
Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package. Toxic or Hazardous Elements 9-10 www.icrealtime.com... -
Page 2: Overview
It can be used standalone or with a network video recorder. If used standalone, it is able to utilize IC Realtime’s software suite including Smart ICRSS, IC View and ICRSS Pro. This model also supports IC Realtime’s P2P connection which allows easy remote connection. Figure 1-1 www.icrealtime.com... -
Page 3: Installation Steps
Step 2 Install the mounting screws through the mounting surface to Step 4 For side cable exit, see Figure 2-4. the mounting plate. Route the cabling as needed through the mounting surface or the side exit notch of the camera base. See Figure 2-2. Figure 2-4 Figure 2-2 www.icrealtime.com... - Page 4 RJ45 enclosure, see figure 2-7. screw on the top of the cover the sliding the shade to the desired position.. See Figure 2-5. Figure 2-5 Adjusting Lens Angle See Figure 2-6 to adjust lens angle. Figure 2-6 Figure 2-7 www.icrealtime.com...
-
Page 5: Restore Factory Defaults And
This software can be downloaded at: Step 3 if only installing SD card. under Desktop Utility Apps https://icrealtime.com/downloads Step 2 Slightly press the RESET button for 15-30 seconds to 3B. OPERATION complete the reset function. See Figure 2-8. The camera will reboot Double click the “ConfigTools.exe”... - Page 6 “Initialize” icon on the bottom left side and follow the process on screen to initialize the device. The Operate column will allow you to modify device, view device information and link to web browser. See figure 3-3. Figure 3-3 www.icrealtime.com...
-
Page 7: Network Connection
Using Command Prompt, type “ping ***.***.***.***(* network ● camera address)” to check if connection is OK or not. 4B. LOGIN AND LOGOUT Open IE or Chrome and input the network camera address in the address bar. See Figure 4-1. Figure 4-1 Figure 4-2 www.icrealtime.com... - Page 8 Easy Focus: Click the icon to display the AF Peak (focus eigenvalue) and AF Max (max focus eigenvalue) on the video image. Audio: Click the icon to enable or disable audio output. Talk: Click the icon to enable or disable the 2 Figure 4-3 way talk. www.icrealtime.com...
-
Page 9: Faq
Reboot the camera to clear lock out. Verify The account is locked the login to make sure it is correct. O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. www.icrealtime.com... - Page 10 All trademarks and registered trademarks mentioned are the ● properties of their respective owners. If there is any uncertainty or controversy, please refer to the final ● explanation of us. Please visit our website for more information. ● www.icrealtime.com...
