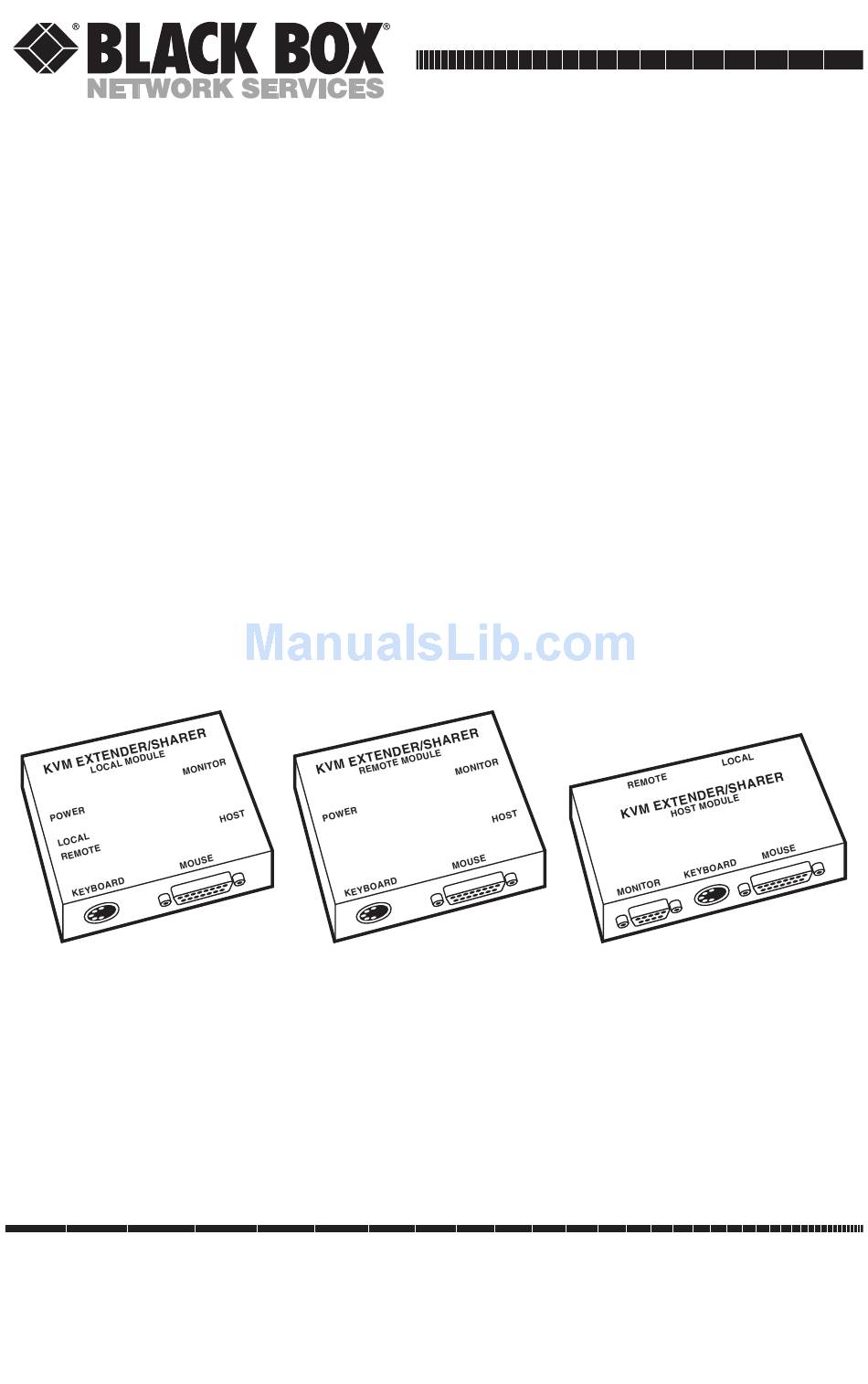

KVM Extender/Sharer (for VGA)
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
JUNE 1998
AC230A
AC234A
AC231A
AC235A
AC232A
AC236A
AC233A
AC237A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box AC230A
Summary of Contents for Black Box AC230A
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 TRADEMARKS TRADEMARKS USED IN THIS MANUAL AT, IBM, and PS/2 are registered trademarks, and PC/XT is a trademark, of IBM Corporation. Any other trademarks mentioned in this manual are acknowleged to be the property of the trademark owners.
-
Page 3: Table Of Contents
4.2 Pro Version Only ................12 4.3 Types of Equipment Supported ............13 4.3.1 Keyboards ..................13 4.3.2 Monitors ..................13 4.3.3 Mice .....................13 5. Troubleshooting ..................15 5.1 Calling Black Box ................15 5.2 Shipping and Packaging ..............15 Appendix: Pinouts ..................16... -
Page 4: Specifications
CHAPTER 1: Specifications 1. Specifications Standards — Interfaces — (4): PC keyboard, VGA video, PC serial mouse, and proprietary composite Maximum Distance — From Local module to Host module: 6 ft. (1.8 m); From Host module to Remote module: 150 ft. (45.7 m) with VGA KVM Extension Cable (EHM027) User Controls —... -
Page 5: Introduction
KVM EXTENDER/SHARERS 2. Introduction 2.1 General Overview The Keyboard/Video/Mouse (KVM) Extender/Sharers let you either control a computer from a remote keyboard, monitor, and mouse, or share a computer between two users (not at the same time). In Shared Mode, local or remote user control is exercised through a switch on the Host Module of the Extender/Sharer, which is connected directly to the computer. -
Page 6: What You Should Have Received
Mouse standard. • VGA Extender/Sharer Plus and Pro: Both monitors can display the same screen simultaneously. 2.3 What You Should Have Received AC230A (Complete VGA KVM Extender/Sharer system): • (1) Host Module • (1) Remote Module • (1) Local Module •... -
Page 7: Other Items You Might Need
KVM EXTENDER/SHARERS AC236A (Complete VGA KVM Extender/Sharer Pro system): • (1) Host Module Pro • (1) Remote Module • (1) Local Module • (1) Cable to run from the PC’s keyboard port to the Host Module Pro (5-pin DIN male connectors on either end) AC237A: •... -
Page 8: Installation
CHAPTER 3: Installation 3. Installation The KVM Extender/Sharer modules are simple to install; Figure 3-1 below and Figure 3-2 on the next page show typical setups. 1. Connect the video, mouse, and keyboard cables from the computer to the appropriately labeled connectors on the Host unit. 2. - Page 9 KVM EXTENDER/SHARERS If you’re going to use the Extender/Sharers in Shared Mode, run an extension cable from the Host Module to the Local Module connector labeled “HOST.” Then run the cables from your local monitor, keyboard, and mouse (or other serial device) to the appropriately labeled connectors on the Local Module.
-
Page 10: Operation
CHAPTER 4: Operation 4. Operation Once the computer system is booted, if you’re in the Extended Mode, you’re ready to begin working. NOTE In Shared Mode, always cold-boot the system from the Local setup. If you boot from the Remote Module, the results are unpredictable. When the computer system is booted in the Shared Mode, the local user has the option of remaining connected to the PC or switching control to the remote keyboard, monitor, and mouse. -
Page 11: Plus Version Only: Setting Switch W4
KVM EXTENDER/SHARERS 4.1 Plus Version Only: Setting Switch W4 There is a second four-position DIP switch, labeled W4, inside the Host Module of the KVM Extender/Sharer Plus. The W4 switch is located in front of the left corner of the “Local” connector labeled J3. Set positions 1 through 3 of S1 to OFF and position 4 to ON (the factory- default setting) if you want the remote screen to be disabled when the local keyboard and mouse are active and the local screen screen to be disabled... -
Page 12: Types Of Equipment Supported
CHAPTER 4: Operation 4.3 Types of Equipment Supported 4.3.1 K EYBOARDS The Extender/Sharers support all original-equipment keyboards when (1) you operate the Extender/Sharer in Extended Mode (where you control the computer solely from the remote location), or (2) you operate the Extender/Sharer in Shared Mode and use the original keyboard as the local keyboard. - Page 13 KVM EXTENDER/SHARERS NOTE Mouse drivers for software-configurable mice are specialized and might not support other serial mice. So it’s best to use the same type of software-configurable mouse at both locations in Shared Mode. However, many types of nonconfigurable mice are supported by popular mouse drivers, so you might be able to mix a software-configurable mouse with a mouse that doesn’t require configuring.
-
Page 14: Troubleshooting
5.1 Calling Black Box If you determine that your KVM Extender/Sharer system is malfunctioning, do not attempt to alter or repair any of the units. Contact Black Box. The problem might be solvable over the phone. Before you do, make a record of the history of the problem. We will be... -
Page 15: Appendix: Pinouts
KVM EXTENDER/SHARERS Appendix: Pinouts This appendix lists the pinouts of the ports used on the Local, Remote, and Host Modules of the Extender/Sharers. Mouse Keyboard Pin # Signal Pin # Signal Frame Ground (can be jumpered Clock to Signal Gnd. in Host Module) Data Transmit Data (from computer to Not used... - Page 16 © Copyright 1998. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
