- Page 1 User Manual MUH44TPR2-N 4K HDBaseT 4x4 Matrix Switcher All Rights Reserved Version: MUH44TPR2-N_2016V1.1...
- Page 2 Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited. FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited...
-
Page 4: Table Of Contents
1. Introduction ......................... 1 1.1 Introduction to the MUH44TPR2-N ..............1 1.2 Features ......................1 1.3 Package List ...................... 2 2. Product Appearance of the MUH44TPR2-N ............... 3 2.1 Front Panel ......................3 2.2 Rear Panel ......................4 3. System Connection ..................... 6 3.1 System Applications ................... - Page 5 4.4.2 GUI for TCP/IP control ................25 4.4.3 GUI Update.................... 27 4.5 Firmware Update via USB ................28 5. Specification ......................29 6 Panel Drawing ......................30 7. Troubleshooting & Maintenance ................32 8. After-sales Service ....................34 PTN Electronics Limited...
-
Page 6: Introduction
1. Introduction 1.1 Introduction to the MUH44TPR2-N MUH44TPR2-N is a professional 4x4 HDBaseT Matrix Switcher that accommodates 4 HDMI IN (4k signal at max), 4 auxiliary audio IN, 4 IR IN. Select HDMI input by front panel buttons, IR, RS232, or GUI. The selected source is delivered to HDMI Output 1~2 (for HDMI input 1~2) &... -
Page 7: Package List
4K HDBaseT 4x4 Matrix Switcher 1.3 Package List 1 x MUH44TPR2-N 2 x Mounting ears (6 x Screws) 1 x RS232 cable 1 x IR Receiver 4 x Plastic cushions (4 x Black Screws) 1 x IR remote ... -
Page 8: Product Appearance Of The Muh44Tpr2-N

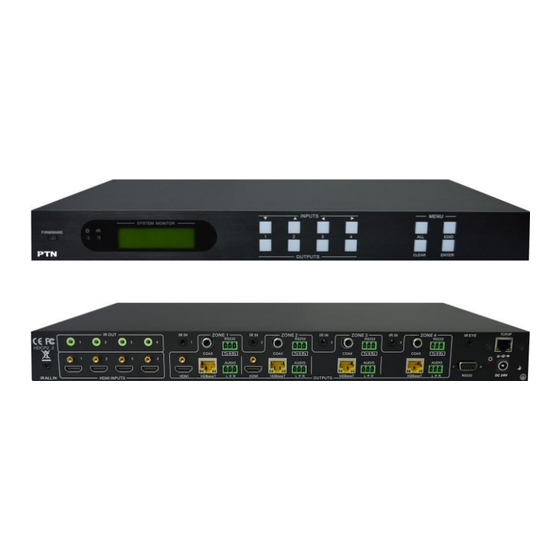

4K HDBaseT 4x4 Matrix Switcher 2. Product Appearance of the MUH44TPR2-N 2.1 Front Panel INPUTS MENU SYSTEM MONITOR FIRMWARE EDID CLEAR ENTER Name Description ① Firmware Micro USB port for updating firmware Power ② Illuminate red when power on. Indicator ③... -
Page 9: Rear Panel
OUTPUTS corresponding HDBaseT receiver. When controlled by HDBaseT receiver, the communication protocol must be the same with MUH44TPR2-N. d. HDMI: HDMI output port, connect with HDMI displayers, deliver same input signals with HDBaseT ports, split HDMI output for local monitoring. - Page 10 PoC. f. AUDIO: HDMI de-embedded stereo audio output Connect with extended IR receiver, use the IR remote to ⑤ IR EYE control MUH44TPR2-N. ⑥ TCP/IP TCP/IP port for unit control Serial port for unit control, 9-pin female connector, connects ⑦...
-
Page 11: System Connection
4K HDBaseT 4x4 Matrix Switcher 3. System Connection 3.1 System Applications As its good performance in control and transmission, the MUH44TPR2-N can be widely used in computer realm, monitoring, large screen displaying, conference system, television education and bank securities institutions etc. -
Page 12: Connection Procedure
MUH44TPR2-N or far-end receivers. RS232 signal can be transmitted bi-directionally between MUH44TPR2-N and far-end receivers. 7) MUH44TPR2-N can collect IR signal sent by the included IR remote via its built-in IR sensor or through external IR receiver connected to the IR IN/ IR EYE/ IR ALL IN port. -
Page 13: System Operations
4K HDBaseT 4x4 Matrix Switcher 4. System Operations 4.1 Front Panel Button Control MUH44TPR2-N provides with convenient front panel button control. Here we make a brief introduction to the system operations. 4.1.1 Switching I/O connection To convert one input to an output: Operation: “input”+“output”+“ENTER”... - Page 14 Invoke embedded EDID data for one input Operation: Press “EDID” (hold for 3 seconds to enter in EDID setting status), “INPUTS”+“OUTPUTS”+“ENTER”. Example: Set the EDID data of INPUT 2 to the forth type of embedded EDID data: PTN Electronics Limited...
-
Page 15: Inquiry
HDCP with HDCP, N means not. Use the UP and DOWN Check the output direction button to check all resolution the 4 output resolutions. Output check Press any output button to check its corresponding input. PTN Electronics Limited... -
Page 16: Clear Operation
In EDID invoking mode: press button 1/2 to switch among the 5 embedded EDID data Note: With this IR remote, MUH44TPR2-N can be controlled by the built-in IR, the extended IR receiver connected to the “IR EYE”/”IR ALL IN” and the IR receiver on the far-end receiver. -
Page 17: Force Carrier
1 to 1: (through IR IN) Connect an IR receiver with IR carrier to the IR IN port of MUH44TPR2-N; users can control far-end output displayer via its IR remote from local. -
Page 18: Control Local Device Remotely
Receiver connected to IR IN of the receiver is not with carrier. Multiple to Multiple: (IR Matrix) The 4 “IR OUT” ports and the 4 “IR IN” ports on the far-end receivers make up a 4x4 IR matrix. See as below: PTN Electronics Limited... -
Page 19: Rs232 Control
Sending command (reference to 4.3 RS232 Control): [x1]R[x2]. x1: Corresponding to the 4 IR OUT ports of the matrix, the IR transmitter connected to this port can be placed at IR receiving area of output device or MUH44TPR2-N itself. -
Page 20: Control Through 9-Pin Rs232 Port
Control 3rd party device from local Connect the RS232 (3-pin pluggable terminal block) port in any zone to PC, and connect the controlled RS232 device (3rd party device) to the corresponding (same zone as PC) receiver, see below: PTN Electronics Limited... -
Page 21: Installation/Uninstallation Of Rs232 Control Software
Uninstallation Delete all the control software files in corresponding file path. 4.3.5 Basic Settings Firstly, connect MUH44TPR2-N with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. -
Page 22: Rs232 Communication Commands
2) In above commands, “[”and “]” are symbols for easy reading and do not need to be typed in actual operation. 3) Please remember to end the commands with the ending symbols “.” and “;”. 4) Type the command carefully, it is case-sensitive. PTN Electronics Limited... - Page 23 X Open. (X=01~04) All@. Switch on all output channels. All Open. Transfer the AV signal from the input channel [x1] to one or several output AV: X1-> X2 [x1]V[x2]. channels ([x2], separate output channels (X1/X2=01~04) with comma). PTN Electronics Limited...
- Page 24 X=1, 2, 3, 4, enable this port. DigitAudio ON with [x] X=5, enable all the 4 ports. DigitAudioOF Disable HDMI audio output of port x. DigitAudio OFF with X=1, 2, 3, 4, disable this port. F[x]. PTN Electronics Limited...
- Page 25 ③ ***** is for data (max 48 Byte) Input port [y] learns the EDID from output port [x]. EDIDH[x]B[y]. If the EDID data is available and the audio EDIDH[x]B[y] part supports not only PCM mode, then force-set it to support PCM mode only. If PTN Electronics Limited...
- Page 26 EDID file 5. 3840x2160 2D (30Hz) When the switcher gets the command, it will show a message to send EDID file (.bin file). Operations will be invalid after 10 seconds. GetIntEDID[x]. Return the embedded EDID data ranked PTN Electronics Limited...
- Page 27 Connect Y Y Y Y Out 01 02 03 04 Check the connection status of the %9972. Connect Y Y Y Y outputs. 1 2 3 4 %9973. Check the HDCP status of the inputs. HDCP N N N N PTN Electronics Limited...
-
Page 28: Tcp/Ip Control
IP& gateway can be changed as you need, Serial Port cannot be changed. Connect the Ethernet port of control device and TCP/IP port of MUH44TPR2-N, and set same network segment for the 2 devices, users are able to control the device via web-based GUI or designed TCP/IP communication software. - Page 29 Controlled by PC(s) in LAN Connect MUH44TPR2-N, a router and several PCs to setup a LAN (as shown in the following figure). Set the network segment of MUH44TPR2-N to the same as the router’s, then PCs within the LAN are able to control MUH44TPR2-N.
-
Page 30: Gui For Tcp/Ip Control
4K HDBaseT 4x4 Matrix Switcher Step4. Set the PC’s network segment to the original ones. Step5. Connect the MUH44TPR2-N and PC(s) to the router. PC(s) within the LAN is able to control the MUH44TPR2-N asynchronously. Then it’s able to control the device via GUI. - Page 31 If there is any modification, press Save to restore the settings, or press Cancel to withdraw. Interface: Set title bar label, LCD readout, and button labels, press Save to save the settings Configuration: Set HDCP Cmpliance status for every input, and manage EDID. See the screenshot below: PTN Electronics Limited...
-
Page 32: Gui Update
Note: Log in as user access main interface only. 4.4.3 GUI Update GUI for MUH44TPR2-N supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface. After that, click... -
Page 33: Firmware Update Via Usb
Select the desired update file and press Apply, it will start upgrading then. 4.5 Firmware Update via USB MUH44TPR2-N boasts a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware: Step1. Copy the upgrade software and the latest upgrade file (.bin) to PC. -
Page 34: Specification
1 TCP/IP (female RJ45) 1 RS232 (9 pin female D) 4 RS232 (3-pin pluggable terminal blocks) Panel RS232 9-pin female RS232 Front panel buttons Control Control connector Built-in IR sensor TCP/IP Web-based GUI Extended IR receiver Control PTN Electronics Limited... - Page 35 4K HDBaseT 4x4 Matrix Switcher General Power Power DC 24V 2.71A 48W (Max) Supply Consumption Reference Temperature -10 ~ +40℃ 10% ~ 90% Humidity 437 x 44 x 235 mm Dimension (1U high, full rack Weight 2.0Kg (W*H*D) wide) PTN Electronics Limited...
-
Page 36: Panel Drawing
IR OUT IR IN IR IN IR IN IR IN IR EYE HDCP2 2 COAX COAX COAX COAX AUDIO AUDIO AUDIO AUDIO HDMI HDBaseT HDMI HDBaseT HDBaseT HDBaseT RS232 DC 24V IR ALL IN HDMI INPUTS OUTPUTS PTN Electronics Limited... -
Page 37: Troubleshooting & Maintenance
The IR receiver connected Change for an IR receiver to IR IN/ IR ALL IN port is with carrier. not with carrier Power Indicator remains off Fail loose power Check whether the cables when powered on connection are connected correctly PTN Electronics Limited... - Page 38 Send it to authorized by RS232 / IR remote / been broken. dealer for repairing. front panel buttons If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. PTN Electronics Limited...
-
Page 39: After-Sales Service
If there appear some problems when running the device, please check and deal with the problems reference to this user manual. 1) Product Limited Warranty: PTN warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product). - Page 40 PTN Electronics Limited Email Website:...
