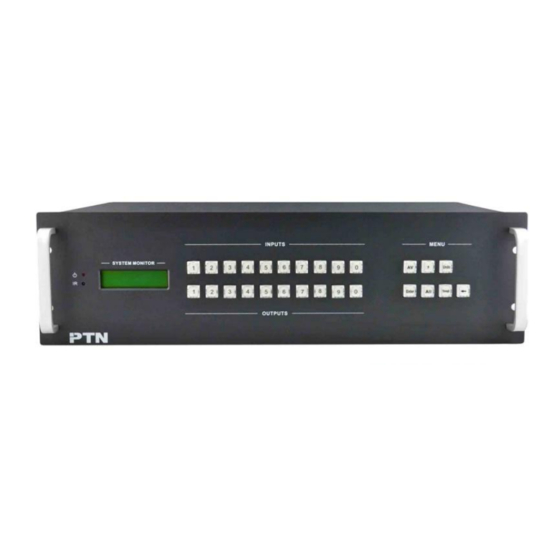

- Page 1 Modular Matrix Switcher 16x16 USER MANUAL MMX1616 PTN Modular Matrix Switcher 16x16 Version: MMX16162013V1.1 www.PTN-electronics.com PTN Electronics Limited...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
Modular Matrix Switcher 16x16 Table of Contents Introduction ......................1 1.1. About MMX1616 .................... 1 1.2. MMX Modular Matrix Switcher Models ............1 1.3. MMX signal card (changeable cards) ............. 1 1.4. Package Contents..................1 Features ......................... 2 Specification ......................2 3.1. -
Page 4: Introduction
There are different signal card is used for processing different video signal, including: HMDI, DVI, VGA, SDI and HDMI TP etc. MMX1616 can be used for different project, because of its changeable card design. It is the combo solution for multimedia conference rooms, control rooms, broadcasting rooms, shopping center etc. -
Page 5: Mmx Modular Matrix Switcher Models
Modular Matrix Switcher 16x16 1.3. MMX signal card (changeable cards) To meet different situation and users, the MMX1616 cards are classified into the following models: Spec Inputs Signal Format Models MMX-4I-HD HDMI MMX-4I-DV MMX input cards MMX-4I-VG MMX-4I-SD MMX-4I-TP RJ45... -
Page 6: Features
2 = TX, 3 = RX, 5 Serial control port D connector Configurations = GND Front panel Installation Rack Mountable Buttons control Options TCP/IP control by PTNET(PTN's programmable interface) General 100VAC ~ 240VAC, Power Power Supply 50/60Hz Consumption Temperature -20 ~ +70℃ Humidity 10% ~ 90% W482.6 x H132.5x... -
Page 7: Changeable Cards
Supports Extended Display Identification Data (EDID) and EDID and DDC Display Data Channel (DDC) data using DVI and HDMI 1.4a standards. EDID and DDC signals are actively buffered HDCP Compliant with HDCP using DVI and HDMI 1.4a standards www.PTN-electronics.com PTN Electronics Limited... - Page 8 4 RJ45, 4IR&RS232 RS232 Female RJ45 Female RJ45 3.5mm mini jack for 3.5mm mini jack for Input Output Connector Connector 3 poles captive screw 3 poles captive screw connector for RS232 connector for RS232 75Ω 75Ω Input Output www.PTN-electronics.com PTN Electronics Limited...
-
Page 9: Operations Of The Front Panel
AV synchronal button: To transfer video and audio signal synchronously by the switcher. Operation: Press buttons in this order “3”, “AV”, “4”. Division button: to divide the output channels when switching to more than one channel. www.PTN-electronics.com PTN Electronics Limited... - Page 10 2) “Input Channel”: Fill with the number of input channel to be controlled, 3) “Output Channel”: Fill with the number of output channels to be controlled. 4) MMX1616 needs to use “,” button to separate multiple outputs, and “ENTER” button to confirm the operation.
-
Page 11: External Connection
MMX-4O-DV, or pass through other kinds of output cards. MMX-4O-DV: output card, maximum four output signal. Output signal can come from MMX-4I-DV, or from other kinds of input cards. Pin Layout of the DVI-I connector (Dual-Link). (Female) www.PTN-electronics.com PTN Electronics Limited... - Page 12 MMX-4O-HD, or pass through other kinds of output cards. MMX-4O-HD: output card, maximum four output signal. Output signal can come from MMX-4I-HD, or come from other kinds of input cards. Pin layout of the HDMI connectors (female). www.PTN-electronics.com PTN Electronics Limited...
- Page 13 Supporting RGBHV, RGsB, RGBS, RsGsBs, YUV, YC and Composite video. MMX-4I-VG: input card, maximum four input signal. Input signal can pass to output device through any kinds of output cards. Pin layout of the VGA connectors (female): www.PTN-electronics.com PTN Electronics Limited...
- Page 14 Support HDTV, compatible with HDMI1.4a and HDCP. MMX-4I-TP: input card, maximum input four HDMI TP signal. Input signal can pass to output device through MMX-4O-TP, or pass through other kinds of output cards, need to work with TPHD402T. www.PTN-electronics.com PTN Electronics Limited...
-
Page 15: Connection Of Rs-232 Communication Port
Except the front control panel, the MMX matrix can be controlled by far-end control system or through the Ethernet control via the RS-232 communication port. This RS-232 communication port is a female 9-pin D connector. The definition of its pins is as the table below. www.PTN-electronics.com PTN Electronics Limited... -
Page 16: Connection With Computer
5.5. Connection of TCP/IP Communication Port (Optional Function) The MMX matrix can work with the PTN model “PTNET”, to enable the TCP/IP function. The PTNET is a programmable RCP/IP to RS232 processor, which is built in the FTP and fixed IP address inside and working compatible with internet. -
Page 17: System Diagram
Modular Matrix Switcher 16x16 6. System Diagram www.PTN-electronics.com PTN Electronics Limited... -
Page 18: Communication Protocol And Command Codes
Save[Y]. Save the present operation to the preset command [Y]. [Y] ranges from 0 to 9. Recall[Y]. Recall the preset command [Y]. Clear[Y]. Clear the preset command [Y]. EDIDMInit. Recover the factory default EDID data. www.PTN-electronics.com PTN Electronics Limited... - Page 19 1. These commands are for MMX-4I-VGA only; [x] is the channel of the matrix but not the channel of card. For MMX1616, [x] must be two Bytes. 2. [x1], [x2], [x3] and [x4] are the symbols of input or output channels ranged according to the model of the matrix switcher.
- Page 20 Example: “EDIDM5B3.” to copy the EDID data of the display on output5 to input3. 15、Command for MMX-4I-VGA: PTNI[X]*****. Example: “PTNI070623%.” to set the input 7 to support YPbPr signal, the card is plugged in the second input slot of the matrix. www.PTN-electronics.com PTN Electronics Limited...
-
Page 21: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. www.PTN-electronics.com PTN Electronics Limited... -
Page 22: Troubleshooting & Maintenance
Modular Matrix Switcher 16x16 9. Troubleshooting & Maintenance 1) When the output image in the destination device connected to MMX1616 has ghost, such as the projector output with ghost, please check the projector’s setting or try another high quality connection cord. -
Page 23: After-Sales Service
Damage caused by force majeure. Remarks: For any more questions or problems, please try to get help from your local distributor, or email PTN at support@PTN-electronics.com. www.PTN-electronics.com PTN Electronics Limited...
