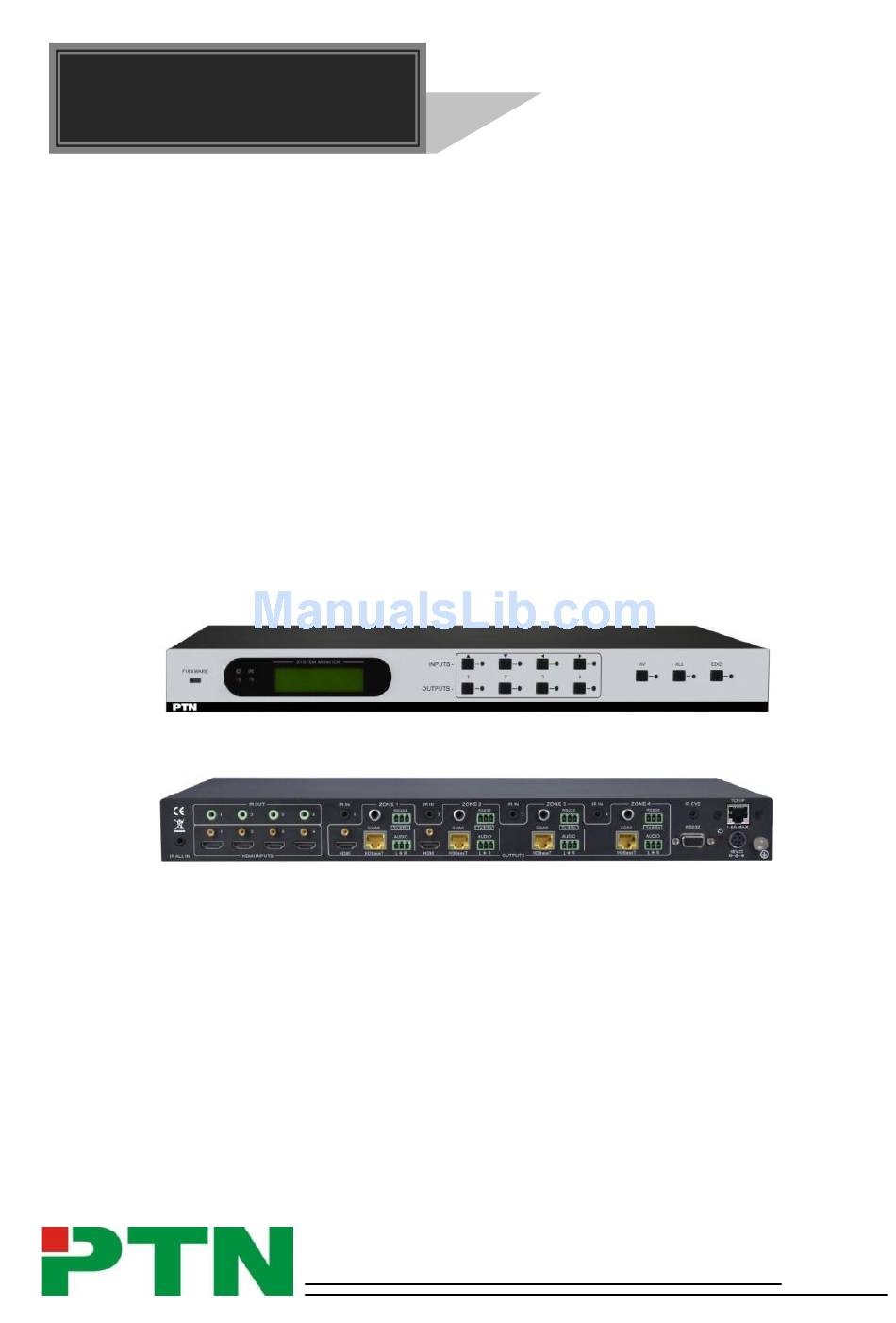

- Page 1 User Manual MHD44TP-N PTN HDBaseT 4x4 Matrix Switcher-N All Rights Reserved Version: MHD44TP-N_2014V1.3 www.PTN-electronics.com...
-
Page 2: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited www.PTN-electronics.com... - Page 3 Pictures shown in this manual are for reference only, different model and specifications are subject to real product. This is a manual for MHD44TP-N. It can also be applied to MHD44TP series scaler switchers including MHD44TP-TN, MHD44TP-T and MHD44TP-N with little adjustment.
-
Page 4: Table Of Contents
1.1 Introduction to MHD44TP-N ................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Product Appearance of MHD44TP-N ................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 2.3 Connection with RS232 Communication Port ............ 4 2.4 Twisted Pair Cable Connection ................ -
Page 5: Introduction
HDBaseT 4x4 Matrix Switcher-N 1. Introduction 1.1 Introduction to MHD44TP-N MHD44TP-N is a 4x4 HDBaseT matrix switcher, including 4 HDMI inputs, 4 HDBaseT outputs, 2 local HDMI outputs, 4 de-embedded stereo audio & 4 de-embedded digital audio outputs. It enables cross-point switching from any input to any output, and supports high resolution 1080P, HD3D. -
Page 6: Product Appearance Of Mhd44Tp-N
HDBaseT 4x4 Matrix Switcher-N contact with the dealers. 2. Product Appearance of MHD44TP-N 2.1 Front Panel Name Description ① Firmware Micro USB port for firmware update. Power ② Illuminate red when power on. Indicator ③ IR Receiver In-built IR sensor, receive control signal from IR remote. -
Page 7: Rear Panel
IR OUT on the corresponding HDBaseT receiver. ④ OUTPUTS HDMI: HDMI output port, connect with HDMI displayers, deliver same input signals with HDBaseT ports, split HDMI output for local monitoring. COAX: HDMI de-embedded digital audio output. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Connection With Rs232 Communication Port
MHD44TP-N. 2.3 Connection with RS232 Communication Port Except the front control panel, MHD44TP-N can be controlled by far-end control system through the RS232 communication port. This RS232 communication port is a female 9-pin D connector. The definition of its pins is listed in the table below. -
Page 9: Twisted Pair Cable Connection
1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3) All devices should be connected before power on. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: System Diagram
4) Connect the HDBaseT ports of HDBaseT receiver and MHD44TP-N with twisted pair. 5) Connect the RS232 port (9 pin female D) of MHD44TP-N with control device, e.g. 6) Connect the RS232 port of the device to be controlled to the RS232 port of the PTN Electronics Limited www.PTN-electronics.com... -
Page 11: System Applications
HDBaseT Receiver or MHD44TP-N. The control signal can be transmitted bi-directionally. 7) MHD44TP-N can be controlled by its built-in IR receiver or the external IR receiver connected to the IR EYE port. IR signals can be transmitted bi-directionally between MHD44TP-N’s IR OUT/ IR IN and HDBaseT Reciever’s IR IN/ IR OUT. - Page 12 Every button can be programmed to send the infrared code, control the relay, to let them work simultaneously to control the third party devices. Every button is built in the infrared code and RS232 code learning function, and baud-rate setting. PTN Electronics Limited www.PTN-electronics.com...
-
Page 13: System Operations
Use the UP and DOWN direction Resolution Check the button to check all the 4 output output resolution Out 1 1920x1080 resolutions. 5.2 IR Control By using IR & HDBaseT transmission technology, MHD44TP-N has some functions as PTN Electronics Limited www.PTN-electronics.com... -
Page 14: Usage Of Ir Remote
2) Control local input/output device remotely. 3) Control MHD44TP-N locally/remotely. MHD44TP-N can be controlled by its built-in IR receiver or through the IR EYE port by connecting with extended IR receiver, or even can be controlled remotely by a far-end IR device through the twisted pair. -
Page 15: Ir Operations
Corresponding to the 4 IR OUT ports of MHD44TP-N, The IR transmitter connected to this port can be placed at IR receiving area of output device or MHD44TP-N itself. x2: Corresponding to the zone (receive IR signal from HDBaseT receiver with IR IN port connects with IR receiver) number of MHD44TP-N. - Page 16 IR signal can be transferred to IR OUT port of MHD44TP-N. b) Only if the IR receiver connected with IR ALL IN port of MHD44TP-N is with IR carrier, the received IR signal can be transferred to IR OUT port of MHD44TP-N.
- Page 17 Control far-end device through IR ALL IN port 5) Control local device from remote User can control local device such as video source device, MHD44TP-N etc remotely. When using, the IR signal received from the HDBaseT receiver will be transmitted to the corresponding IR OUT port of MHD44TP-N.
-
Page 18: Rs232 Control
Through the RS232 communication port, user can control a far-end device whose bound rate is 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Default setting of MHD44TP-N: bound rate is 9600, data bit is 8, stop bit is 1 and parity bit is none. Communication protocol: RS232 Communication Protocol... - Page 19 Transfer the AV signal from the input [x1] V[x2]. channel [x1] to the output channel [x2]. X2=1、2、3、4) Transfer the AV and IR signal from the X1->X2(X1 、 [x1] B[x2]. input channel [x1] to the output channel X2=1、2、3、4) [x2]. PTN Electronics Limited www.PTN-electronics.com...
- Page 20 HDCP Automatically HDCP management. If %0801. %0801 input is with HDCP, so is output. X1-> X2(X1 、 Transfer the IR signal from the input [x1] R[x2]. channel [x1] to the output channel [x2]. X2=1、2、3、4) PTN Electronics Limited www.PTN-electronics.com...
- Page 21 Y = A, B, C or D d. Y = E, F, G or H For items c or d, send this command, it will be saved to MHD44TP-N but taken without action to corresponding /+[Y]/[X]:******. /+[Y]/[X]:******.
- Page 22 Check the command sent by port 2 when %9952. Port 2: Data PWON. Check the command sent by port 3 when %9953. Port 3: Data PWON. Check the command sent by port 4 when %9954. Port 4: Data PWON. PTN Electronics Limited www.PTN-electronics.com...
- Page 23 EDID data. Note: 1. Please disconnect all the twisted pairs before sending command EDIDUpgrade[X]. 2. In above commands, “[”and “]” are symbols for easy reading and do not need to be PTN Electronics Limited www.PTN-electronics.com...
-
Page 24: Control Mhd44Tp-N
4. Type the command carefully, it is case-sensitive. 5.3.2 Control MHD44TP-N To control MHD44TP-N, you need to connect the 9 pin female RS232 port to PC’s RS232 port, or you can just connect any one of the HDBaseT receiver’s RS232 port with PC (RS232 command transmits to MHD44TP-N via the twisted pair). -
Page 25: Bi-Directional Rs232 Control
Control 3rd-party Device through 9 pin female RS232 port 5.3.4 Bi-directional RS232 Control By connecting one 3-pin captive screw RS232 port of MHD44TP-N with PC (or controlled device), and connecting the RS232 port of corresponding HDBaseT receiver with controlled device (or PC), the RS232 signal is able to be transmitted bi-directionally. -
Page 26: Tcp/Ip Control
4001. IP & Gateway can be changed as you need, Serial Port cannot be changed. Controlled by PC without network accessing Connect a computer to the HDBaseT port of MHD44TP-N, and set its IP address and gateway to the same IP section as the default IP of MHD44TP-N (192.168.0.178). - Page 27 MHD44TP-N can be connected with a router to make up a LAN with the PC(s), this make it able to be controlled in a LAN. Make sure MHD44TP-N’s IP section is the same with the router. Please connect like the following figure for LAN control.
-
Page 28: Tcp/Ip Settings
Step1. Connect the TCP/IP port of MHD44TP-N to Ethernet port of PC with twisted pair. Step2. Set the PC’s IP address and gateway to the same IP section as MHD44TP-N’s. Do remember the PC’s original IP address and gateway. Step3. Set MHD44TP-N’s IP address and gateway to the same IP section as the router’s. - Page 29 Select the tab “system info”, and then you are able to change the IP. DO NOT change it Enter right IP for each item, better has the same IP section with the router DO NOT change it PTN Electronics Limited www.PTN-electronics.com...
- Page 30 HDBaseT 4x4 Matrix Switcher-N b) Press the button Apply to save your settings. Then the PC(s) in this LAN (connected with this router) will be able to control MHD44TP-N. Change Serial Port a) Select the tab “serial info”, and then you are able to change the serial port.
-
Page 31: Usb Firmware Updating
To meet the need of different users or additional function in future, the firmware of MHD44TP-N can be upgraded via USB. When you need to upgrade it, please download the latest upgrade file and then you are able to upgrade it through the update EXE software. -
Page 32: Specification
Differential) 100Ω ( 100Ω ( Impedance Impedance Video General Gain 0 dB Bandwidth 6.75Gbit/s Maximum Video Signal HDMI (or DVI-D) 225MHz Pixel Clock Up to 1920 x Resolution Switching 1200@60Hz or 200ns (Max.) Range Speed 1080P@60Hz PTN Electronics Limited www.PTN-electronics.com... - Page 33 Works with PTNET2.2 Extend IR EYE Control General Power Power DC48V,1.6A Supply Consumption Temperature -10 ~ +40℃ Humidity 10% ~ 90% 483 x 44 x 235 mm Dimension (1U high, full rack Weight 1.8Kg (W*H*D) wide) PTN Electronics Limited www.PTN-electronics.com...
-
Page 34: Panel Drawing
There is a blank screen on The display does not Switch again. the display when switching support the resolution of Manage the EDID data the video source. manually to make the resolution of the video source automatically compliant with the output PTN Electronics Limited www.PTN-electronics.com... - Page 35 Send it to authorized by RS232 / IR remote / been broken. dealer for repairing. front panel buttons If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. PTN Electronics Limited www.PTN-electronics.com...
-
Page 36: After-Sales Service
Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: PTN warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail).
