Summary of Contents for PTN MHD3232

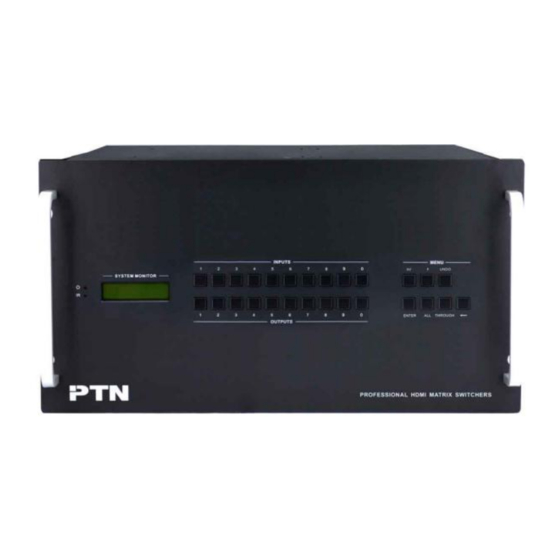

- Page 1 HDMI Matrix Switcher 32x32 USER MANUAL MHD3232 PTN HDMI Matrix Switcher 32x32 Version: MHD32322013V1.3 www.PTN-electronics.com PTN Electronics Limited...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
EDID automatically shake hand ..............8 7.2. EDID management of MHD matrix..............9 8. Communication Protocol and Command Codes ............9 9. Safety Operation Guide ................... 12 10. Troubleshooting & Maintenance ................13 11. After-sales Service ....................14 www.PTN-electronics.com PTN Electronics Limited... -
Page 4: Introduction
With RS232 interface, it can be worked with PC, remote control system and any other far-end control system devices. 1.2. Package Contents 1 x MHD3232 1 x Power cord 1 x IR remote 4 x Plastic cushions ... -
Page 5: Specification
2 = TX, 3 = RX, 5 Control Port female D connector Configurations = GND Front Panel IR Remote Default IR remote Buttons Control Options TCP/IP control by PTNET(PTN's programmable interface) General Power 100VAC ~ 240VAC, Power 200W Supply 50/60Hz Consumption Temperature -20 ~ +70℃... -
Page 6: Operation Of The Control Panel And The Ir Remote
Example2: To transfer all input signals to the corresponding output channels respectively. In another word, to switch to this status: 1->1, 2->2, 3->3, 4->4…32->32 Operation: Press buttons in this order “ALL”, “THROUGH” THROUGH Through button: To transfer the signals directly to the www.PTN-electronics.com PTN Electronics Limited... -
Page 7: Usage Of The Ir Remote
IR remote are the same with the ones on the front control panel, the IR remote shares the same operations and commands with the control panel. Please press the buttons in this order: Input channel -> Menu -> Output Channel www.PTN-electronics.com PTN Electronics Limited... -
Page 8: External Connection
The outputs channels, from 0~9, and plusing “10+” for more. F4-2 Panel of the IR Remote 5. External Connection 5.1. Introduction of the Input and Output Connectors ① ② ③ ④ F5-1 Rear panel www.PTN-electronics.com PTN Electronics Limited... -
Page 9: How To Connect With The Input And Output Terminals
With the RS232 port, the HDMI matrix switchers can be control by several kinds of control systems. This RS232 communication port is a female 9-pin D connector. The definition of its pins is as the table below. www.PTN-electronics.com PTN Electronics Limited... -
Page 10: Connection With Computer
In MHD switcher series, the numbers of the input/output ports are based on the product bought by the users. For example, MHD3232 has 32 input ports and 32 output ports, numbered from 1~ 32. According to different occasions, users can connect it to different source signal (computer signal, AV signal etc.) devices, such as DVD player, desktop... -
Page 11: Operation Of The Edid Management
HDMI Matrix Switcher 32x32 F6-1 MHD3232 system connection 7. Operation of the EDID management MHD matrix switcher is built in the EDID management database. The EDID management can be automatically shake hand, manual exchanged, or factory restore. 7.1. EDID automatically shake hand The MHD matrix switcher is built in the EDID data, which can communicate with the displayers and video source automatically. -
Page 12: Edid Management Of Mhd Matrix
8. Communication Protocol and Command Codes With this command system, the RS232 software is able to control and operate the MHD Matrix with remotely. Communication protocol: RS232 Controlling Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none www.PTN-electronics.com PTN Electronics Limited... - Page 13 [x2]. [x1] B[x2],[x3],[x4].. Transfer both the video and the audio signals from the input channel [x1] to the output channels [x2], [x3] and [x4]. Status. Inquire the input channel to the output channels one by one. www.PTN-electronics.com PTN Electronics Limited...
- Page 14 7、 Transfer signals from an input channel to the corresponding output channel: [x]#. Example: “5#.” to transfer signals from the input channel No.5 to the output channel No.5. 8、Switch off an output channel: [x]$. Example: “5$.” to switch off the output channel No.5. www.PTN-electronics.com PTN Electronics Limited...
-
Page 15: Safety Operation Guide
6) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. www.PTN-electronics.com PTN Electronics Limited... -
Page 16: Troubleshooting & Maintenance
8) If the Matrix cannot be controlled by the keys on the front panel, RS232 port or IR remote, the unit may has already been broken. Please send it to the dealer for repairing. www.PTN-electronics.com PTN Electronics Limited... -
Page 17: After-Sales Service
Damage caused by force majeure. Remarks: For any more questions or problems, please try to get help from your local distributor, or email PTN at support@PTN-electronics.com. www.PTN-electronics.com PTN Electronics Limited...
