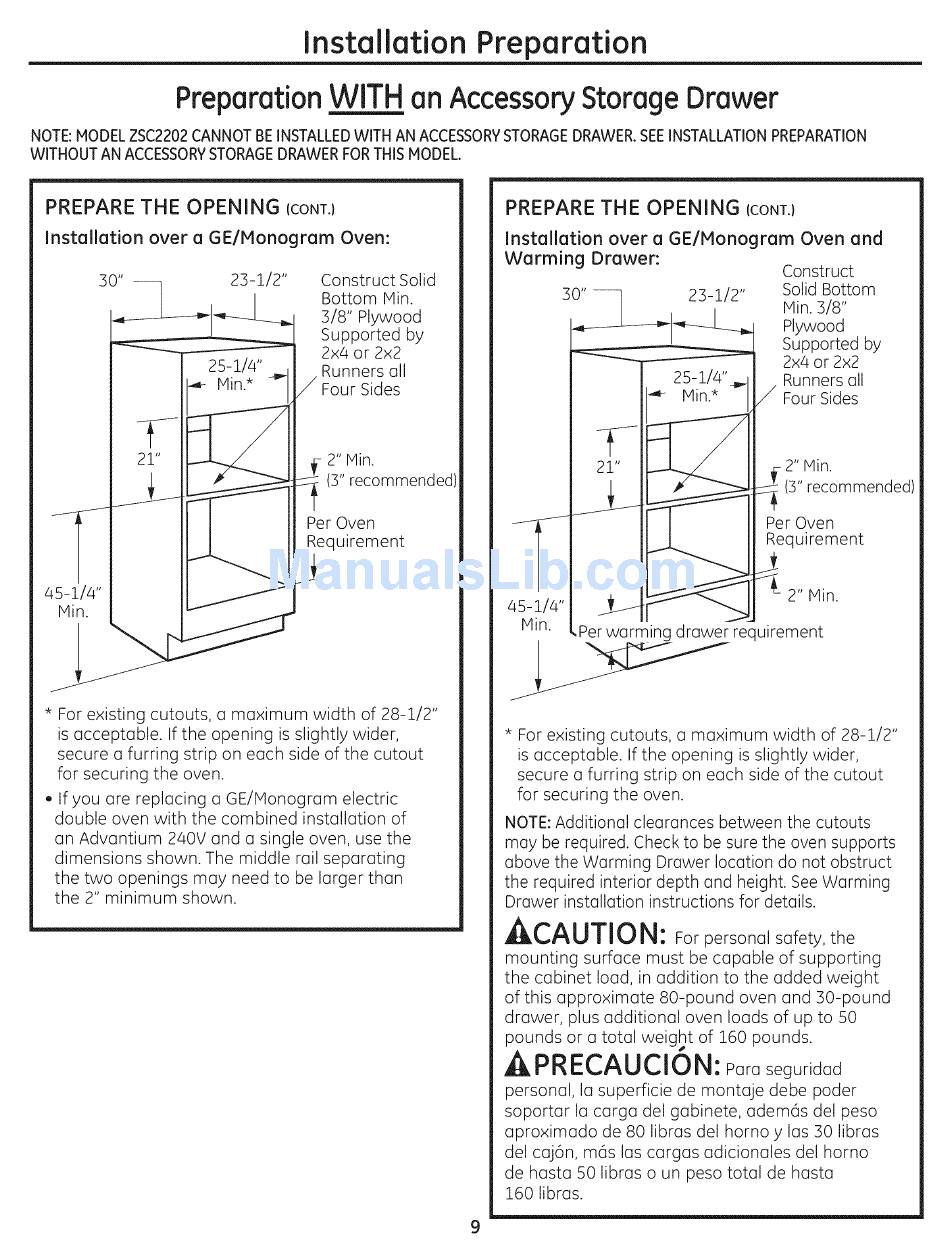

Installation Preparation
Preparation WIT_______HH an Accessory Storage Drawer
NOTE:MODELZSC2202CANNOT BE INSTALLED WITH AN ACCESSORY S TORAGE DRAWER.SEEINSTALLATION PREPARATION
WITHOUTAN ACCESSORY S TORAGE DRAWERFORTHISMODEL.
PREPARE THE OPENING CCONT.I
Installation over a GE/Monogram Oven:
30" -- 23-1/2"
Construct Solid
Bottom Hin.
3/8" Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
2" Min.
(3" recommended
Per Oven
Requirement
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
, If you are replacing a GE/Honogram electric
double oven with the combined installation of
an Advantium 240V and a single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING CCONT.I
Installation over a GE/Monogram Oven and
Warming Drawer:
Construct
30" -- 23-1/2" Solid Bottom
Hin. 3/8"
Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
2" Min.
(3" recommended)
Per Oven
Requirement
2" Hin.
,Per warming drawer requirement
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven and 30-pound
drawer, plus additional oven loads of up to 50
pounds or a total weight of 160 pounds.
APRECAUCION: Para
s eguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, ademds del peso
aproximado de 80 libras del homoy las B0 libras
del caj6n, mc_slas cargas adicionales del homo
de basra 50 libras o un peso total de basra
160 libras.
