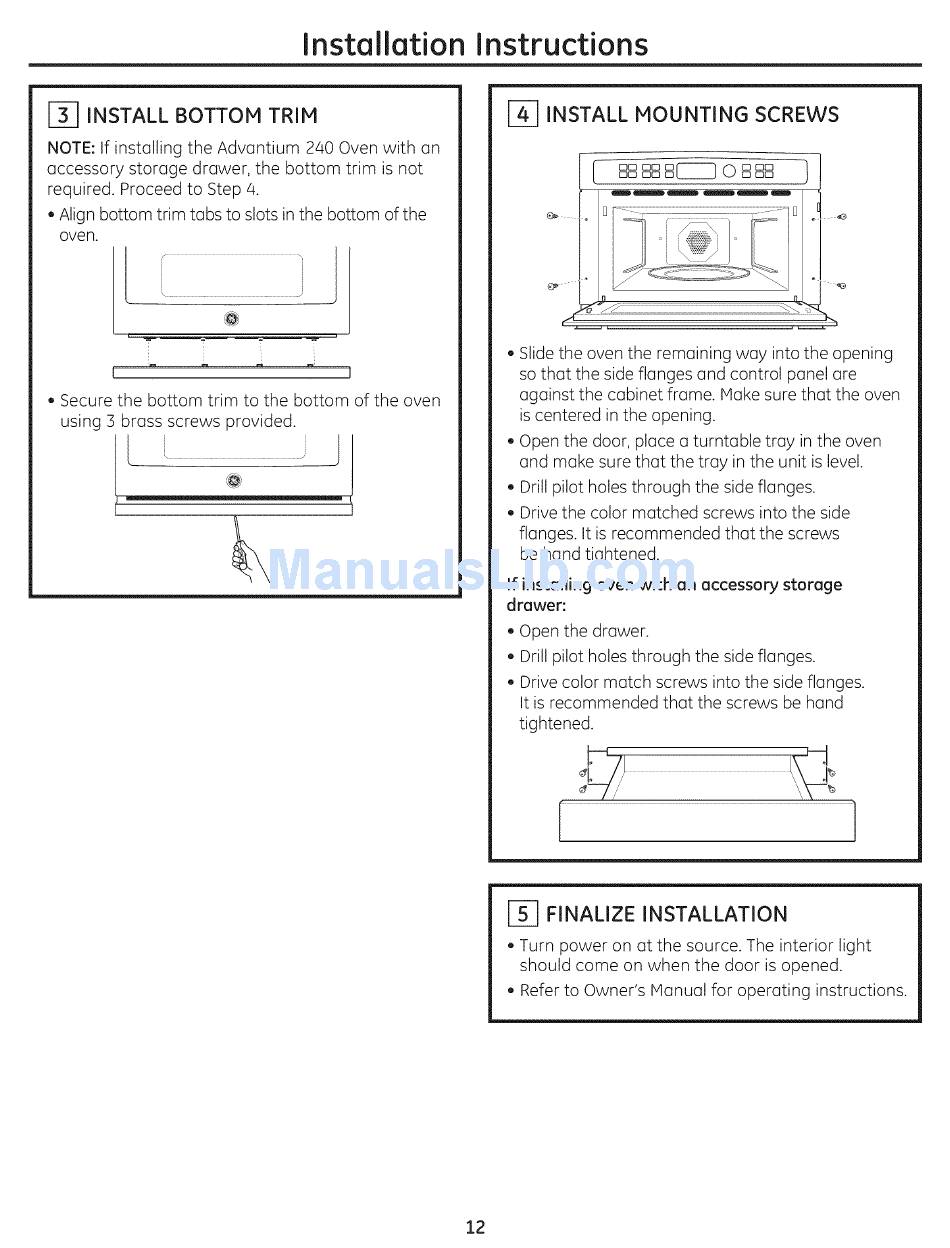

Installation Instructions
r3] INSTALL BOTTOM TRIM
NOTE: If installing the Advantium 240 Oven with an
accessory storage drawer, the bottom trim is not
required. Proceed to Step 4.
• Align bottom trim tabs to slots in the bottom of the
oven.
L-
_-_ INSTALL MOUNTING SCREWS
Slide the oven the remaining way into the opening
so that the side flanges and control panel are
against the cabinet frame. Hake sure that the oven
is centered in the opening.
Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
Drill pilot holes through the side flanges.
Drive the color matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
If installing oven with an accessory storage
drawer:
Open the drawer.
Drill pilot holes through the side flanges.
Drive color match screws into the side flanges.
It is recommended that the screws be hand
tightened.
"-7/ \ T -_
F 1
i-_ FINALIZE INSTALLATION
• Turn power on at the source. The interior light
should come on when the door is opened.
• Refer to Owner's Hanual for operating instructions.
3.2
