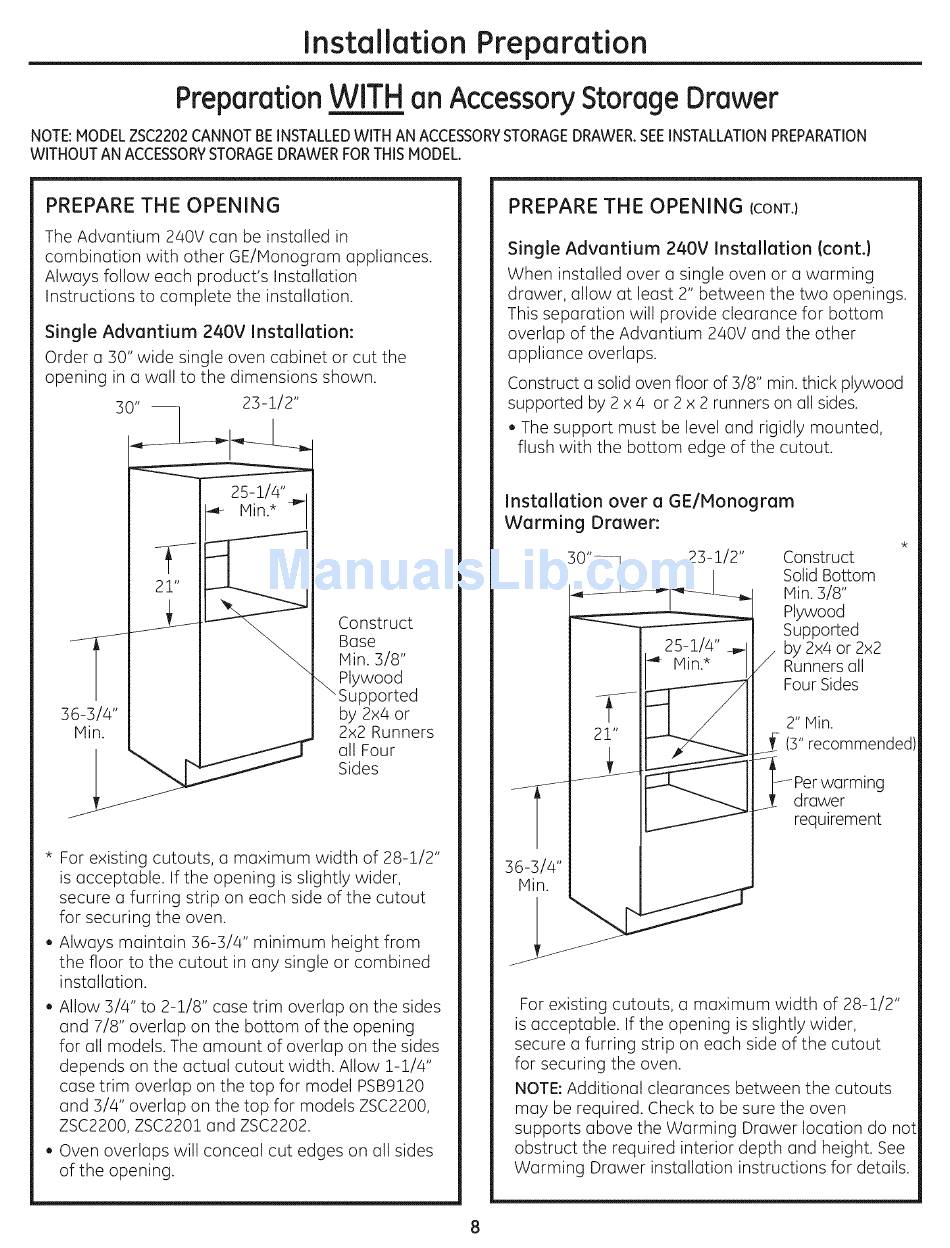

Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE:MODELZSC2202CANNOT BE INSTALLED WITH AN ACCESSORY S TORAGE DRAWER.SEEINSTALLATION PREPARATION
WITHOUTAN ACCESSORY S TORAGE DRAWERFORTHISMODEL.
PREPARE THE OPENING
The Advantium 240V can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 240V Installation:
Order o 30" wide single oven cabinet or cut the
opening in o wall to the dimensions shown.
30" 23-1/2"
25-1/4"
1/
21"
T
36-3/4"
Min.
Construct
Bose
Min. 3/8"
Plywood
Supported
by 2x4 or
2x2 Runners
oil Four
Sides
* For existing cutouts, o maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure u furring strip on each side of the cutout
for securing the oven.
. Always maintain 36-3/4" minimum height from
the floor to the cutout in any single or combined
installation.
• Allow 3/4" to 2-1/8" cose trim overlap on the sides
and 7/8" overlap on the bottom of the opening
for all models. The amount of overlap on the sides
depends on the actual cutout width. Allow 1-1/4"
case trim overlap on the top for model PSB9120
and 3/4" overlap on the top for models ZSC2200,
ZSC2200, ZSC2202 and ZSC2202.
• Oven overlaps will conceal cut edges on all sides
of the opening.
PREPARE THE OPENING
(CONT.}
Single Advantium 240V Installation {cont.)
When installed over o single oven or o worming
drawer, allow at least 2" between the two openings.
This separation will provide clearance for bottom
overlap of the Advuntium 240V and the other
appliance overlaps.
Construct u solid oven floor of 3/8" min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Installation over a GE/Monogram
Warming Drawer:
23-1/2" Construct
Solid Bottom
Min. 3/8"
Plywood
Supported
by 2x4 or 2x2
Runners all
Four Sides
2" Min.
(3" recommended
_g
drower
requirement
For existing cutouts, o maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure u furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer locution do no
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.
