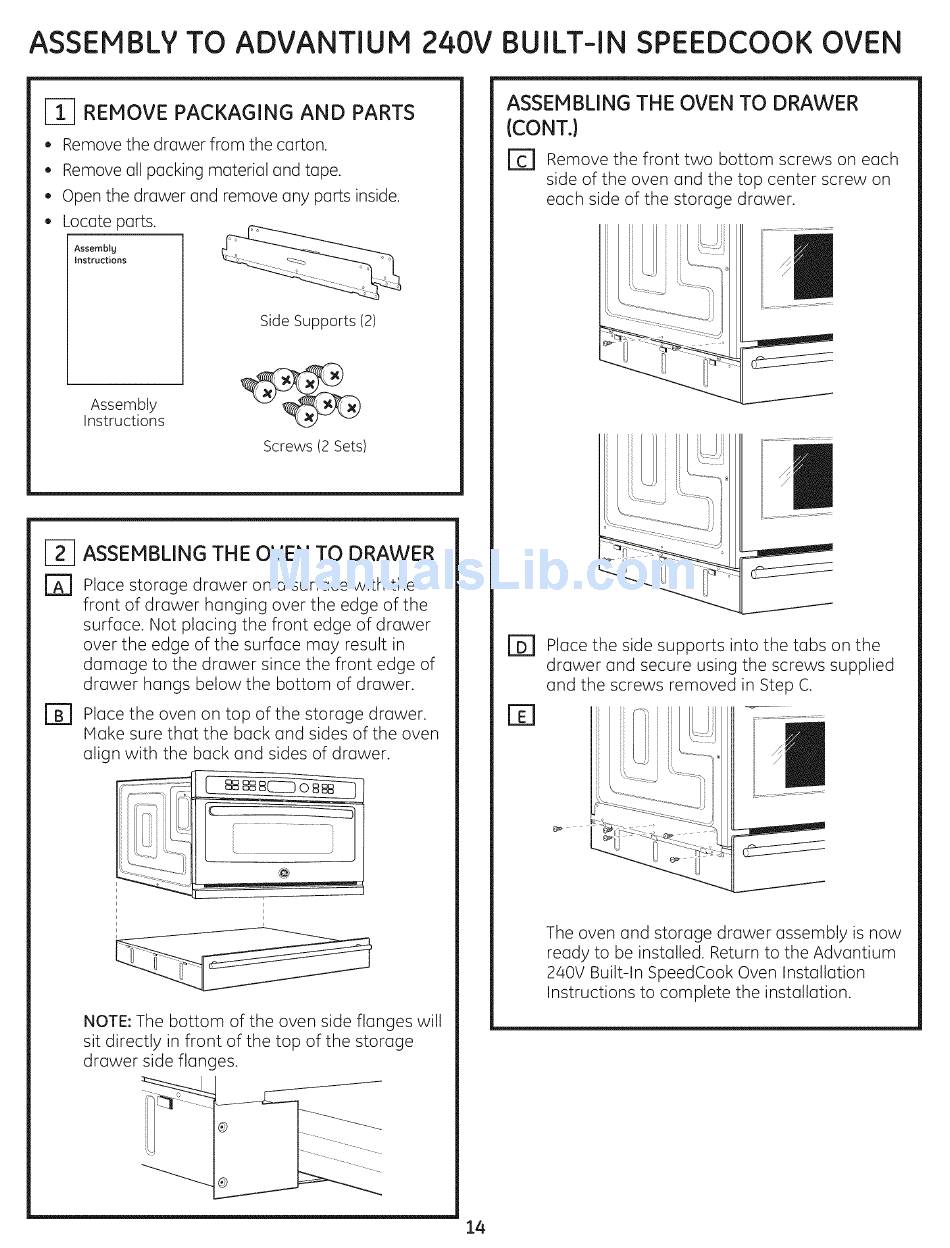

ASSEMBLY TO ADVANTIUM 240V BUILT-IN SPEEDCOOK OVEN
[-_ REMOVE PACKAGING AND PARTS
• Remove the drower from the corton.
• Remove oil packing material and tope.
Open the drawer ond remove ony ports inside.
Locote ports.
Assernblg
Instructions
Side Supports (2)
Assembly
Instructions
Screws (2 Sets)
[]
B]
ASSEMBLING THE OVEN TO DRAWER
Place storage drawer on a surface with the
front of drawer hanging over the edge of the
surface. Not placing the front edge of drawer
over the edge of the surface may result in
damage to the drawer since the front edge of
drawer hangs below the bottom of drawer.
Place the oven on top of the storage drawer.
Hake sure that the back and sides of the oven
align with the back and sides of drawer.
NOTE: The bottom of the oven side flanges will
sit directly in front of the top of the storage
drawer side flanges.
ASSEMBLING THE OVEN TO DRAWER
(CONT.)
r_ Remove the front two bottom screws on each
side of the oven and the top center screw on
each side of the storage drawer.
r6]
D
Place the side supports into the tabs on the
drawer and secure using the screws supplied
and the screws removed in Step C.
The oven and storage drawer assembly is now
ready to be installed. Return to the Advantium
240V Built-In SpeedCook Oven Installation
Instructions to complete the installation.
