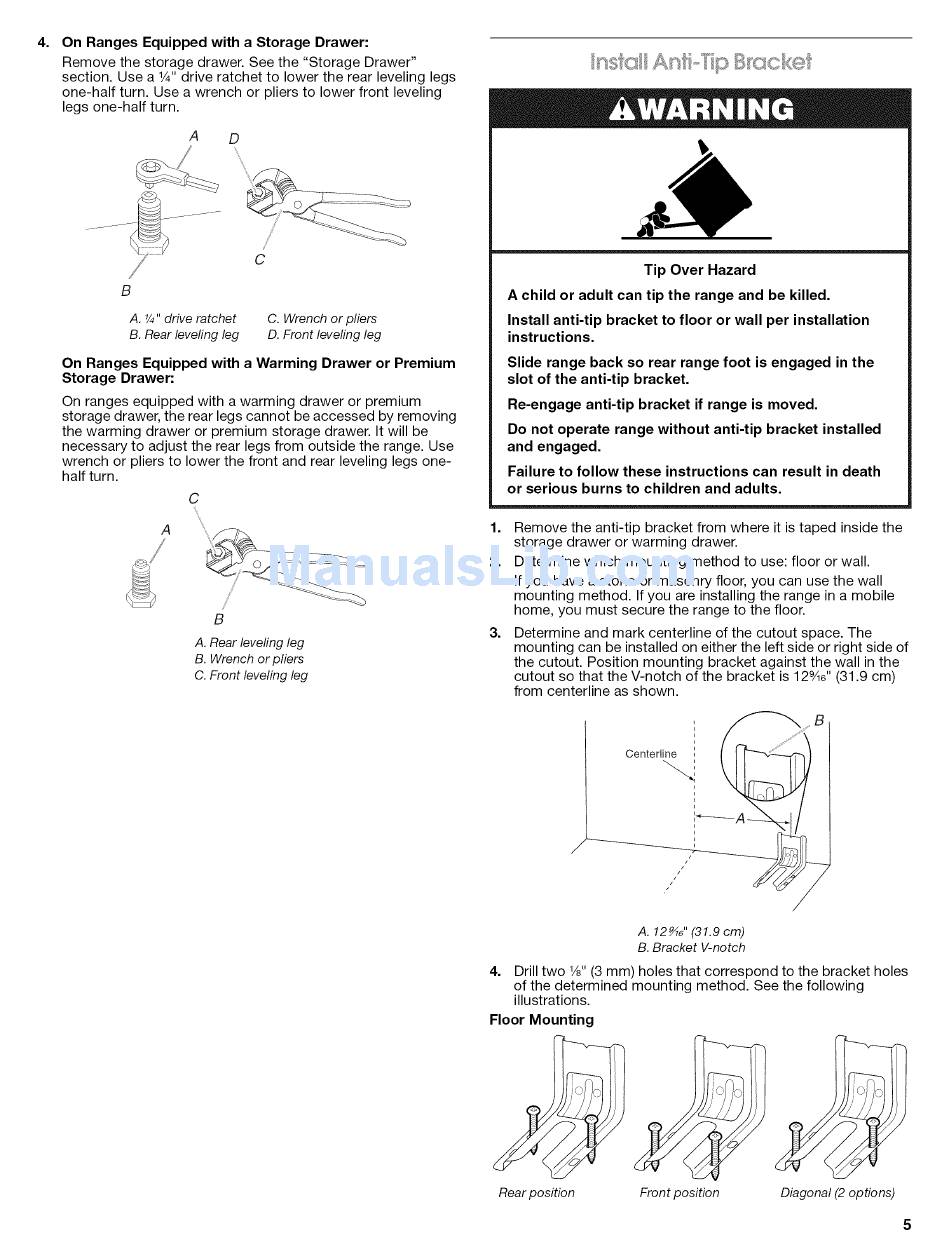

On Ranges Equipped with a Storage Drawer:
Remove the storage drawer. See the "Storage Drawer"
section. Use a 1¼,, d rive ratchet to lower the rear leveling legs
one-half turn. Use a wrench or pliers to lower front leveling
legs one-half turn.
A
D
...."2
.........
y///'
C
B
A. ¼" drive ratchet
B. Rear levering leg
C. Wrench or pliers
D. Front leveling leg
On Ranges Equipped with a Warming Drawer or Premium
Storage Drawer:
On ranges equipped with a warming drawer or premium
storage drawer, the rear legs cannot be accessed by removing
the warming drawer or premium storage drawer. It will be
necessary to adjust the rear legs from outside the range. Use
wrench or pliers to lower the front and rear leveling legs one-
half turn.
A
C
\
B
A. Rear levering leg
B. Wrench or pliers
C. Front leveling leg
nsks As'st
p B ccsck®
Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip
bracket to floor or wall per installation
instructions.
Slide range back so rear range foot is engaged
in the
slot of the anti-tip
bracket.
Re-engage
anti-tip
bracket
if range is moved.
Do not operate range without
anti-tip
bracket
installed
and engaged.
Failure to follow these instructions
can result in death
or serious
burns to children
and adults.
1=
2.
3.
Remove the anti-tip bracket from where it is taped inside the
storage drawer or warming drawer.
Determine which mounting method to use: floor or wall.
If you have a stone or masonry floor, you can use the wall
mounting method. If you are installing the range in a mobile
home, you must secure the range to the floor.
Determine and mark centerline of the cutout space. The
mounting can be installed on either the left side or right side of
the cutout. Position mounting bracket against the wall in the
cutout so that the V-notch of the bracket is 12%6" (31.9 cm)
from centerline as shown.
II
B
Centerlioe
!
J
J
__
/
A. 12_"
(31.9 cm)
B. Bracket V-notch
4=
Drill two 1/8"(3 mm) holes that correspond to the bracket holes
of the determined mounting method. See the following
Rear position
Front position
Diagonal (2 options)
illustrations.
Floor Mounting
