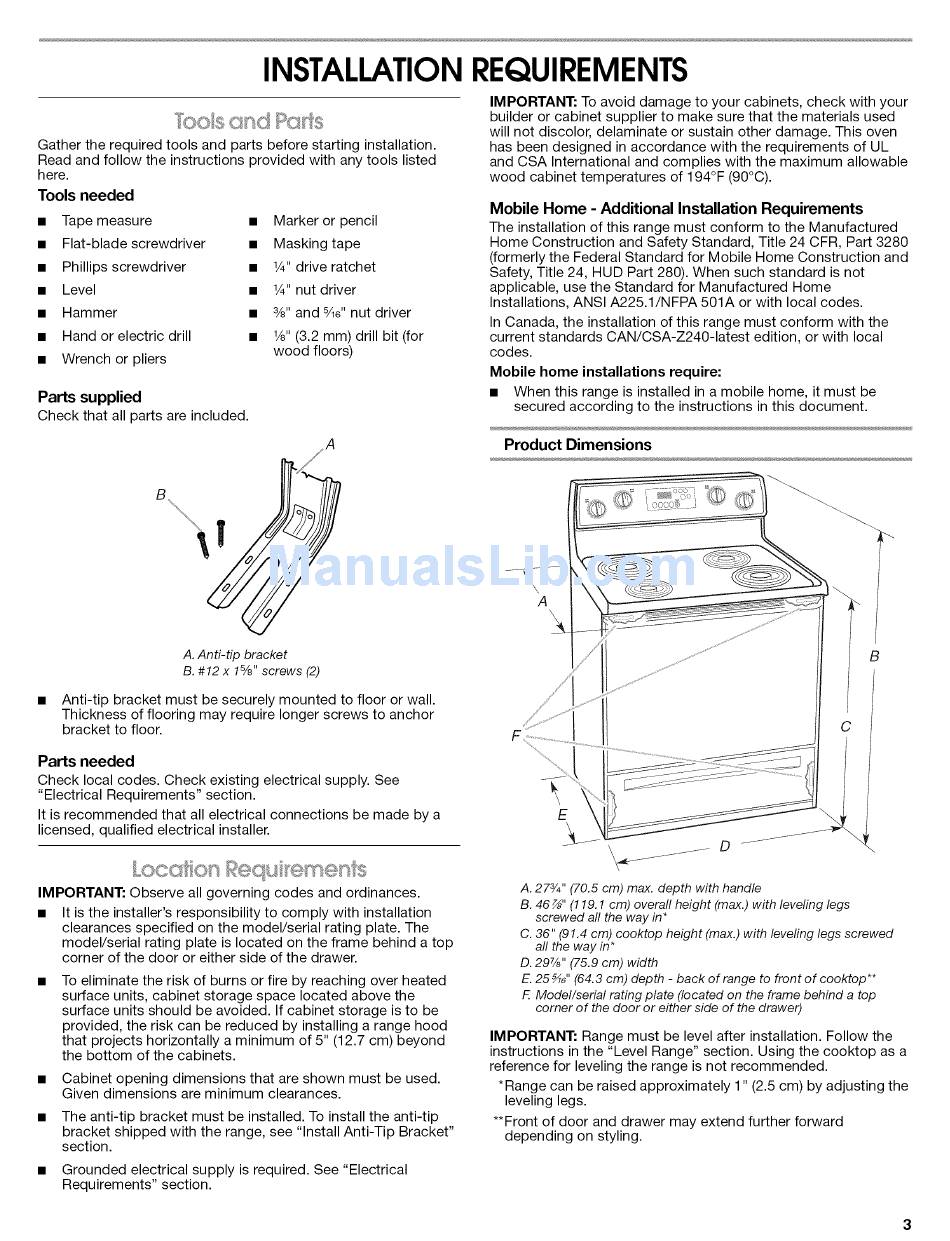

Installationrequirements - KitchenAid YKERS306BSS1 Installation Instructions Manual

30" (76.0 cm) freestanding electric ranges
Hide thumbs Also See for YKERS306BSS1:


Available languages
Table of Contents
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
Tools needed
Tape measure
Flat-blade screwdriver
Phillips screwdriver
Hand or electric drill
Wrench or pliers
Marker or pencil
Masking tape
1¼.drive ratchet
nut driver
3/8"and 8/ld' nut driver
1/8"(3.2 mm) drill bit (for
wood floors)
Parts supplied
Check that all parts are included.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures
of 194°F (90°C).
Mobile Home - Additional
The installation of this range must conform to the Manufactured
Home Construction
and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
Safety, Title 24, HUD Part 280). When such standard is not
applicable, use the Standard for Manufactured
Installations, ANSI A225.1/NFPA 501A or with local codes.
In Canada, the installation of this range must conform with the
current standards CAN/CSA-Z240-1atest
edition, or with local
Mobile home installations require:
When this range is installed in a mobile home, it must be
secured according to the instructions in this document.
Product Dimensions
A. Anti-tip bracket
B. #12 x 1%" screws (2)
Anti-tip bracket must be securely mounted to floor or wall.
Thickness of flooring may require longer screws to anchor
bracket to floor.
Parts needed
Check local codes. Check existing electrical supply. See
"Electrical Requirements" section.
It is recommended
that all electrical connections be made by a
licensed, qualified electrical installer.
IMPORTANT: Observe all governing codes and ordinances.
It is the installePs responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the frame behind a top
corner of the door or either side of the drawer.
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
The anti-tip bracket must be installed. To install the anti-tip
bracket shipped with the range, see "Install Anti-Tip Bracket"
Grounded electrical supply is required. See "Electrical
Requirements" section.
A. 273/4" (70.5 cm) max. depth with handle
B. 46 _" (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed
all the way in*
D. 29%" (75.9 cm) width
E. 25 _"
(64.3 cm) depth - back of range to front of cooktop**
F. Model/serial
rating plate (located on the frame behind a top
corner of the door or either side of the drawer)
IMPORTANT: Range must be level after installation. Follow the
in the "Level Range" section. Using the cooktop as a
reference for leveling the range is not recommended.
*Range can be raised approximately 1" (2.5 cm) by adjusting the
leveling legs.
**Front of door and drawer may extend further forward
depending on styling.
