Summary of Contents for AEMC PEL 102

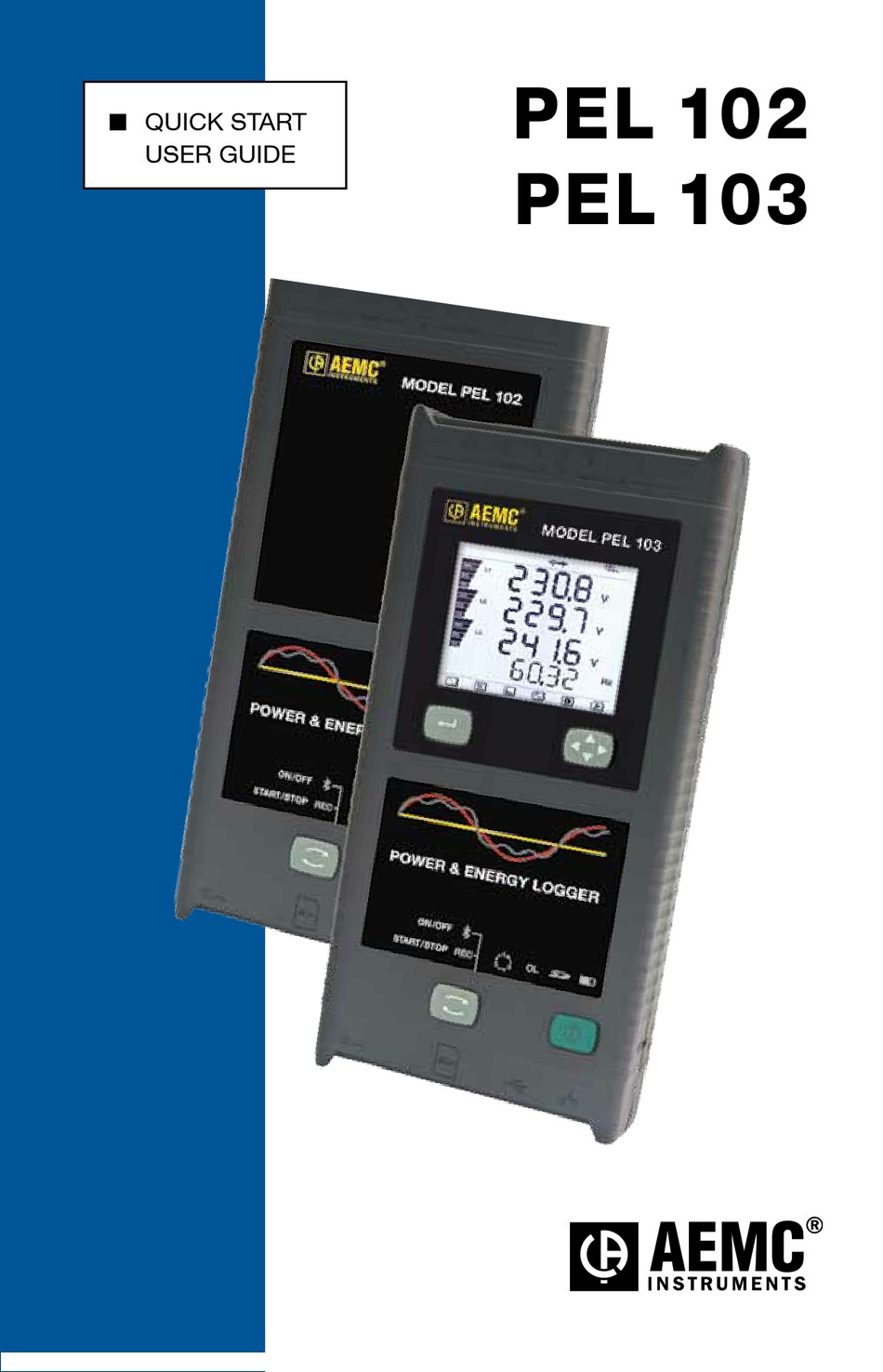

- Page 1 PEL 102 QUICK START USER GUIDE PEL 103...
-
Page 2: Statement Of Compliance
Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2137.51 / 2137.52 Model #: PEL 102 / PEL 103 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc. -
Page 3: Product Packaging
(1) Small Classic Tool Bag Cat. #2133.72 (1) of the following: (12) ID Markers Power & Energy Logger Model PEL 102 Cat. #2140.45 Power & Energy Logger Model PEL 103 Cat. #2137.51 / 2137.52 / 2137.61 / 2137.62 (3) MiniFlex MA193-10-BK ®... -
Page 4: Control Features
Control Features PEL 102 Same features as the PEL without the LCD, Enter or Navigation buttons. ENTER BUTTON (PEL 103 Only): Displays partial energies (long push). NAVIGATION BUTTON (PEL 103 Only): Enables browsing and the selection of displayed data. ON/OFF BUTTON: - To turn ON: Connect the power cord into an AC outlet. -
Page 5: Led Status
LED Status STATUS Green LED: Recording Status - LED blinks once per second every 5s: Logger in standby (not recording) - LED blinks twice per second every 5s: Logger in recording mode Blue LED: Bluetooth - LED OFF: Bluetooth OFF (disabled) - LED ON: Bluetooth ON (enabled - not transmitting) - LED blinks twice per second: Bluetooth ON (enabled - transmitting) Red LED: Phase Order... -
Page 6: Configuring The Instrument
SD-Card Insert the supplied SD-Card into the PEL. SD-Cards (up to 2 GB) and SDHC-Cards (4 GB up to 32 GB) are supported. • 2GB card supports a 4 week recording if harmonics are not recorded. • Hot extraction is possible when not recording. Opening the PEL Control Panel in DataView ®... - Page 7 Installation of the Leads and Current Sensors Twelve sets of color-coded rings and inserts are supplied with your PEL instrument. Use these ID markers to identify the leads and input terminals. • Detach the appropriate inserts from the color-coded marker and place them in the holes provided under the terminals (larger inserts for current terminals, smaller inserts for voltage terminals).
-
Page 8: Distribution Systems And Pel Hook-Ups
DISTRIBUTION SYSTEMS AND PEL HOOK-UPS NOTE: Ensure that the current arrow on the sensor is directed towards the load. This ensures proper phase angle for power measurements and other phase sensitive measurements. Single Phase 3-Wire Single Phase 2-Wire • Connect the terminal N test lead to Neutral •... - Page 9 NOTE: Ensure that the current arrow on the sensor is directed towards the load. This ensures proper phase angle for power measurements and other phase sensitive measurements. 3-Phase 3-Wire Y 3-Phase 3-Wire Y (2 current sensors) (3 current sensors) • Connect the terminal V1 test lead to L1 •...
- Page 10 NOTE: Ensure that the current arrow on the sensor is directed towards the load. This ensures proper phase angle for power measurements and other phase sensitive measurements. 3-Phase 4-Wire Open ∆ 3-Phase 4-Wire ∆ • Connect the terminal N test lead to Neutral •...
-
Page 11: Repair And Calibration
If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. - Page 12 02/13 99-MAN 100372 v2 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
