Installation Instructions

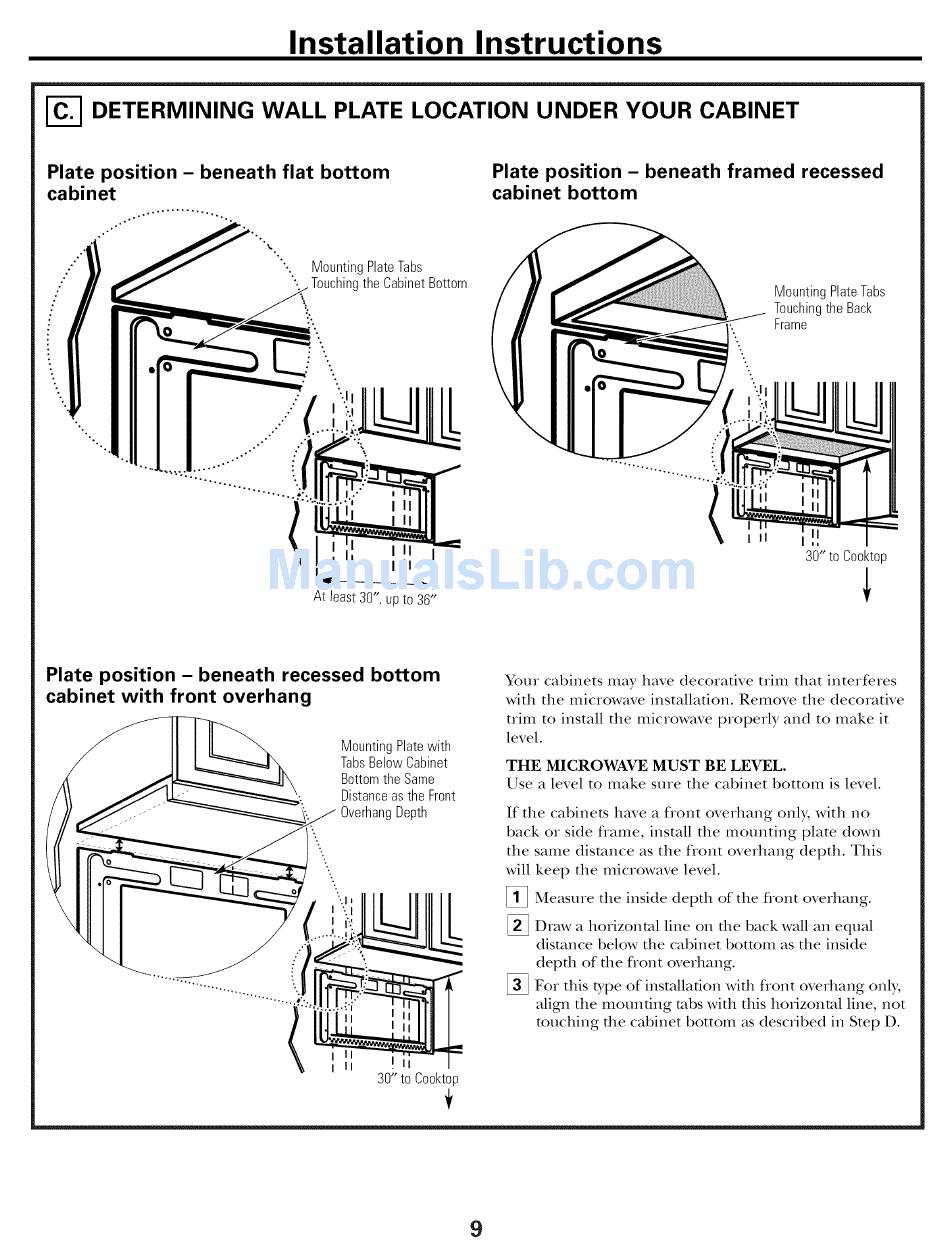

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
• °.,,, .......... ,,,,,
.o
"%
*÷
÷%
Mounting PlateTabs
the CabinetBottom
At least 30", up to 36"
Plate position - beneath framed recessed
cabinet bottom
Mounting PlateTabs
Touchingthe Back
Frame
L
ii
30" to Cooktop
Plate position - beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelowCabinet
Bottomthe Same
Distanceas the Front
Overhang Depth
..
\
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level•
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a flont overhang only, with no
back or side flame, install the mounting plate down
the same distance as the flont overhang depth. This
will
[]
%
%
keep the microwave level.
Measure the inside depth of the flont overhang.
Draw a horizontal line on file back wall an equal
distance below the cabinet bottom as the inside
depth of the flont overhang.
For this type of installation with flont overhang only,
align the mounting robs with tiffs horizontal line, not
touching the c_fl)inet bottom as described in Step D.
II
II
30" to Cooktop
÷
9
