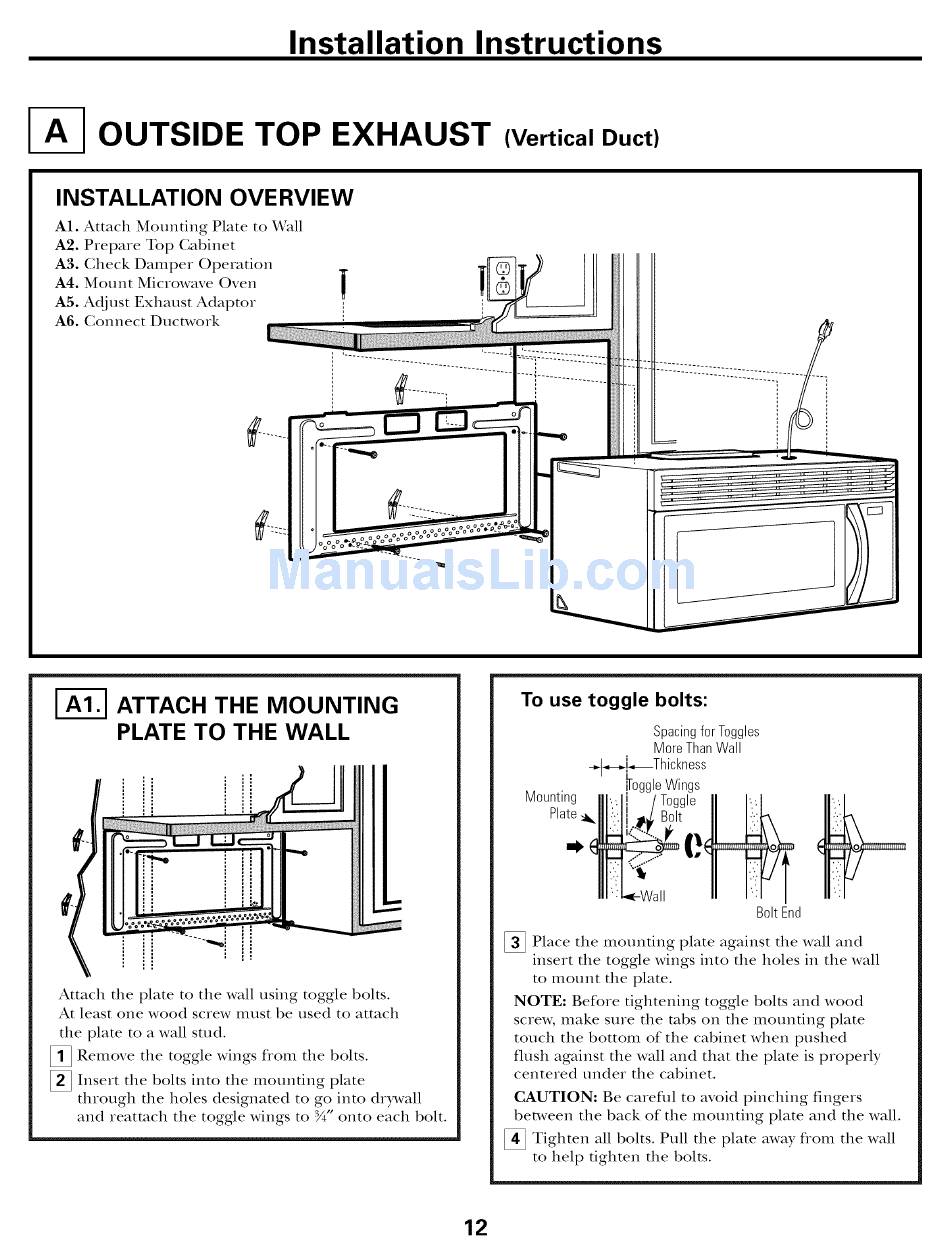

Installation Instructions
OUTSIDE TOP EXHAUST
(Vertical Duct)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Piepare Top Gabinet
A3. Gheck Damper Opmation
A4. Mount Microwave Oven
A5. Adjust Exhaust Adaptor
A6. Gonnect Ductwork
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
====
\
Attach the plate to the wall using toggle bolts.
At least one wood screw illust be used to attach
the plate to a wall stud.
[]Remove the toggle wings flom the bolts.
_ Insert the bolts into the mounting plate
thFough the holes designated to go into drDvall
and reatmch the toggle wings to :_" onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
+l_,.[_,_Th ickness
Wings
Mounting
Plate_.
Bolt End
_ Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the robs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careflfl to avoid pinching fingers
between the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away fiom the wall
to help tighten the bolts.
12
