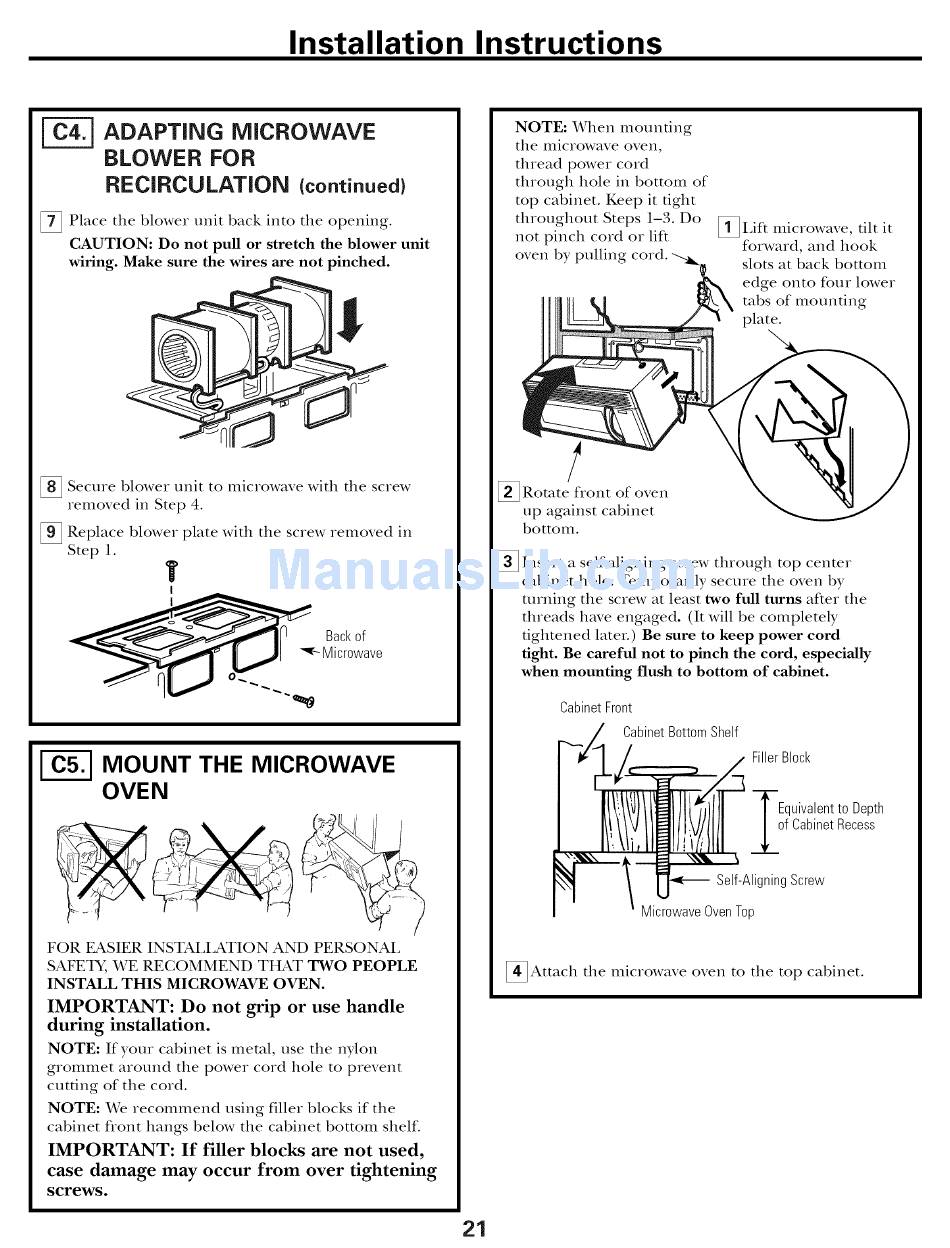

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR
RECIRCULATION (continued)
]Place tile blower unit back into tile opening.
CAUTION: Do not pull or stretch the blower unit
wiring, Make sure the wires are not pinched,
]Secure blower unit to microwave with the screw
removed in Step 4.
Replace blower plate with the screw removed in
Step l.
T
I
_.___ Back of
Microwave
MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTAI,I,ATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using fillet blocks if the
cabinet flont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used,
case damage may occur from over tightening
screws.
NOTE: When mounting
tile microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it fight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling cord.
[]Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
/
_ Rotate flont of oven
up against cabinet
bottom.
_ Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
6ghtened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
CabinetFront
CabinetBottomShelf
FillerBlock
-3_oEquivalentto Depth
f CabinetRecess
Self-AligningScrew
MicrowaveOvenTop
_Attach the microwave oven to the top cabinet.
21
