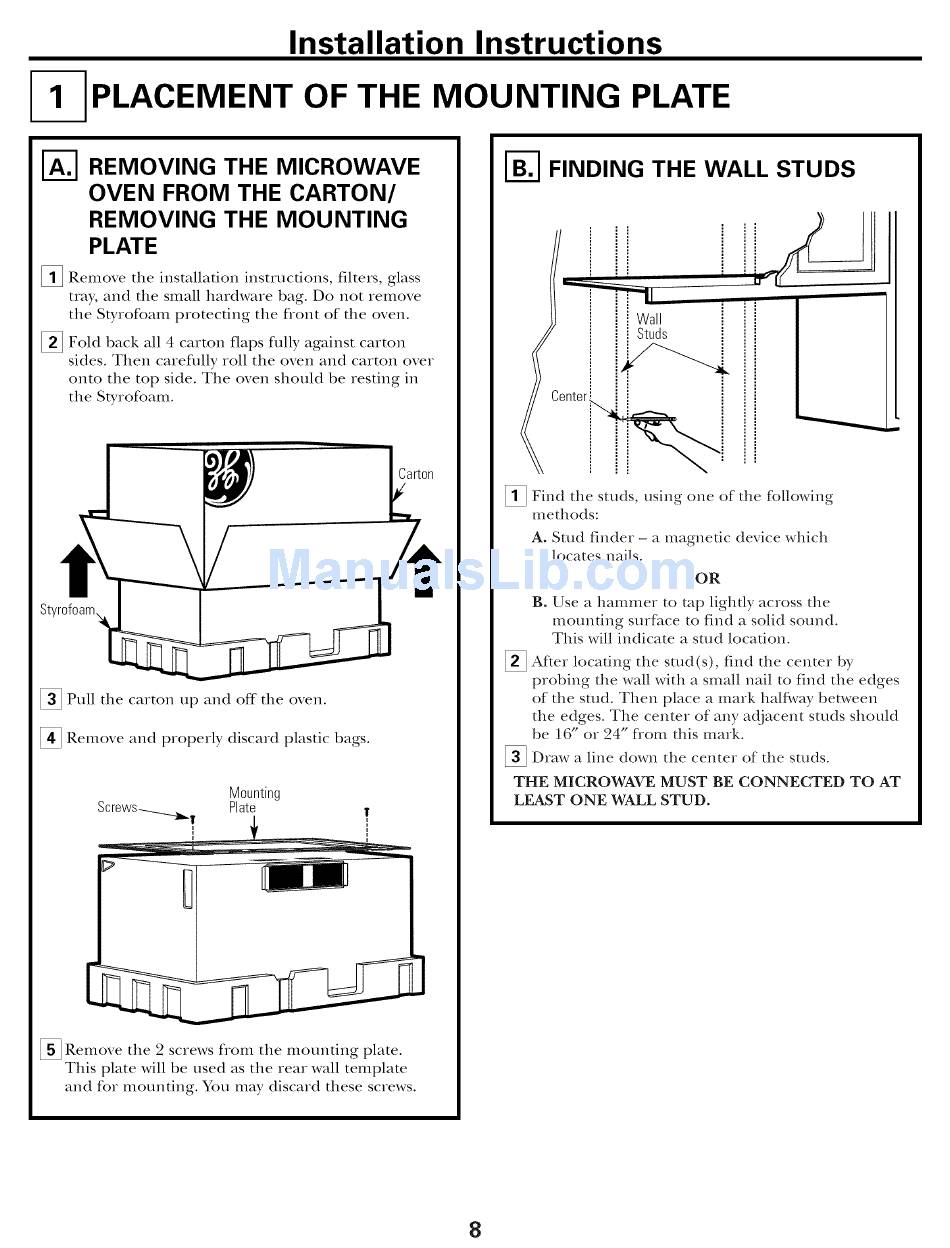

[ PLACEMENT OF THE MOUNTING PLATE
REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
[]Remove the installation insttuctions, filtms, glass
t_ay, and the small hardware bag. Do not temove
the Stytofoam protecting the flont of the oven.
[] Fold back all 4 catton flaps fully against carton
sides. Then carefltlly roll the oven and catton over
onto the top side. The oven should be resting in
the Styrofoam.
[]Pull the carton tap and off the oven.
[] Remove and properly discard plastic bags.
Mounting
Plate
T
_ Remove the 2 sctews fiom the mounting plate.
This plate will be used as the rear wall template
and for mounting. You may discard these screws.
I-_ FINDING THE WALL STUDS
Wall
= Studs
_Find the studs, using one of the following
methods:
A. Stud finder - a magnetic device which
locates nails.
OR
B. Use a hammer to mp lighdy across the
mounting surface to find a solid sound.
This will indicate a satd loca6on.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark half\,vay between
the edges. The center of any adjacent surds should
be 16" or 24" fiom this mark.
_Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.
