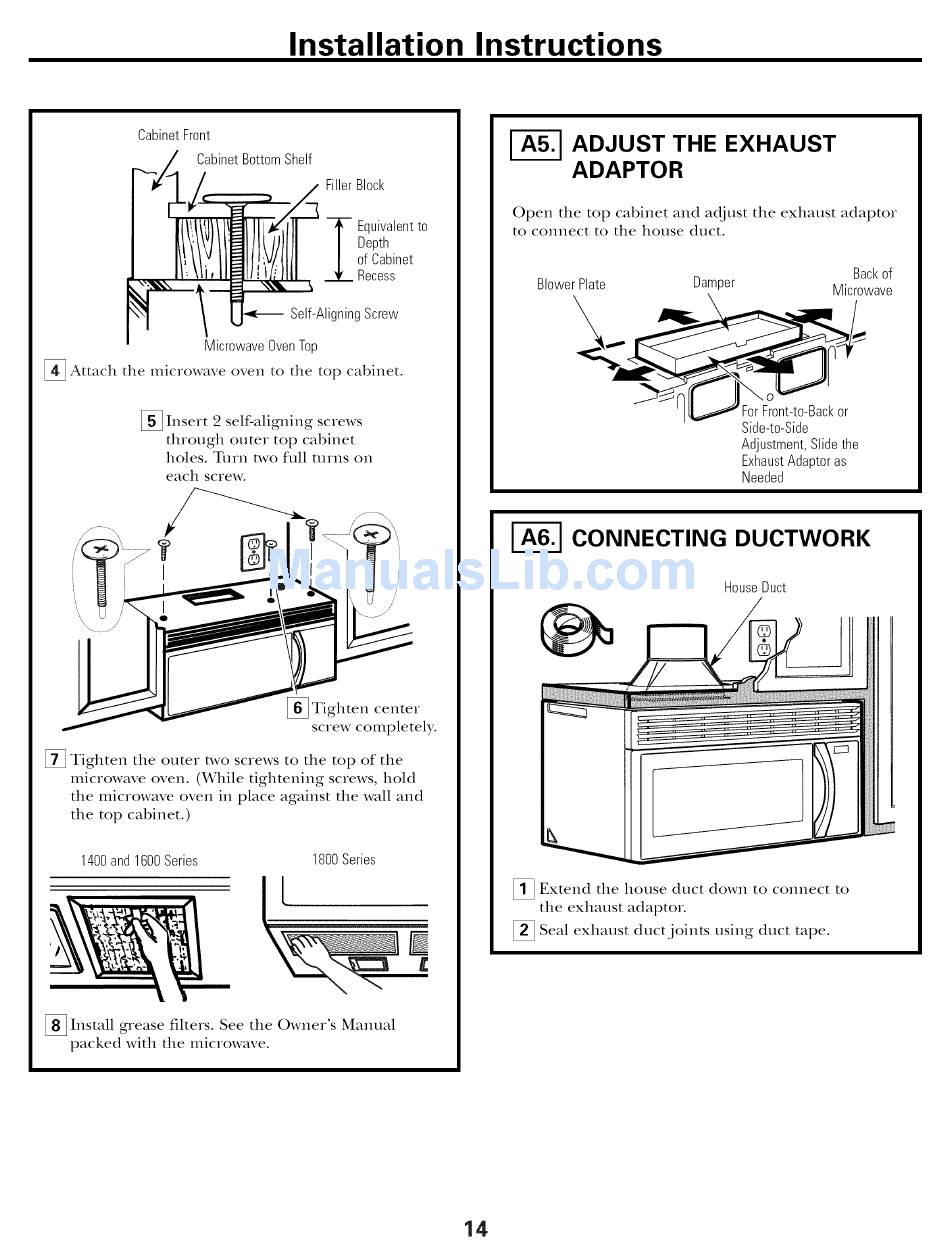

Installation Instructions
CabinetFront
CabinetBottomShelf
FillerBlock
-_ Equivalentto
Depth
of Cabinet
Recess
Self-AligningScrew
MicrowaveOvenTop
[]Attach the microwave oven to the top cabinet°
[] Insert
2 self-aligning
screws
through outer top cabinet
holes. Turn two flfll turns on
each screw.
[
[]Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.
1400and 1600Series 1800Series
[] Install grease filters. See the Owner's Manual
packed with the microwave.
I-_ ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Backof
Blower Plate Damper Microwave
Side-to-Side
Adjustment,Slidethe
Exhaust A daptor as
Needed
I-_ CONNECTING DUCTWORK
HouseDuct
_1_ Extend the house duct down to connect to
the exhaust adaptor.
[] Seal exhaust duct joints using duct tape.
14
