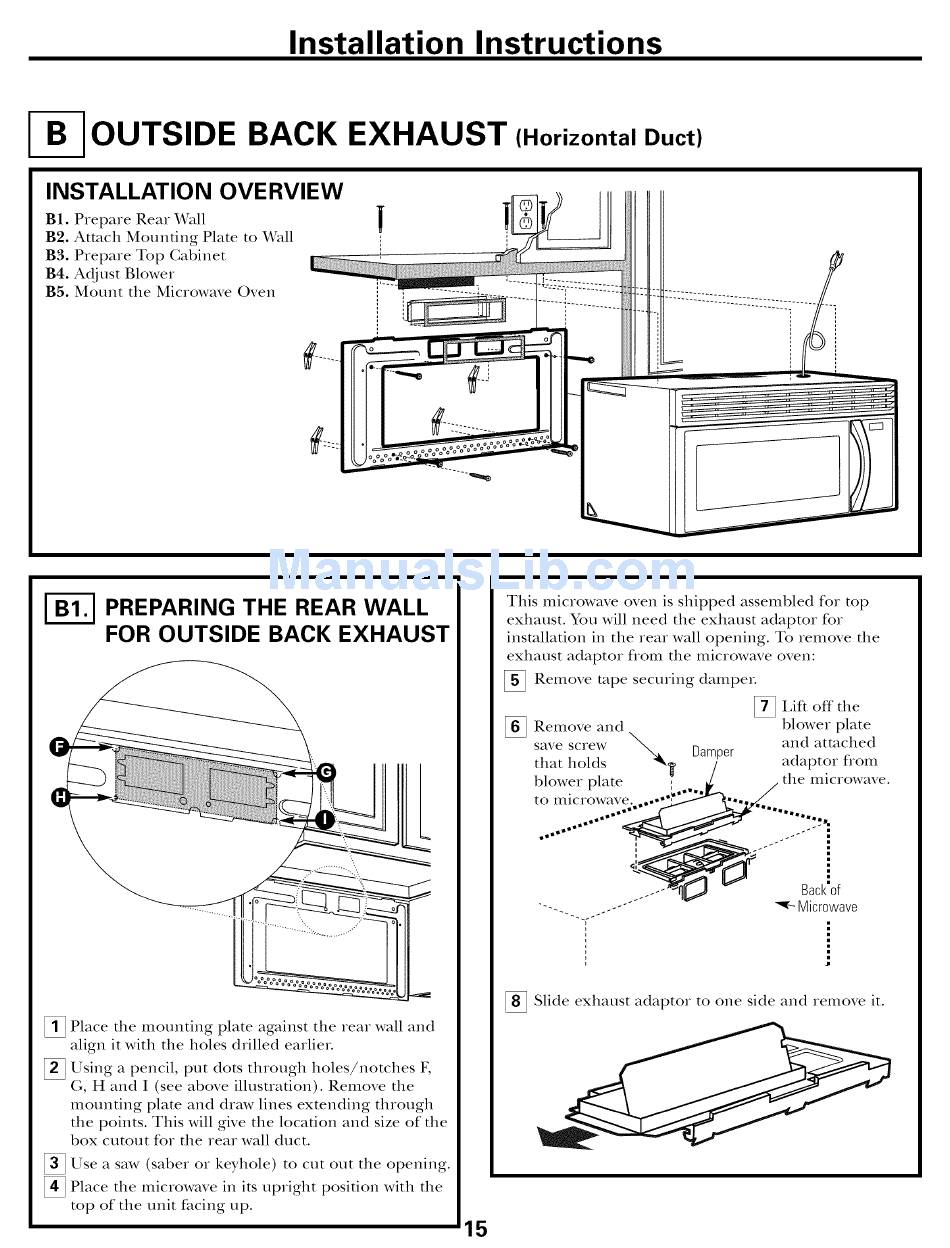

Installation Instructions
OUTSIDE BACK EXHAUST
(Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to _rall
B3. Prepare Top Cabinet
B4. Adjust Blower
BS. Mount the Microwave Oven
I-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
_!_ Place the mounting plate against the rear wall and
align it with the holes drilled earlier.
[] Using a pencil, put clots through holes/notches F,
G, H and I (see above illusuadon). Remove the
mounting plate and draw lines extending through
the points. This will give the location and size of the
box cutout for the rear wall duct.
[] Use a saw (saber or keyhole) to cut out the opening.
_!_ Place the microwave in its upright position with the
top of the unit facing tap.
This microwave oven is shipped assembled for top
exhaust. You will need the exhaust adaptor for
installation in the rear wall opening. To remove the
exhaust adaptor flom the microwave oven:
Remove rope securing dampm.
Lift off the
Remove and blower plate
save screw _ _ and attached
• " uamper
that holds "_, / adaptor flom
blower plate ,, ./ the microwave.
to microwave ..... _..., ..,_
......... -"" _ Microwave
_ Slide exhaust adaptor to one side and remove it.
