Installation Instructions

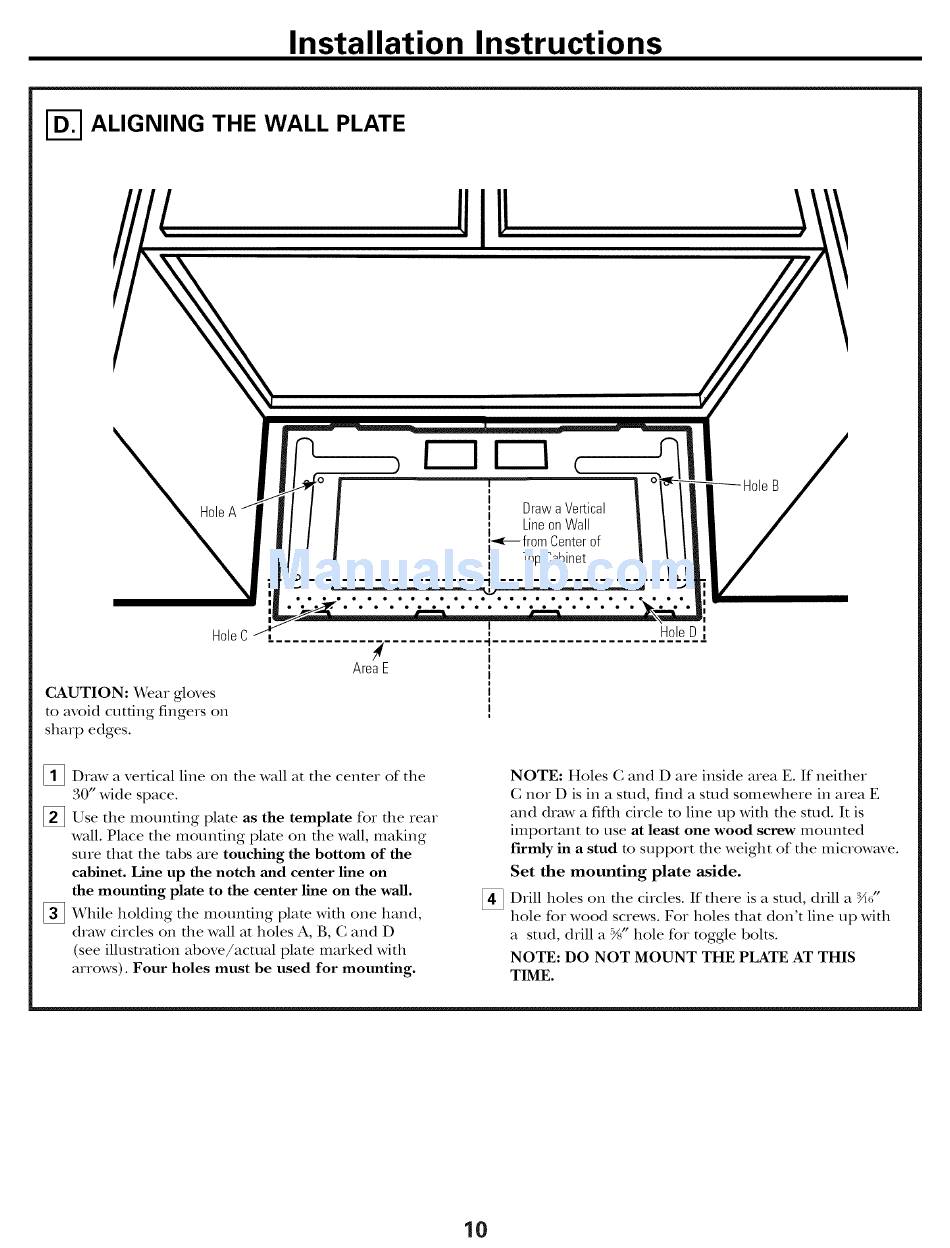

ALIGNING THE WALL PLATE
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
[ Draw a Vertical
I
, Line onWall
I-<---- fromCenterof
I •
I TopCabinet
I
1'
HoleD I
[]Draw a vertical line on file wall at the center of the
30" wide space.
[]Use the mounting plate as the template fox the tear
waU. Place the mounting plate on tim waU, making
sure that the tabs ate touching the bottom of the
cabinet. Line up the notch and center line on
the mounting plate to the center line on the wall.
[] While holding the mounting plate with one hand,
draw citcles on the wall at holes A, B, C and D
(see illusuafion above/acatal plato marked with
arrows). Four holes must be used for mounting.
NOTE: Holes C and D are inside area E. If neither
C nor D is in a sutd, find a sutd somewhete in area E
and draw a fifth circle to line tap with the stud. It is
impotmnt m use at least one wood screw mounted
firmly in a stud m suppott the weight of the microwave.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a _X_/'
hole for wood sctews. For holes that don't line up with
a satd, drill a %" hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
10
