UP300AC
INSTRUCTION MANUAL

Advertisement

   Related Manuals for Ultra Power UP300AC Touch

   Summary of Contents for Ultra Power UP300AC Touch

  • Page 1: Instruction Manual

    UP300AC INSTRUCTION MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction....................Special Features..................Warning and Safety Notes................ Lithium Battery Connection Diagram............Operation Diagram - Homepage............. Operation Diagram - Setting, Start, Complete......... Lithium Battery Meter................System Set up..................Error Message..................Warranty and Service................

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing UP300AC Touch charger by Ultra Power. This product is a rapid charger with a high performance microprocessor and specialized operating software. Please read this entire instruction manual completely and attentively before using this product, as it covers a wide range of information on operation and safety.

  • Page 5

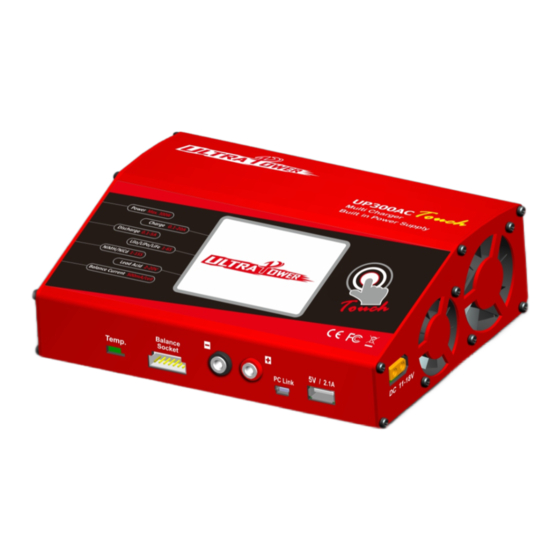

    INTRODUCTION Color LCD Touch Screen Balance PC Link Socket Temp. Sensor Battery Sockets DC Output 5V, 2.1A AC Input 100-240V AC Cooling fan with Temp. Sensor Control DC Input 11-18V Cooling fan with Temp. Sensor Control...

  • Page 6: Special Features

    SPECIAL FEATURES Optimized Operating Software UP300AC Touch features the AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion. It can disconnect the circuit automatically and alarm once detecting any malfunction.

  • Page 7

    SPECIAL FEATURES Data Store/Load The charger can store up to 6 different charge/discharge proles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting. Terminal Voltage Control(TVC) The charger allows user to change the end voltage.

  • Page 8: Warning And Safety Notes

    WARNING AND SAFTEY NOTE These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a re. Also read the chapter before you begin. Never leave the charger unsupervised when it is connected to its power supply.

  • Page 9

    WARNING AND SAFTEY NOTE Batteries installed in a device or which are electrically linked to other components Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process Please bear in mind the following points before commencing charging: Did you select the appropriate program suitable for the type of battery you are charging?

  • Page 10

    WARNING AND SAFTEY NOTE Charging During charge process, a specic quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer.

  • Page 11

    WARNING AND SAFTEY NOTE Discharging The main purpose of discharging is to clean the residual capacity of the battery, or to reduce the battery' voltage to a dened level. The same attention should be paid to the discharging process as the charging process.

  • Page 12: Lithium Battery Connection Diagram

    LITHIUM BATTERY CONNECTION DIAGRAM UP300AC Touch charger come with the built in switch mode power supplies. You can connect the AC power cord directly to the main AC socket (100-240V AC), or you can connect an external power supply (11-18V) or 12V car battery to the DC input socket.

  • Page 13

    6. When charging is nished disconnect the balance lead from the board, then disconnect the battery main leads from the charging lead. This diagram shows the correct way to connect your battery to the UP300AC Touch while charging in the balance charge program mode only. WARNING:...

  • Page 14: Operation Diagram - Homepage

    OPERATION DIAGRAM - HOMEPAGE BATTERY TYPE ① LiPo LiFe LiIon NiMH NiCd SYSTEM PROGRAM BATT. METER ② ③ ④ ① Battery Type selection buttons - Select which battery type you want charge ② SYSTEM - System setting, safety protection and charger parameter settings are here.

  • Page 15: Operation Diagram - Setting, Start, Complete

    OPERATION DIAGRAM - SETTING, START, COMPLETE Here are the detailed procedures to make the charger work. All the screens and operations will take Channel 1 and LiPo battery as example. 1. Battery type There are 3 Li-xx battery types in battery type area.

  • Page 16: Charging Program

    OPERATION DIAGRAM - SETTING, START, STOP Charging Program Depends on different battery type, the operation programs are different. Batt Operation Description Type Program This charging mode is for charging LiPo/LiFe/LiIon battery in normal mode. CHARGE This mode is for discharging LiPo/LiFe/LiIon battery. DISCHARGE This program is for charging or discharging lithium battery which will not be STORAGE...

  • Page 17

    OPERATION DIAGRAM - SETTING, START, STOP If you want change termination voltage level, please touch “MORE” to go to termination voltage level setting page. ITEM SELECTION DESCRIPTION This is the voltage level that UP300AC Touch will stop TERMINAL LiPo 4.18-4.3V/Cell charging the battery. VOLTAGE Lilon 4.08-4.2V/Cell...

  • Page 18

    OPERATION DIAGRAM - SETTING, START, STOP 3. Charging status monitor When the charger is working, the users could check the real time status of charging capacity, overall voltage and each cell voltage, charging time, external and internal temperature easily. What's more, it can also display the voltage in a graphic which helps the user monitor the charging progress all the time.

  • Page 19: Lithium Battery Meter

    LITHIUM BATTERY METER The user can check lithium battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage; and can check Nickel and Pb battery's total voltage. Touch “BATT. METER” to enter voltage meter program. Concerning to Lithium battery, please connect the battery to the charger main battery lead to battery socket and balance wires to balance socket.

  • Page 20: System Set Up

    Touch will monitor input voltage during charging. When the INPUT LOW input DC voltage is lower than the voltage level you set here, UP300AC Touch will stop charging and the beep will work to alert user. The battery is on the cyclic process of charge and discharge can often become warm after charge or discharge period.

  • Page 21

    SYSTEM SET UP SYSTEM INPUT LOW 11.0V REST TIME 10min LCD LIGHT BUZZER SAFETY RESET ABOUT BACK OPTION SYSTEM ITEM SELECTION DESCRIPTION This program sets the maximum charge capacity that will be supplied to the battery during charge. If the delta peak voltage CAPACITY is not detected nor the safety timer expired by any reason, this CUT OFF...

  • Page 22: Error Message

    ERROR MESSAGE ERROR MESSAGE It incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error the screen will display the cause of error and emit an audible sound. ERROR MESSAGE EXPLANATION "...

  • Page 23: Warranty And Service

    WARRANTY AND SERVICE Thank you for purchasing UP300AC Touch charger by Ultra Power. We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase.

  • Page 24

    Manufactured by Ultra Power Technology Limited www.ultrapower.hk E-mail: info@ultrapower.hk...
