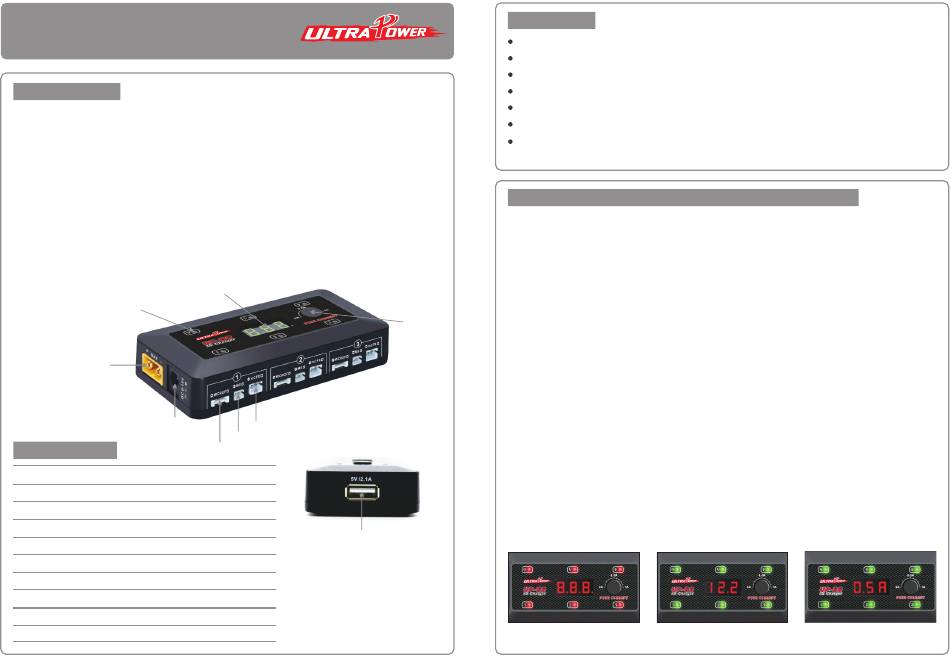

Ultra Power UP-S6 Instruction Manual

UP-S6 INSTRUCTION MANUAL
LIPO/LIHV SMART CHARGER FOR 1S BATTERY
INTRODUCTION
Thank you for choosing Ultra Power UP-S6 Charger for charging 1S battery. This
unit is simple to use but its operation does require some knowledge on the part of
the user. Please read this entire operating manual completely and attentively before
using this product, as it covers a wide range of information on operating and safety.

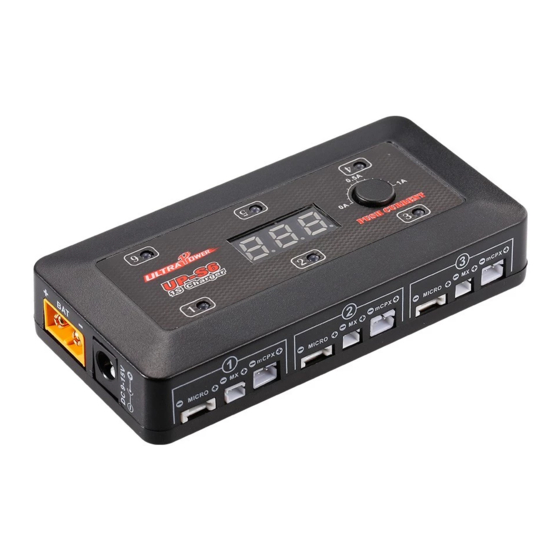

UP-S6 employs the circuit that features 6 totally independent but identical power
outputs which are powered 4.35W each. It is designed for charging single cell LiPo
and LiHV. Insert the battery lead to the right connector in each port, the charger can
charge 6 batteries at the same time. The charging current can be adjusted from 0.1-
1.0A and also support 5V, 2.1A USB charging. The charging status can be displayed
in digital segment LED Indicators.
Segment LED Display
LED Indicators
Battery
Sockets
DC
Input
9-15V
SPECIFICATION
DC input voltage 9.0V-15.0V
Charge power Max. 4.35W x6, ±10%
Charge current (0.1-1.0A) x6, ±10%
Battery type LiPo/LiHV
Battery cell count 1cell
Indication LED light
Support battery port Micro, MX, mCPX
Support USB charge port 5V/2.1A
Net weight 70g
Dimension 100x50x22mm
mCPX
MX
MICRO
DC
Output
5V/2.1A
- 1 -
FEATURES
Six independent ports can be used at the same time
Three different kinds of battery connectors in each port
Six independent charging circuits
LED and audible sound indicate charging status
Adjustable charging current from 0.1-1.0A
USB port (5V/2.1A) for charging iPad, mobile phones, digital cameras, etc.
Maximum protection: battery reverse polarity protection, battery over voltage
protection and DC input voltage protection
CHARGE PROCEDURES(Connection and self-checking)
1．Correctly connect with DC Input or battery input.
2. After powered on, UP-S6 will start self-checking. All six indicators will light on with
red and all LED segment display will light on as number 888.
3. All indicators will change the color from red to green and the LED segment display
will show voltage value of power input.
4. Check each channel, the indicators will light on one by one from channel 1 to
channel 6, If all check results ok, the 6 indicators will light off after self-checking
Button
5. The LED segment display will show the setting current value. And UP-S6 is ready
to charge batteries.
6. The user can change the current setting and battery setting before battery
connected. Please refer to chapter "Charge Setting" with detailed process.
7. After setting done, the user can connect with 1s batteries. Once any channel
connected, UP-S6 will start to charging automatically with flashing red color
indicator. The flash frequence is different according to different battery types
(LiHV is faster than LiPo).
8. During charging, the display will show the battery type and battery voltage of each
working channel circularly.
9. Once any channel fully charged, the indicator of this channel will change to green
color and stop flashing.
