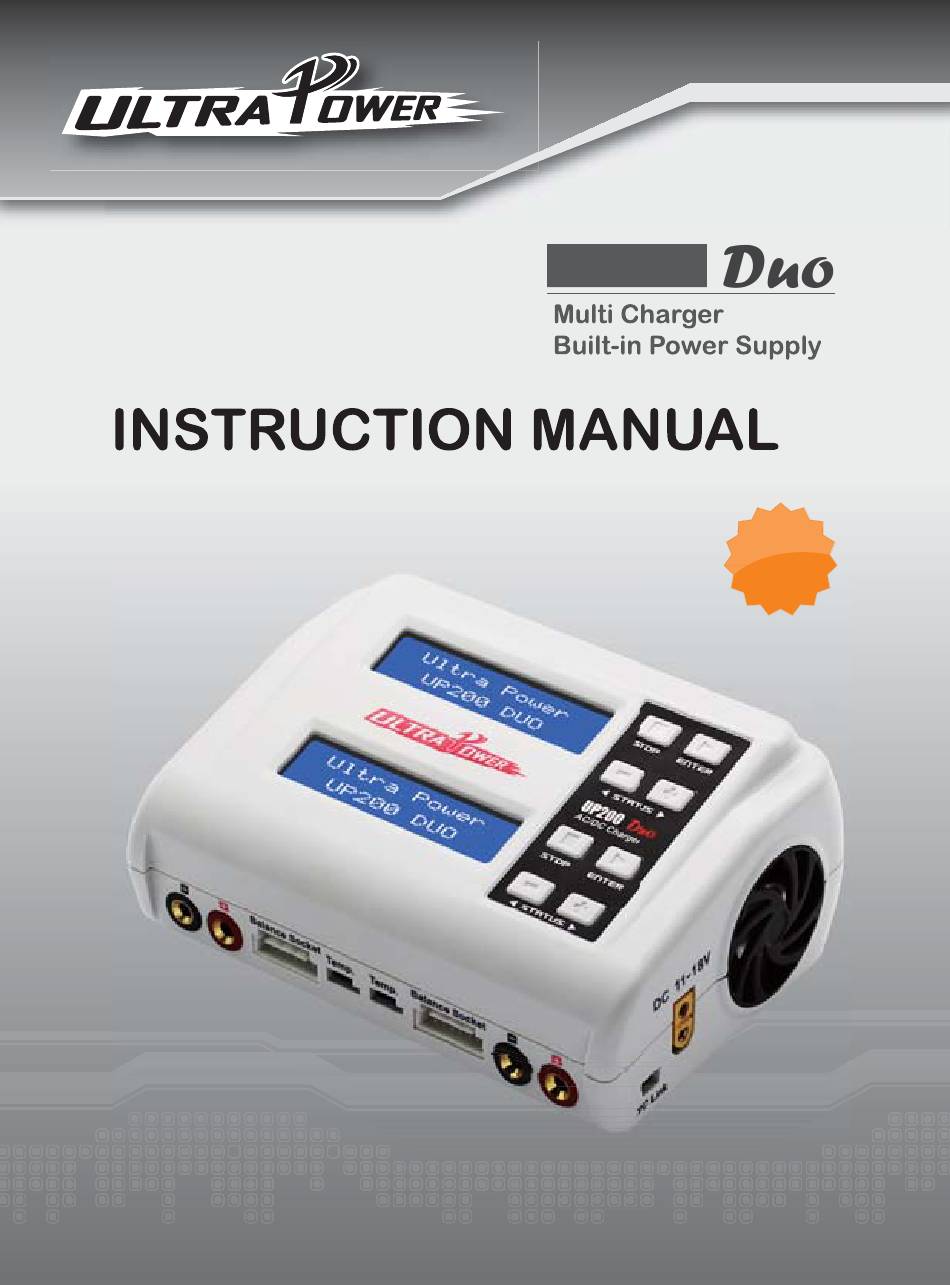

- Page 1 UP200 200W 200W...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warning and Safety Notes................2 Introduction....................4 Specification....................4 Special Features..................6 Warning and Safety Notes................8 Lithium Battery Connection Diagram............10 Program Flow Chart................12 Lithium Battery(LiPo/LiFe/LiIon/LiHV)Program........13 Charging Lithium Battery at Balance Mode..........13 Charging of Lithium Battery..............14 'Fast' Charging of Lithium Battery............15 'Storage' Control of Lithium Battery............16 Discharging Lithium Battery..............17 Pb Battery Program.................18 Charging of Pb Battery................18... -
Page 4: Warning And Safety Notes
WARNING AND SAFTEY NOTE These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Also read the chapter before you begin. Never leave the charger unsupervised when it is connected to its power supply. - Page 5 WARNING AND SAFTEY NOTE Batteries installed in a device or which are electrically linked to other components Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process Please bear in mind the following points before commencing charging: Did you select the appropriate program suitable for the type of battery you are charging?
-
Page 6: Introduction

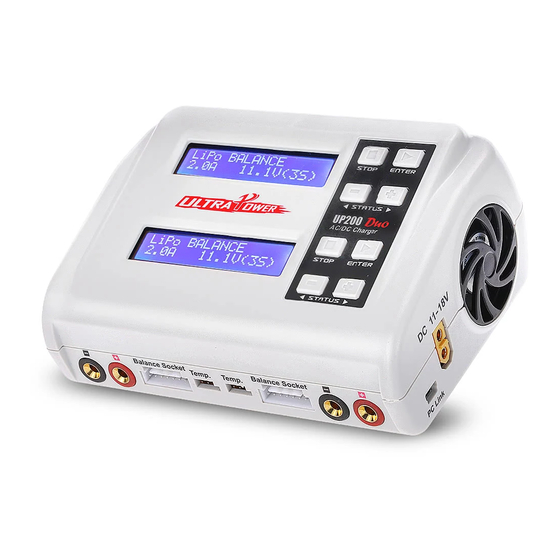

INTRODUCTION Ultra Power UP200 DUO is a twin-channel charger with two independent circuits, which can charge two different kinds of batteries simultaneously. It can support power distribution in AC mode total power 100W (CH1+CH2=100Watt.) and in DC mode, works in 2x100W, perform... - Page 7 INTRODUCTION Battery Sockets Balance Socket Cooling fan with Temp. Temp. Sensor Sensor Control Balance Socket Battery Sockets LCD Screen DC Input 11-18V DC Menu Control Buttons PC Link...
-
Page 8: Special Features
Adaptable to Various Type of Lithium Battery UP200 Duo is adaptable to various types of lithium batteries, such as LiPo, LiIon, LiFe and the new generation of LiHV batteries. Fast and Storage Mode of Lithium Battery... - Page 9 SPECIAL FEATURES Data Store/Load The charger can store up to 10 different charge/discharge profiles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting. Terminal Voltage Control(TVC) The charger allows user to change the end voltage.
-
Page 10: Warning And Safety Notes
WARNING AND SAFTEY NOTE Charging During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer. - Page 11 WARNING AND SAFTEY NOTE Discharging The main purpose of discharging is to clean the residual capacity of the battery, or to reduce the battery' voltage to a defined level. The same attention should be paid to the discharging process as the charging process.
-
Page 12: Lithium Battery Connection Diagram
LITHIUM BATTERY CONNECTION DIAGRAM UP200 Duo charger comes with the built in switch mode power supplies. You can connect the AC power cord directly to the main AC socket (100-240V AC), or you can connect an external power supply (11-18v) or 12v car battery to the DC input socket. - Page 13 This diagram shows the correct way to connect your battery to the UP200 Duo while charging in the balance charge program mode only. WARNING: Failure to connect will damage this charger.
-
Page 14: Program Flow Chart
PROGRAM FLOW CHART LiPo BALANCE LiPo CHARGE LiPo FAST CHG LiPo STORAGE LiPo DISCHARGE STOP PROGRAM SELECT 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) LiPo BATT ENTER INC / DEC STOP Lilo BALANCE Lilo CHARGE Lilo FAST CHG Lilo STORAGE... -
Page 15: Lithium Battery(Lipo/Life/Liion/Lihv)Program
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM These programs are only suitable for charging and discharging lithium batteries with a nominal voltage of 3.7V, 3.3V and 3.8V per cell. These batteries need to adopt different charge technique which is termed as constant voltage(CV) and constant current(CC) method. The charge current varies according to the battery capacity and performance. -
Page 16: Charging Of Lithium Battery
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM This screen displays the number of cells you set up and the processor detects. R=Number of cells detected by charger. S=Number of cells set by you at the previous screen. If both numbers are identical you can start Start charging process. -
Page 17: Fast' Charging Of Lithium Battery
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM If both numbers are identical you can start Start charging process. If not, press BATT TYPE/ Enter STOP button to go back to previous screen to recheck the number of cells of the battery pack before going ahead. This screen shows the real-time status Number Battery... -
Page 18: Storage' Control Of Lithium Battery
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM If both numbers are identical you can start charging process. If not, press BATT TYPE/ Start STOP button to go back to previous screen Enter to recheck the number of cells of the battery pack before going ahead. This screen shows the real-time status during Current Charging... -
Page 19: Discharging Lithium Battery
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM Start This screen shows the real-time status Enter charging. Press BATT TYPE/STOP button once to stop the charge process. Current Elapsed Supplied Number voltage time capacity Charge battery cells or discharge current DISCHARGING LITHIUM BATTERY The value of discharge current on the left can not exceed 1C, and the value on the right can not be under the voltage recommended by the manufacturer to avoid... -
Page 20: Pb Battery Program
PB BATTERY PROGRAM This program is only suitable for charging Pb lead-acid battery with nominal voltage from 2 to 20V, Pb lead-acid battery is a completely different from NiMH/NiCD battery. These batteries can only deliver current lower in comparison to their capacity. The same restriction applies to the charging process consquently, the optimum charge current can only be 1/10 of the capacity. -
Page 21: Nimh/Nicd Battery Program
PB BATTERY PROGRAM The screen display the real-time discharging status. Press START/ENTER button to change the discharging value. Press START/ ENTER Battery Elapsed Battery button again to store the parameter value you voltage time type Discharge set. Press BATT TYPE/STOP button to end Discharged current capacity... -
Page 22: Charging Nimh/Nicd Battery In Re-Peak Charge Mode
NIMH/NICD BATTERY PROGRAM The screen displays real-time charging status. Press BATT TYPE/STOP button to stop the process. Battery Elapsed The audible sound indicates the end of voltage Battery time Charged Charge type current capacity process. CHARGING NIMH/NICD BATTERY IN RE-PEAK CHARGE MODE Re-peak Charge Mode (NiMH and NiCD batteries only): In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. -
Page 23: Charge/Discharge & Discharge/Charge Cycle Of Nimh/Nicd Battery
NIMH/NICD BATTERY PROGRAM The screen indicates the discharging state. NiMH 0.1A 7.42V you can press START/ENTER button to 022:45 00890 alter discharge current, Press START/ ENTER button again to store the value, Elapsed Battery Battery time voltage Discharged type Press BATT TYPE/STOP button to stop capacity Discharge current... -
Page 24: Battery Memory Set
BATTERY MEMORY SET For your convenience UP200 Duo has a data storage and load program, it can store 10 different battery data represent the respective specifications of batteries, you can call back the data when charging/discharging without setting up the program again, press START/ ENTER button to make it blink and use INC. - Page 25 BATTERY MEMORY SET Set the terminal voltage, it can be adjusted TVC=YOUR RISK (4.18-4.30V) 4.20V DEC. INC. Set the cut-off temperature, it can be TEMPERATURE CUT-OFF adjusted(20 C/68 F-80 C/176 F). DEC. INC. SAVE PROGRAM ENTER Press the START/ENTER button more than 3 SAVE PROGRAM SAVE seconds to save the program.
-
Page 27: System Set Up
SYSTEM SET UP It will be operated with the default value of the essential user settings when it is connected to a DC 11~18V battery at the first time. The screen displays the below information in sequence and the user can change the value of parameter on each screen. - Page 28 SYSTEM SET UP by 11.9, set this number as the value for safety time setting. If the charger stopped at this threshold, about 140% of the capacity will have been fed into the battery. For example: Capacity Safety Time Current 2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes...
-
Page 29: Various Information During The Process
VARIOUS INFORMATION DURING THE PROCESS Press the Start/Enter button for 3 more than LOAD FACTORY SET seconds to load the factory set. ENTER This screen shows the version. VERSION 1.00 VARIOUS INFORMATION DURING THE PROCESS You can inquire various information on LCD screen during charging or discharging process. -
Page 30: Warning And Error Message
WARNING AND ERROR MESSAGE It incorporates a variety of functions for the systems to verify processes and the state of the electronics. In case of an error the screen will display the cause of error and emit an audible sound. Incorrect polarity connected. -
Page 31: Warranty And Service
WARRANTY AND SERVICE Thank you for purchasing UP200 Duo charger by Ultra Power. we We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. - Page 32 Manufactured by Ultra Power Technology Limited www.ultrapower.hk E-mail: info@ultrapower.hk...
