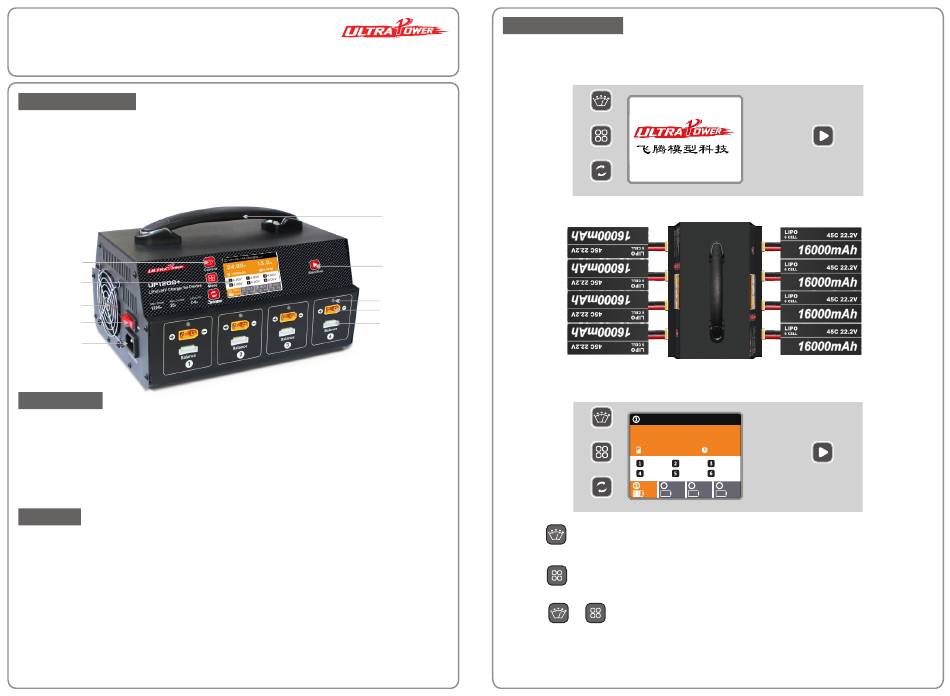

Ultra Power UP1200+ Instruction Manual

INSTRUCTION MANUAL
8
Channels LiPo/LiHV Charger For UAV Drones
Product Description
UP1200+ is specifically designed for 8 channels LiPo/LiHV Charger of UAV Drones, and
built-in charging nanny funcation, which can turn charging the battery in turn, and
automatically turn to the next batch packs(2pcs battery packs)once fully charged in last
batch. It also can support charge & fast charge & storage mode, and UP1200+ has
short-circuit protection, reverse polarity protection, and overheat protection to ensure
maximum safety.
Operating Button
LCD Display Screen
Cooling Fan
Power Switch
AC Input 220V
Specification
Input Voltage : AC 220V
Charge Output Power : 1200W (600WX2)
Discharge Power : 280W (35Wx8)
Charge Current : 5A/10A/15A/20A/25A
Balance Current : 1.5A/cell
Features
1. Support charging 8 pcs of 2-6S LiPo/LiHV batteries and built-in charging nanny, 4
channels per side.
2. Each side works independently, the charger can automatically turn to the next battery
pack once fully charged.
3. Support to charge/discharge with 8 battery packs simultaneously under storage mode.
4. With independent radio battery connection port, support to charge 2S/3S radio battery.
(Only one radio battery can be charged one time).
5. Memorizing last charging current.
6. Multiple protection function: over-voltage, over-current, reverse polarity, and over-
temperature protection.
UP1200+
Handle
Start/Stop Button
Working Indicator
XT90 Battery Port
Balance Socket
Battery Type : LiPo/LiHV
Battery Cell Count : 2-6S
( also can charge 2S/3S radio battery)
Working Mode : Charge/Fast Charge/Storage
Dimension : 270X190X160 mm
Net Weight : 4.61KG
- 1 -
Operation Procedure
1.Power on: Connect to the power source and turn on the power switch. All the working indicators
will illuminate for 2 seconds, and the LCD display screen will show the start-up page for 2
seconds, and then it will enter into the standby page.
Current
输入电压（INPUT）：200-240V ~50/60Hz
Mode
锂电类型（OUTPUT）：LiPo/LiHV 2-6S
额定功率（Rated Power）：1200W
充电电流（Charge Current）：Max.25.0A
Channel Tab
平衡电流（Balance Current）：1.5A/cell
2. Battery connection: Please connect your batteries according to below picture.
1) Connect to the battery
3. Setting the charging parameter.
LiPo-25A-Charge
1 LiPo 6S-15A-Charging
24.00
Current 24.00
15000mAh
15000mAh
1 4.00V
4.00V
输入电压（INPUT）：200-240V ~50/60Hz
Mode
4 4.00V
4.00V
锂电类型（OUTPUT）：LiPo/LiHV 2-6S
1 Standby
额定功率（Rated Power）：1200W
CHG
83%
充电电流（Charge Current）：Max.25.0A 80%
Channel Tab
平衡电流（Balance Current）：1.5A/cell
1) Press button to choose the appropriate current, 5A,10A,15A,20A,25A(Normally, we
suggest to charge with 1C charge current).
2) Press button to choose the mode you need, can choose charge mode, fast charge
mode, storage charge mode, the default mode is charge mode.
3) Press + simultaneously to choose the battery type, the default battery type is LiPo.
4) After all the setting done, long press "Start/Stop" for 2 seconds until heard "beep" sound, then the
charger is under charging process , the indicator shows in red, when fully charged, the indicator
shows green color.
Start/Stop
2) Connect to the balance socket.
....
25.0







15.0
V A
V A
0:38:58
0:38:58
2 4.00V 3 4.00V
4.00V 4.00V
Start/Stop
5 4.00V 6 4.00V
4.00V 4.00V
2 Free 3 Free 4 Free
2 IDLE 3 IDLE 4 IDLE
0% 0% 0%
0% 0% 0%
- 2 -
