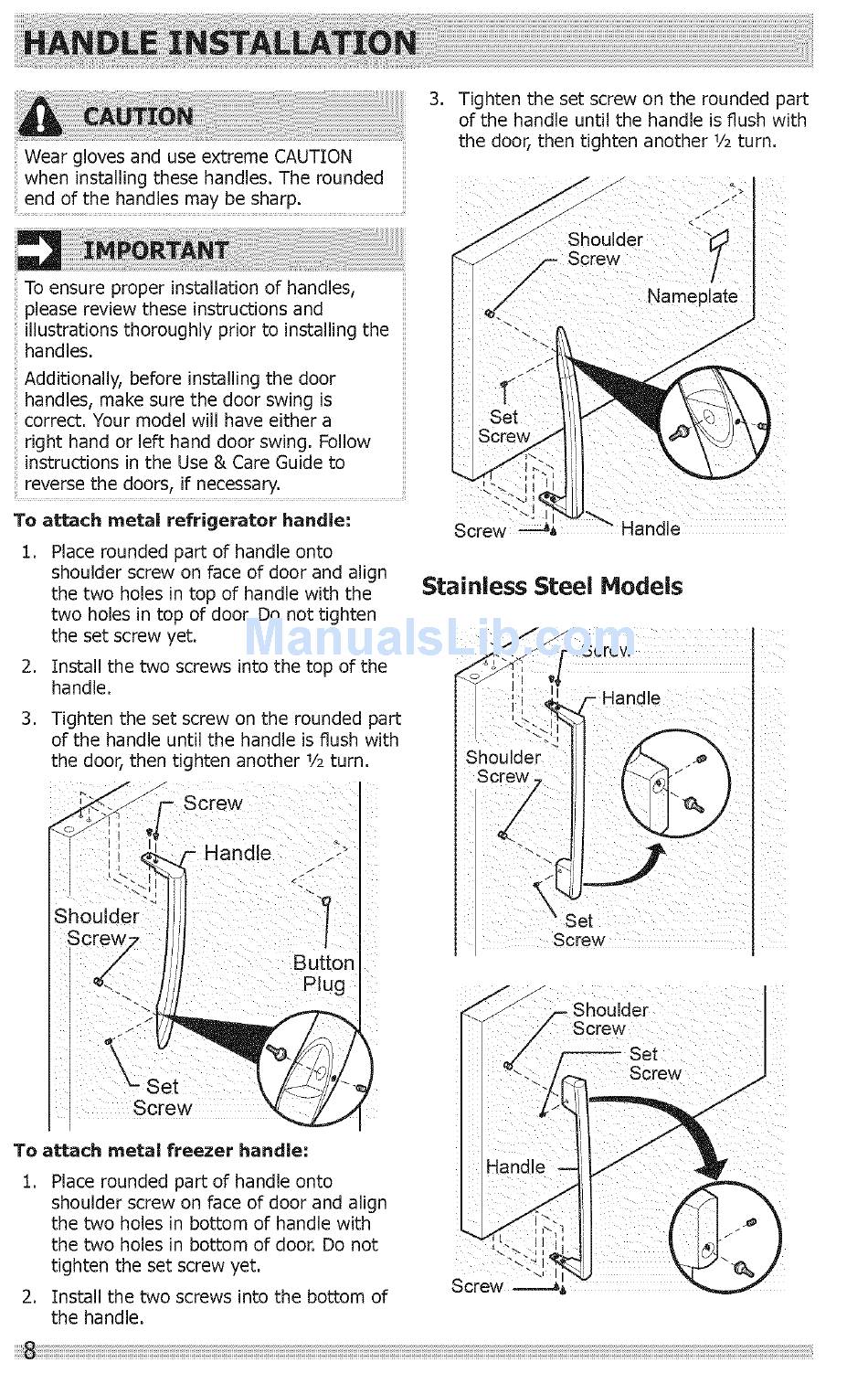

Handle Installatuon - Frigidaire FGTR2044QF1 Use & Care Manual

Wear gloves and use extreme CAUTION
when i nstalling these h andles. The rounded
To ensure proper installation ofhandles,
please review these i nstructions and
illustrations thoroughly prior t oinstalling the
handles.
Additionally, before installing the door
handles, make s ure t he door s wing i s
correct. Your model will h ave e ither a
right hand o rlefthand d oor swing. Follow
instructions inthe Use & Care G uide to
reverse thedoors, ifnecessary.
To attach metal refrigerator handle:
1.
Place rounded part of handle onto
shoulder screw on face of door and align
the two holes in top of handle with the
two holes in top of door. Do not tighten
the set screw yet.
2. Install the two screws into the top of the
handle.
3. Tighten the set screw on the rounded part
of the handle until the handle is flush with
the door, then tighten another 1/2turn.
3. Tighten the set screw on the rounded part
of the handle until the handle is flush with
the door, then tighten another 1/2turn.
Screw
Stainless Steel Hodels
Shoulder
Sc
Screw-
e
Button
Plug
\ Set
screw
_houlder
To attach metal freezer handle:
1. Place rounded part of handle onto
shoulder screw on face of door and align
the two holes in bottom of handle with
the two holes in bottom of door. Do not -_
tighten the set screw yet.
2. Install the two screws into the bottom of
the handle.
