Doors
Leveling
Electrical Power
Ice Maker(s)
Final Checks
Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.
This Use & Care Manual provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your refrigerator. Use the refrigerator only as instructed in this Use & Care Manual.
Before starting the refrigerator, follow these important first steps.
This appliance is intended for use in residential household and similar interior applications such as:
Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.
Installation
Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:
NOTE:
If your refrigerator is placed with the door hinge side against a wall, you may have to allow additional space so the door can be opened wider.
Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.
Guidelines for final positioning of refrigerator:
Most of these conditions can be met by raising or lowering the adjustable front rollers.

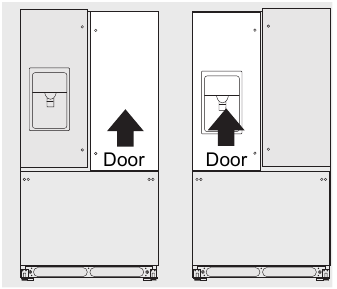

To level the cabinet using the front rollers:
NOTE: Product is shipped with doors adjusted to the lowest position on the hinges.
To make final door height adjustments:

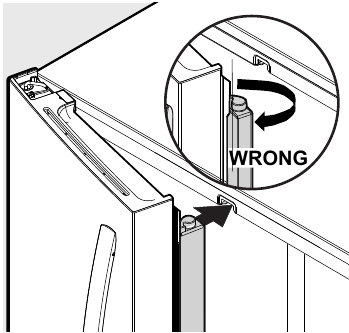

Adjust Flipper Mullion for proper connection with the mullion guide by ensuring the flipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.
To adjust the flipper mullion:

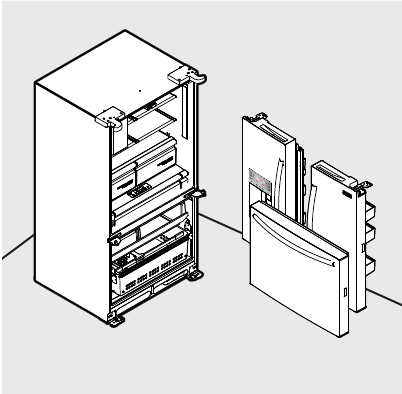

If your refrigerator will not fit through an entrance area, you can remove the doors. Check first by measuring the entrance.

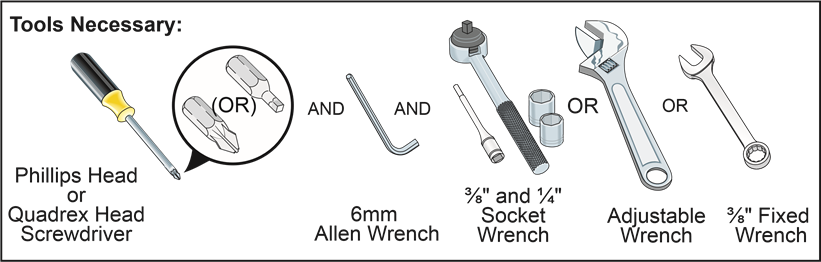

To prepare for removing the doors:
Make sure the electrical power cord is unplugged from the wall outlet.

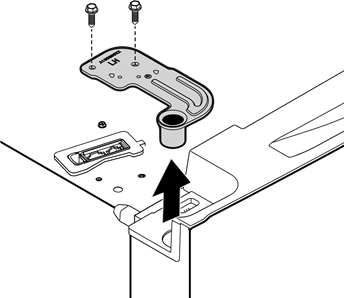

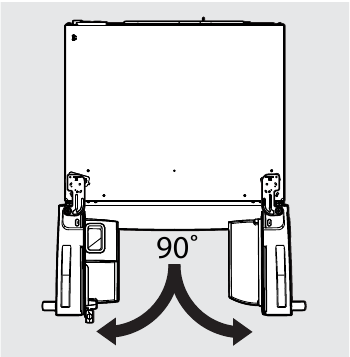

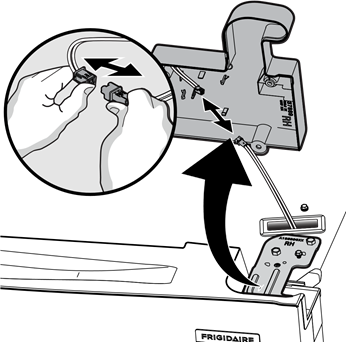

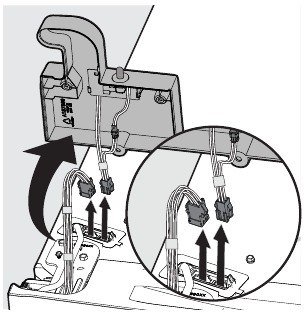

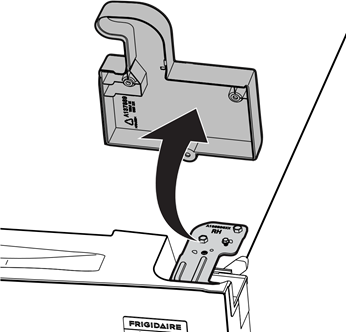

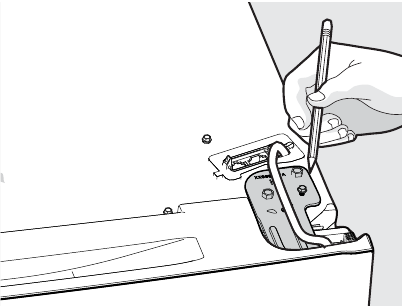

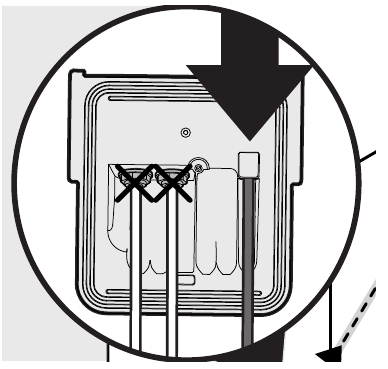

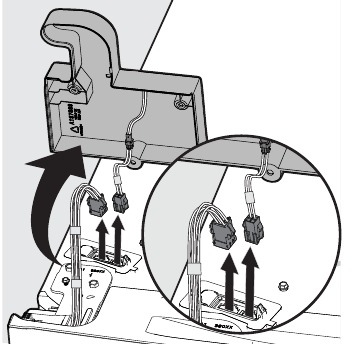

To remove refrigerator doors:

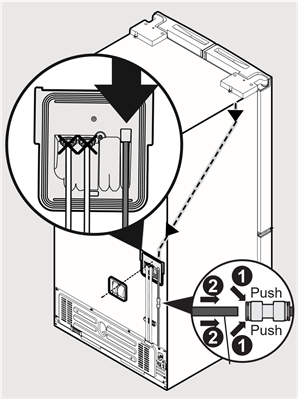

NOTE : You will be pulling approximately five feet of water tube from the back of the refrigerator. Use care while pulling the water tube from the unit to be sure that you do not kink the tube.
Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

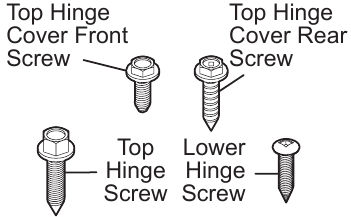

NOTE: When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not kink the tube. The water line may also be difficult to pass back through the conduit inside the cabinet
NOTE: Upon replacement, the tube needs to be fully inserted up to the marking line.

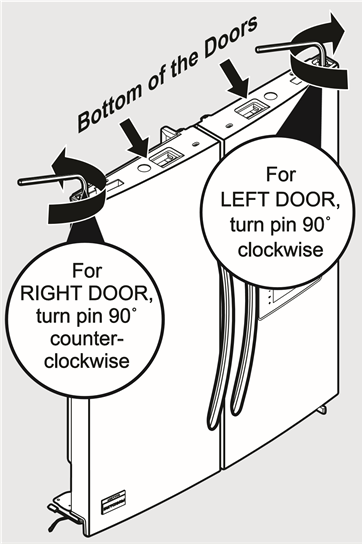

If doors are removed at less than a 40 degree angle, the pin returns to the home position. It can be reset by turning the door upside down and using a 5/32" Allen wrench to rotate the left hand pin 90 degrees clockwise and the right hand pin 90 degrees counterclockwise.

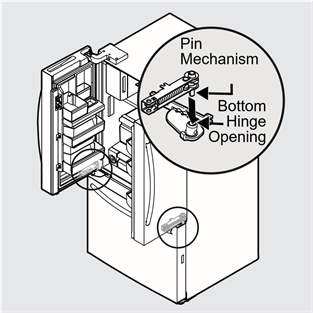

Once the door pins are reset, follow the steps "To reinstall the refrigerator doors".

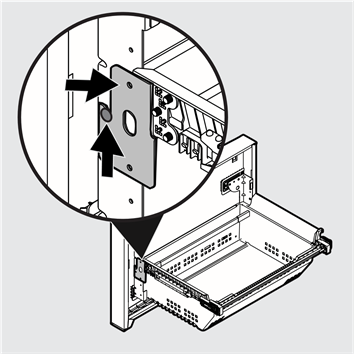

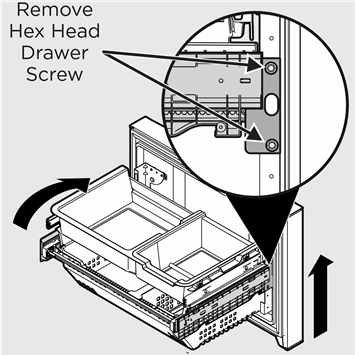

Drawer is heavy. Use caution when lifting.
Do Not loosen or remove the 3 hex screws.
NOTE: To locate the pin, look inside the drawer and the pin is next to the door liner and the slides. Not all parts are shown in the illustration.
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

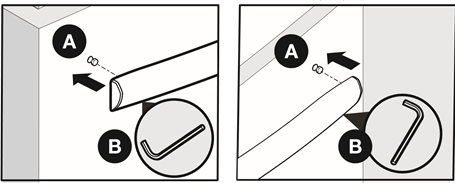

NOTE: When tightening the Allen set screws, it is important that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.
NOTE: All set screws should be tightened so the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier. The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

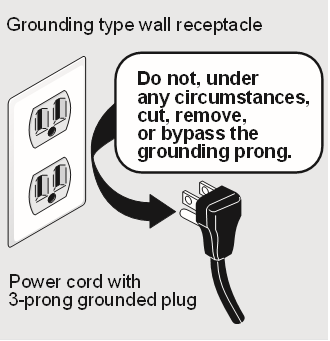

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:

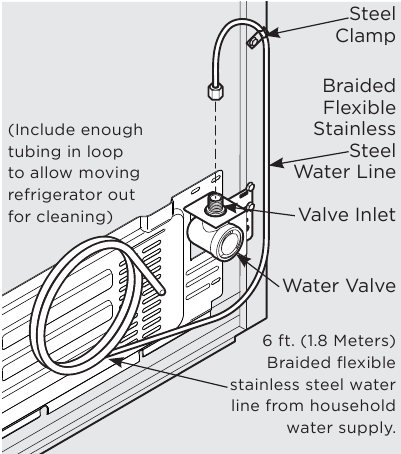

Ensure that your water supply line connections comply with all local plumbing codes.
NOTE: Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5305513409 with a 6 ft. (1.8 meters) Stainless Steel Water Line, and for homes without an existing valve Frigidaire recommends its Smart Choice® water line kit 5305510264 with a 20 ft. (6 meters) Copper Water Line with self-tapping saddle valve. Please refer to www.frigidaire.com/store for more information.
NOTE: These instructions do not cover after market ice maker installation. Instructions in after market ice maker kit should be used.
Your refrigerator's water supply system includes several tubing lines, a water filter, and a water valve. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line.
Your display is equipped with a sleep and lock mode to prevent accidental changes to the unit settings during opening and closing of the doors. When both doors are closed, the display will be in sleep mode. When either door is first opened, the display will be in lock mode where all the current settings are visible but dimmed.
Pressing any button on the display will awake the display and a tone will be played. All settings will then be fully lit. Touch the display again to change any setting.
If there is no button pressed for 10 seconds while any door is open, the display will default back to lock mode.
1 | Change Temperature | Select Freezer or Refrigerator icon to change temperature. Select +/- buttons to set the temperature Freezer control range: -6˚F/-21˚C – +6˚F/-15˚C Refrigerator control range: +34˚F/+1˚C – +44˚F/+7˚C |
2 | Clear Alerts | Resets any alarms that are active and illuminated on the display (DOOR OPEN, HIGH TEMP, POWER OUTAGE). |
3 | Freeze Boost | Prior to grocery shopping, we recommend you activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost will remain active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze Boost to turn the function off. This will reset the freezer to the previous temperature setting. |
4 | Temp F/C | Touch to toggle display from Fahrenheit to Celsius. |
5 | Water Dispenser | When the water dispenser is turned on the LED's above Water Dispenser will be illuminated. |
6 | Default Settings | Press and hold button for 3 seconds to reset to Factory settings. |
7 | Water Filter | Press and hold button to reset after filter has been replaced, status shown at right of button will reset to GOOD. |
8 | Air Filters | Press and hold to reset after filter has been replaced, status shown at right of button will reset to GOOD. |
NOTE: The recommended settings for a product installed in a kitchen is 37˚F for the refrigerator and 0˚F for the freezer.
Select the compartment where you want to change the temperature by pressing the FREEZER or REFRIGERATOR buttons at the top of the display. Press the + or − buttons to adjust the temperature to the desired setting.
The temperature setting will begin to blink with the first touch. The display will time out after 10 seconds and return to the basic display.
Door Open
If the freezer or refrigerator doors have been left open for five minutes or more, an alarm will sound and the door open indicator will illuminate on the display. Press "CLEAR ALERTS" to reset any system alarms.
High Temp Alarm
High temp will illuminate next to clear alerts button. Alarm is played every 60 seconds. Press "CLEAR ALERTS" button to acknowledge the alarm. The highest temp value will be displayed when the alarm is first acknowledged.
Power Outage
In the event of a power outage, the power outage alert will be illuminated. Press "CLEAR ALERTS" to acknowledge the alarm. Other modes may be turned off until the alarm is acknowledged. While a power outage alert is displayed on the control panel, the unit will continue normal operation. The high temp alarm may also be illuminated until a safe operating range temperature has been reached.
NOTE: Food placed within 1 in. in front of air ports may cause food to freeze.
The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the "−" and "Temp F-C" for five seconds. The display shows "Sb" while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited.
For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.
NOTE
Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

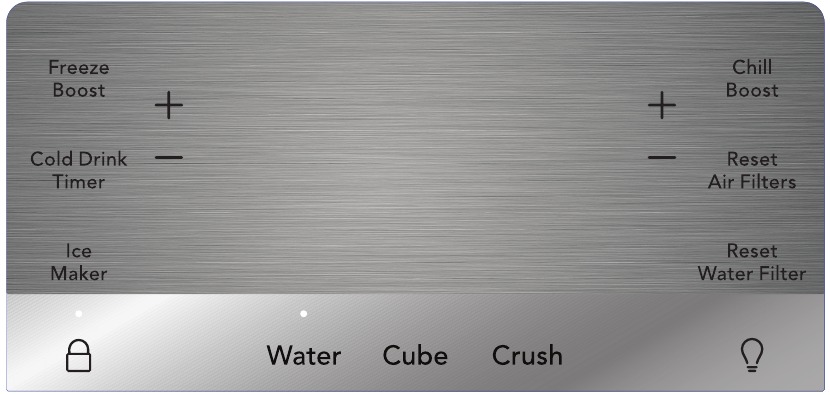

Sleep Mode
As a default, the display will go to sleep after a short time. If any icon is pressed, the display will be awakened. After a short time, it will go back to sleep. When in sleep mode, wake up the display to confirm ice maker is On/Off. Sleep mode can be turned off to have the display on full time (awake mode). When sleep mode is Off, the display will always be illuminated. To turn sleep mode On/Off, simultaneously press and hold "Crush" and " Light" icons for 5 seconds. Tone will confirm.

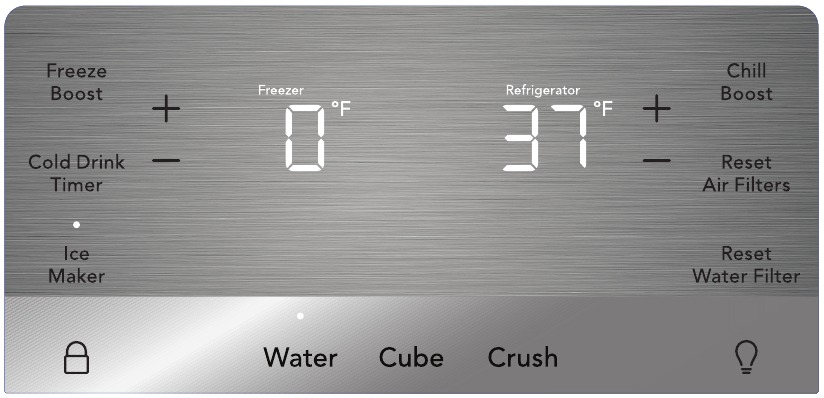

Awake Mode
To change from sleep mode (on) to awake mode (off), simultaneously press and hold "Crush" and " Light" icons for 5 seconds. Display will show the current temperature/ice maker status. Tone will confirm.

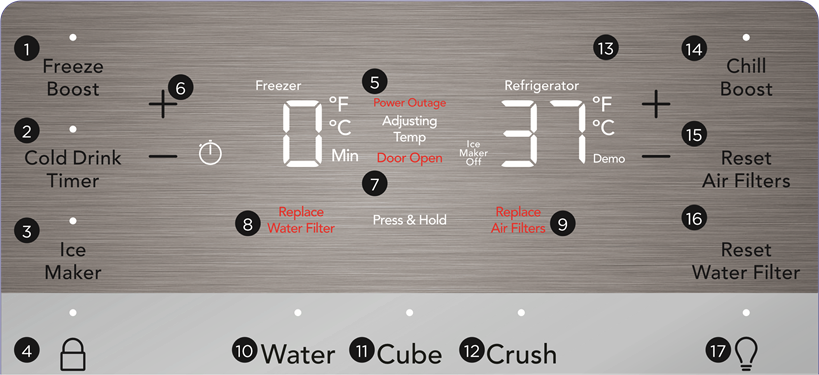

1 | Freeze Boost (on/off) | Prior to grocery shopping, we recommend you activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost will remain active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze Boost to turn the function off. This will reset the freezer to the previous temperature setting. |
2 | Cold Drink Timer | Quickly chills a drink inside the freezer compartment. To enable, touch the Cold Drink Timer key. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. Range is from 20-45 minutes in 5 minute intervals. Drinks will freeze if temperature setting is too low or timer setting is too long. |
3 | Ice Maker | Press and hold for 3 seconds to turn ice maker on/off. When indicator is lit, ice maker is on. When indicator is not lit, ice maker is in the OFF state and will stop making ice. While off, ice dispensing can continue as long as there is ice in the bucket. When ice maker is off and ice is dispensing, indicator will blink. |
4 | ![]() Lock Controls | The lock button can be used to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/ disable. While in the locked state, no changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will flash and an audible warning tone is played. |
5 | Power Outage | In the event of a power outage, the power outage alert will be illuminated once power has been restored and a tone will sound. Press any button to silence the tone. |
6 | Adjusting Temp | Illuminates when temperatures are changed on the display and will remain illuminated until the desired temperatures are reached inside the refrigerator and freezer. Press either the + or - to adjust to desired temperature setting. Freezer temp - Control temperatures range from -6°F / -21°C to +6°F / -15°C. Refrigerator temp - Control temperatures range from +34°F / +1°C to +44°F / +7°C. This unit is designed to operate at 37°F Refrigerator/0°F Freezer. Unit should stabilize temperatures within 24 hours of installation. |
7 | Door Open | This alert indicates the door has been open for 5 minutes or more. The Door Open LED illuminates and the audible alert sounds until the door is closed. The audible alert can be turned off by pressing the Door Open key or by closing the door. If the door is open for 5 minutes, the interior light will turn off. |
8 | Water Filter | Display illuminates every 6 months or when filter needs replacing. Replace the filter then press and hold Reset Water Filter for 3 seconds to deactivate the warning on display. See Replacing the Filter for more information. |
9 | Air Filter | Display illuminates every 6 months or when filter needs replacing. Replace the filter and then press and hold Reset Air Filter for 3 seconds to deactivate the warning on the display. See Replacing the Filter for more information. |
10 | Water | Press the Water key to select water. An indicator light will be illuminated above the active feature. |
11 | Cube | Press the Cube key to select cubed ice. An indicator light will be illuminated above the active feature. |
12 | Crush | Press the Crush key to select crushed ice. An indicator light ill be illuminated above the active feature. |
13 | ˚F/˚C | To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of display. |
14 | Chill Boost | Prior to grocery shopping, we recommend you activate Chill Boost to lower the temperature and cool food faster. Chill Boost will remain active for up to 6 hours before automatically deactivating or manually exiting by pressing Chill Boost to turn the function off. This will reset the freezer to the previous temperature setting. |
15 | Reset Air Filters | Filter condition status is always displayed when the door is open. Press and hold for three seconds to reset after changing the filter. |
16 | Reset Water Filter | Press and hold for three seconds to reset after filter change. |
17 | ![]() Light | Toggles dispenser light On and Off. |
When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long.
NOTE: The recommended settings for a product installed in a kitchen is 37˚F for the refrigerator and 0˚F for the freezer
Setting cooling temperatures
Press the + or - buttons next to the Refrigerator or Freezer temperature display to adjust the temperature to the desired setting.
The temperature setting will begin to blink with the first touch. The display will time out after 10 seconds and return to the basic display.
Door Open
If the freezer or refrigerator doors are left open for five minutes or more, an alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The control panel will return to normal operations after the door is closed.
High Temp Alarm
An alarm sounds in the event of a high temperature condition. The control panel displays HI on whichever compartment the alarm is detected in and the alarm sounds every 10 seconds until acknowledged. Touch any key or open a door to silence the alarm.
Power Outage
In the event of a power outage, a tone sounds and the power outage alert illuminates once power has been restored. Press any key on the control panel to silence the alarm.

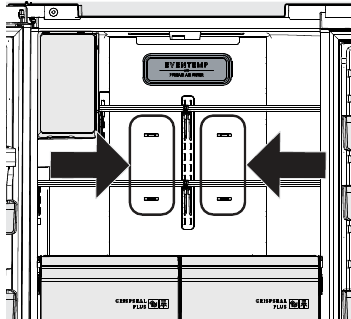

Flapper (Dispenser Models Only)
If the flapper (or ice chute door) is held open by a jammed ice cube when "Cube" or "Crush" is selected, an alarm sounds and the current selection blinks on the dispenser control. The alarm resets when the ice cube is removed.

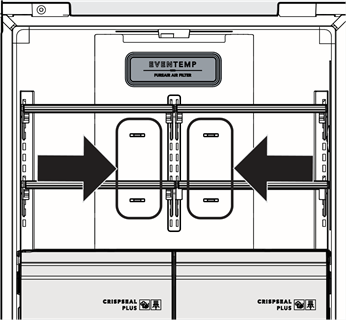

NOTE: Food placed within 1 in. in front of air ports may cause food to freeze.
The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the "FZ−" and "FF+" for 10 seconds. The display shows "Sb" while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited.
For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.
NOTE: Although you have entered the Sabbath Mode, the ice maker will complete the cycle it had already initiated. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

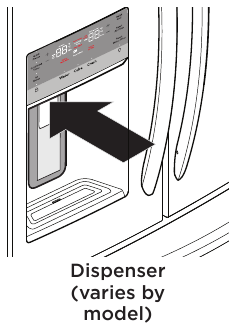

Using the dispenser after installation
Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may have discolored water or have an odd flavor.
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.
NOTE: The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.
NOTE: Dispensed water is not chilled. For colder water, add ice to cup or container before dispensing water.
After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.
In a Standard Depth model, the refrigerator ice maker should produce 3.0 to 3.4 pounds of ice per 24 hours. In a Counter Depth model, the refrigerator ice maker should produce 2.7 to 3.2 pounds of ice per 24 hours.
In a Standard Depth model, the refrigerator ice bin will hold around 5 pounds of ice. In a Counter Depth model, the refrigerator ice bin will hold around 3.7 pounds of ice.
Ice production is controlled by the ice maker's On/Off feature on the control panel. Pressing the On/Off feature turns the ice maker on & off.
Turning off the ice maker simply disables ice making. You will still be able to dispense existing ice, and you will still be able to dispense water.
NOTE: The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.
Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker's On/Off feature to Off; otherwise, the ice maker's fill valve may make a loud chattering noise when it attempts to operate without water.
On occasion, unusually small ice cubes may be noticed in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may be an indication of low water pressure or the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it's been six months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.
If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.
Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

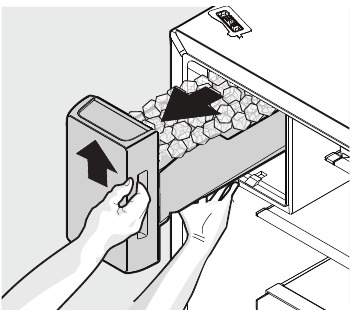

Removing Ice Bin
Remove and empty the ice bin if:
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.
When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will not dispense ice. The refrigerator door also may not close properly causing warm air to leak into the refrigerator compartment.

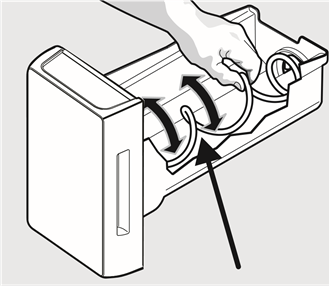

Adjusting Ice Bin Auger
Your refrigerator is equipped with an internal water dispenser mounted inside the cabinet, on the left hand fresh food door.
Hold door with one hand while dispensing water to keep door from moving and possible dispensing water on floor.
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.

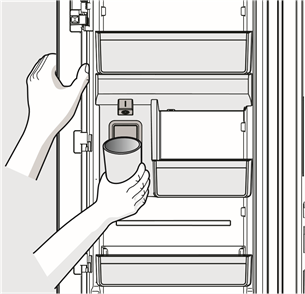

Before dispensing water for the first time, be sure to prime the water supply system. If the system is not flushed, the first glasses of water may have discolored water or have an odd flavor.
NOTE: If you prefer to keep the internal water dispenser disabled, use the appliance display to disable it. The LEDs will not be illuminated above WATER DISP.
NOTE: The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff device, simply release the dispenser paddle.
After the refrigerator is installed properly, the ice maker can produce ice within 24 hours. When using the ice maker for the first time, and in order for it to work properly, it is necessary to clear air from the water tubing and the filter. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor. Once the ice maker begins making ice, allow the bin to fill completely, then discard the first FULL bin of ice.
This ice maker should produce between 2 and 2.5 pounds of ice per 24 hours depending on usage conditions. For a Standard Depth unit, the ice bin should hold around 12 pounds of ice. For a Counter Depth unit, the ice bin should hold around 9 pounds of ice.
NOTE: The ice maker will only produce the advertised production rate if the product is set at 0°F.

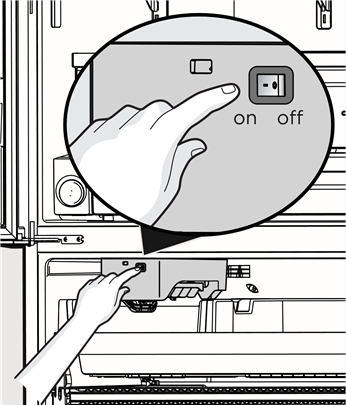

Press power button to turn Ice Maker on (button will not illuminate).
NOTE: The Freezer Ice maker fills from the back left-hand corner of the bin. Moving the ice to the edges of the bin allows the bin to fill completely.
If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.
Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.
Remove and empty the ice bin if an extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored.
NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin.
To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.
You can easily adjust shelf positions in the refrigerator compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

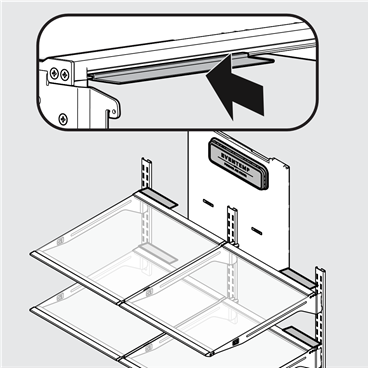

For glass shelves:
Be aware of the air seal located at the rear of the shelf. Shelves located on the left side should have the air seal mounted on the far left side. Shelves located on the right side should have the air seal mounted on the far right side. This is to ensure there is no interference with the large air tower on the back wall of the cabinet. This also applies to the crisper shelves.

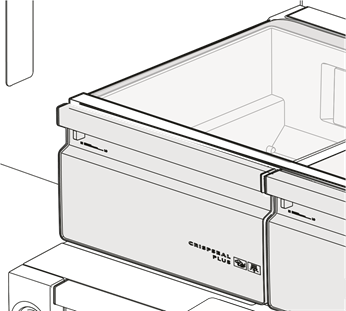

Your refrigerator includes a variety of storage drawers.
Crisper drawers are designed for storing fruits, vegetables, and other fresh produce.

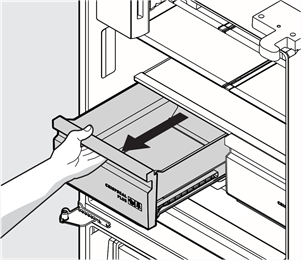

Opening Crisper Drawer
Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crisper drawers have an auto humidity control on the back of each crisper under the humidity control cover.

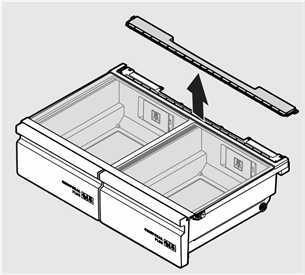

Removing Auto Humidity Control Membrane
NOTE: Frigidaire does not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, it can be washed with soap and water. Ensure membrane is dry before replacing in unit.

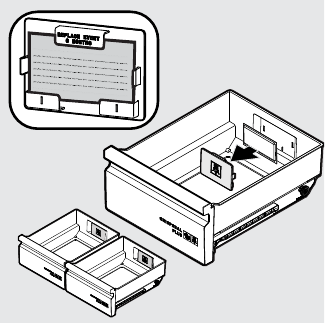

The crisper drawer ethylene absorbers help to keep food fresher longer in the crisper drawers. See Filter Replacement section for details on how to order replacements.
Remove the produce keeper prior to washing the crisper drawer.

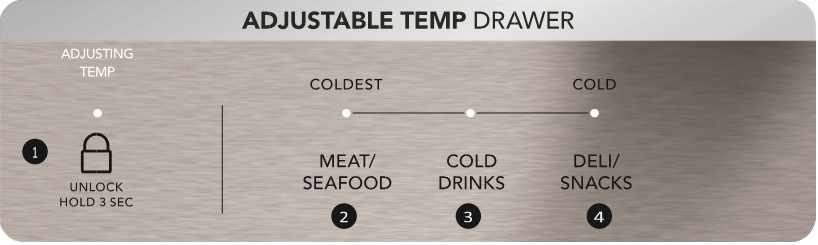

1 | ![]() Lock Control | The drawer automatically defaults to a locked state to prevent any unwanted use. To change the drawer's settings, it first needs to be unlocked. To unlock, press and hold the UNLOCK icon for 3 seconds. It will automatically lock after 10 seconds without any interaction.. |
2 | Meat/Seafood Setting | Select Meat/Seafood for short term storage. Any meat to be kept longer than two days should be frozen. A tone will sound to confirm choice. |
3 | Cold Drinks Settings | Select Cold Drinks when storing individually packaged beverages such as soda cans or juice boxes. A tone will sound to confirm choice. |
4 | Deli/Snacks Settings | Select Deli/Snacks when storing meat and cheeses. A tone will sound to confirm choice. |

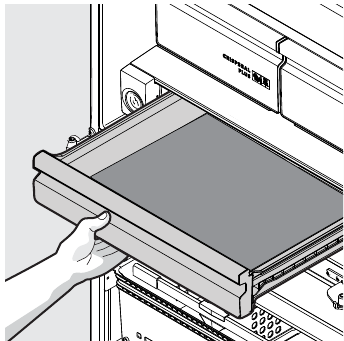

Ideal for storage of deli meats, cheese, and beverages.
Do not use the Adjustable Temp Drawer to store fresh produce as these items may freeze and cause damage to the fruits and leafy vegetables stored in the drawer.

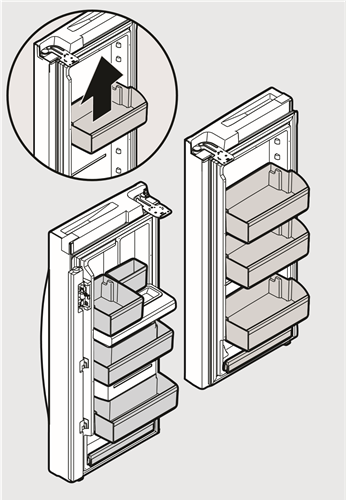

Adjustable Door Bins
The doors to your refrigerator compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Some of them have fixed positions, while others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

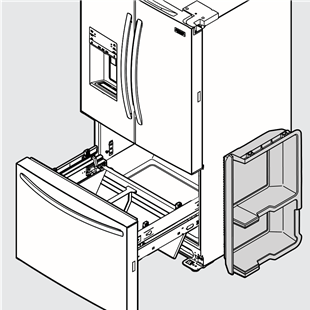

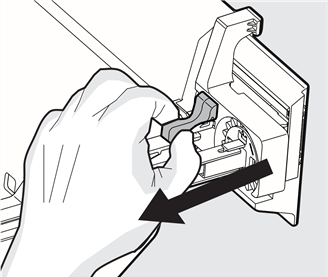

Your freezer has baskets and dividers that can be adjusted to your needs.

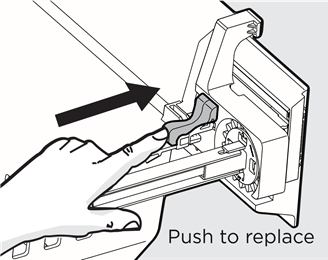

Reverse the steps to reinstall the lower freezer basket.
Grab hand hold on lower divider and pull up slightly to slide to next position. (The divider cannot be removed.)
NOTE: Energy efficient foam in your refrigerator is not a sound insulator.
NOTE: During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

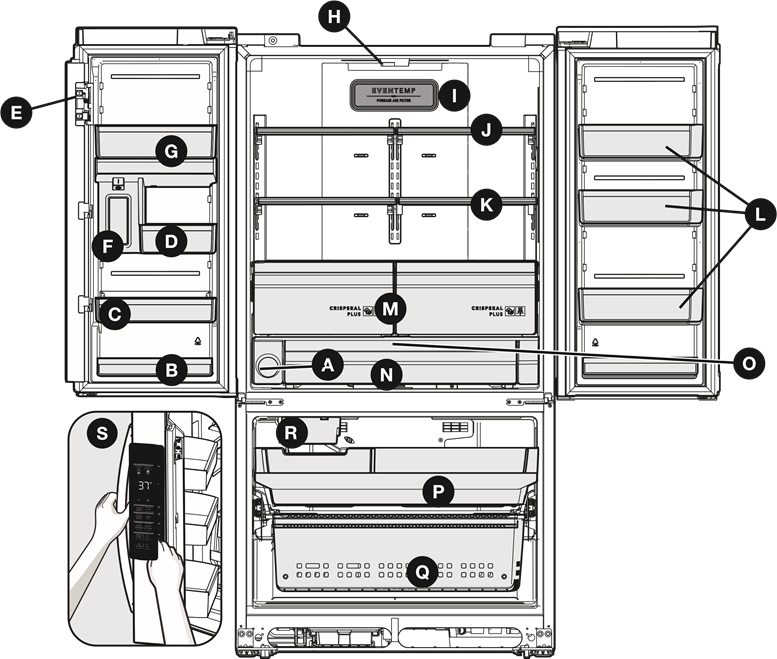

Features vary by model
Your new, high-efficiency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.
The following is a list of major components in your refrigerator and the sounds they can cause:
The air filter is located at the top of the air tower.
To ensure optimal filtering of refrigerator odors, you should change the air filter every six months (the filter status light on the main controls prompts you to replace the filter after six months).
To remove and replace the air filter:
Order new filters by calling 877-8084195, online at www.frigidaire.com/ store, or through the dealer where you bought your refrigerator. You may want to consider ordering extra filters when you first install your refrigerator.
Air Filter Replacement cartridge, part # FRGPAAF2
Your refrigerator is equipped with water filtering system. The water filter system filters all dispensed drinking water, as well as the water used to produce ice.
The water filter is located at the left side of the Adjustable Temp Drawer.
Keep safe, great-tasting water flowing with a PurePour™ water filter. Using a PurePour™ water filter:
*For the complete list, please see Performance DataSheet on Frigidaire.com
The water filter is located at the bottom left of the refrigerator compartment next to the Adjustable Temp Drawer. In general, you should change the water filter every 6 months to ensure the highest possible water quality.
Water Filter Status on the user interface prompts you to replace the filter after a standard amount of water (125 gal/453 L for PurePour™) has flowed through the system.
If you have not used your refrigerator for a period of time (during moving for example), change the filter before reinstalling the refrigerator.
To order your replacement filters, please visit our online store at frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you order extra filters when you first install your refrigerator, and that you replace your filters at least once every 6 months.
Here are the product numbers to request when ordering:
PurePour™ Water Filter PWF-1 Part# FPPWFUO1™
NOTE: When you order your replacement filter, please reorder the same filter type currently in your refrigerator.
The PurePour™ ice and water filter system is tested and certified to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of claims specified on the performance data sheet. Visit frigidaire.com for more information.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certified for cyst reduction on disinfected waters that may contain filterable cysts.
Test & certification results:
Replacing your PurePour™ water filter
It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.
Keep fruits and vegetables fresher longer with Pure Air Produce Keeper™. Our produce keeper absorbs ethylene gas, the natural gas that causes produce to ripen quicker. Reduce food waste, save money and enjoy fresh-tasting produce with a longer storage life.
Ordering Replacement Filters
To order your replacement filters, please visit our online store at frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you replace your filters at least once every 6 months.
Here are the product numbers to request when ordering:
PureAir Produce Keeper™ PK-1 Part # FRPAPKRF.
Installing the PureAir Produce Keeper™:
DO NOT OPEN. Contents may irritate eyes or skin. Keep out of reach of children.
FIRST AID: Contains potassium permanganate. In case of contact with eyes or skin, rinse immediately with water.
DO NOT EAT: If swallowed, seek medical treatment immediately.
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
NOTE: Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.
Wipe up any spills immediately and clean the freezer and refrigerator compartments at least twice a year.
NOTE: If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet.
Refer to the guide for details on caring and cleaning specific areas of your refrigerator.
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.
Short Vacations |
|
Long Vacations |
|
Moving |
|
Part | What To Use | Tips and Precautions |
Interior & Door Liners |
| Use two tablespoons of baking soda in one quart of warm water. Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part. |
Door Gaskets |
| Wipe gaskets with a clean soft cloth. |
Drawers & Bins |
| Use a soft cloth to clean drawer runners and tracks. |
Glass Shelves |
| Allow glass to warm to room temperature before immersing in warm water. |
Exterior & Handles |
| Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles. DO NOT use a dry cloth to clean smooth doors. |
Exterior & Handles (Stainless Steel Models Only) |
| Never use CHLORIDE or cleaners with bleach to clean stainless steel.
|
Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!
1-800-374-4432 (United States)
Frigidaire.com
1-800-265-8352 (Canada)
Frigidaire.ca
Concern | Potential Cause | Common Solution |
Automatic Ice Maker | ||
Ice maker is not making any ice. |
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
Automatic Ice Maker (Cont'd) | ||
Ice maker is not making enough ice. |
|
|
|
| |
|
| |
Freezer ice maker will not stop making ice (select models). |
|
|
|
| |
Automatic Ice Maker (Cont'd) | ||
Ice cubes are freezing together. |
|
|
Dispenser (Ice & Water) | ||
Dispenser will not dispense ice. |
|
|
Ice dispenser is jammed. |
|
|
Dispenser will not dispense water. |
|
|
Water not cold enough. |
|
|
Water has an odd taste and/or odor. |
|
|
Opening/Closing Of Doors/Drawers | ||
Door(s) will not close. |
|
|
Drawers are difficult to move. |
|
|
|
| |
Running of Refrigerator | ||
Compressor does not run. |
|
|
|
| |
|
| |
Refrigerator seems to run too much or too long. |
|
|
Digital Temperature Setting Display | ||
Digital temperature displays an error. |
|
|
Water/Moisture/Frost Inside Refrigerator | ||
Moisture collects on inside of refrigerator walls. |
|
|
Water collects on bottom side of drawer cover. |
|
|
Water collects in bottom of drawer. |
|
|
Water/Moisture/Frost Outside Refrigerator | ||
Moisture collects on outside of refrigerator or between doors. |
|
|
Food in Fresh Food Compartment | ||
Food is freezing. |
|
|
Please read all instructions before using this appliance.
This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
indicates installation, operation or maintenance information which is important but not hazard-related.
Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used.
Risk of fire or explosion due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.
CALIFORNIA RESIDENTS ONLY
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.
Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for "just a few days". If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.energystar.gov/ recycle for more information on recycling your old refrigerator.
Before you throw away your old refrigerator/freezer:
CFC/HCFC Disposal
Your old refrigerator may have a cooling system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.
If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified technician. If you intentionally release refrigerant, you may be subject to fines and imprisonment under provisions of environmental legislation.
To turn off power to your refrigerator you must unplug the power cord from the electrical outlet.
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.
1-800-374-4432
Frigidaire.com
1-800-265-8352
Frigidaire.ca
FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Frigidaire GRFN2853AF - Gallery 28.8 Cu. Ft. French Door Refrigerator Manual
Advertisement
Need help?
Do you have a question about the GRFN2853AF and is the answer not in the manual?
Questions and answers
