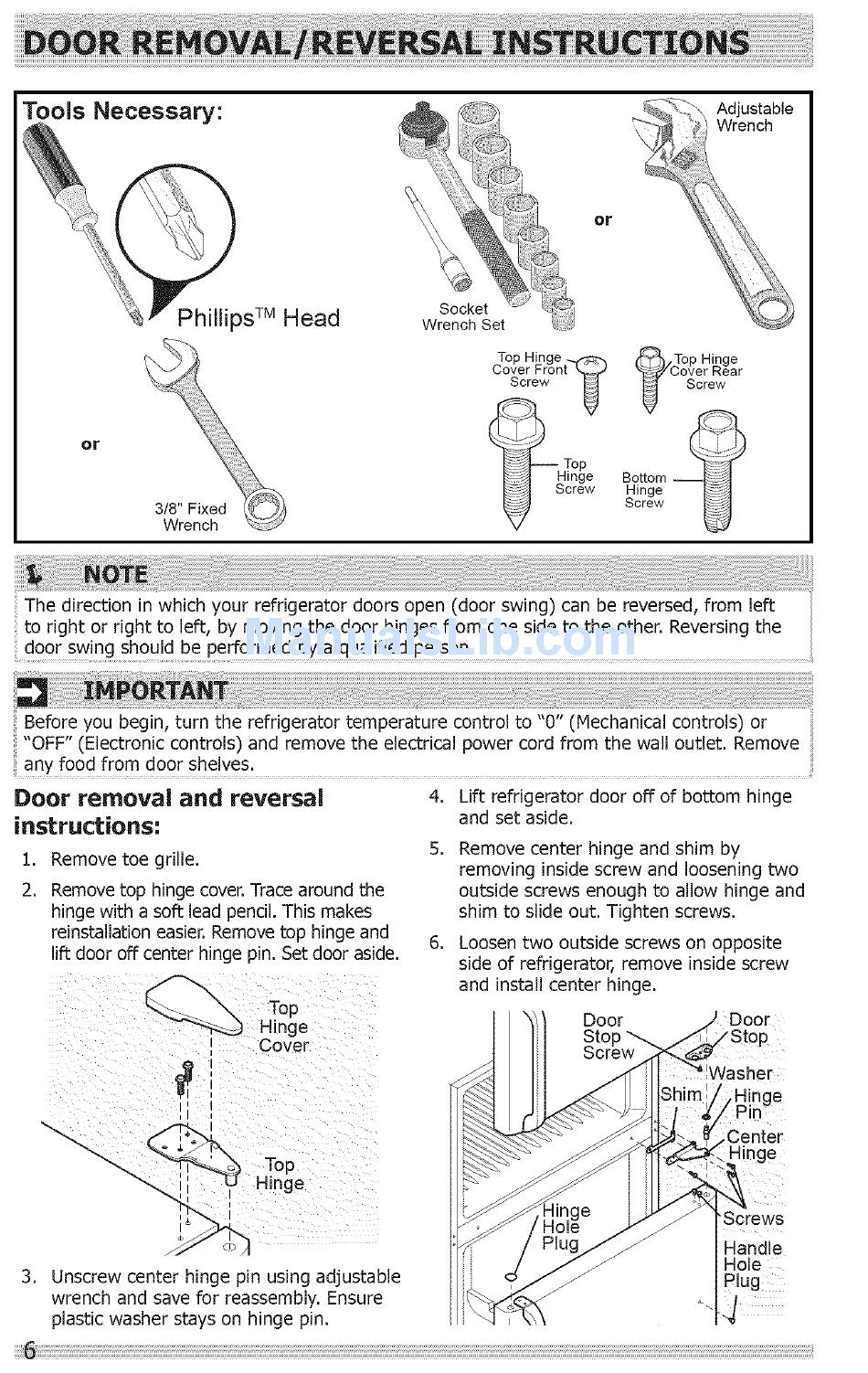

Door Removal/Reversal Instructuons - Frigidaire FGTR2044QF1 Use & Care Manual

Tools Necessary:
Phillips TMHead
OF
Or
Adjustable
Wrench
Top Hinge _ (_h,Top Hinge
Cover Front k._.,J "_"__/'Oover Rear
S .... _ _ S ....
inge Bottom
crew Hinge
Screw
The direction in which your refrigerator doors open (door swing) can be reversed, from left
to right or right to left, by moving the door hinges from one side to the other. Reversing the
door swing shou!d be Performed by a qualified person.
Before you begin, turn the refrigerator temperature control to "0" (Mechanical controls) or
"OFF" (Electronic controls) and remove the electrical power cord from the wall outlet. Remove
any food from door shelves. .................
Door removal and reversal
instructions"
1. Remove toe grille.
2. Remove top hinge cover. Trace around the
hinge with a soft lead pencil. This makes
reinstallation easier. Remove top hinge and
lift door off center hinge pin. Set door aside.
Top
Hinge
Cover
Top
3. Unscrew center hinge pin using adjustable
wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge
and set aside.
5. Remove center hinge and shim by
removing inside screw and loosening two
outside screws enough to allow hinge and
shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite
side of refrigerator, remove inside screw
and install center hinge.
1
Door
nge
;Center
je
Screws
Handle
Hole
Plug
