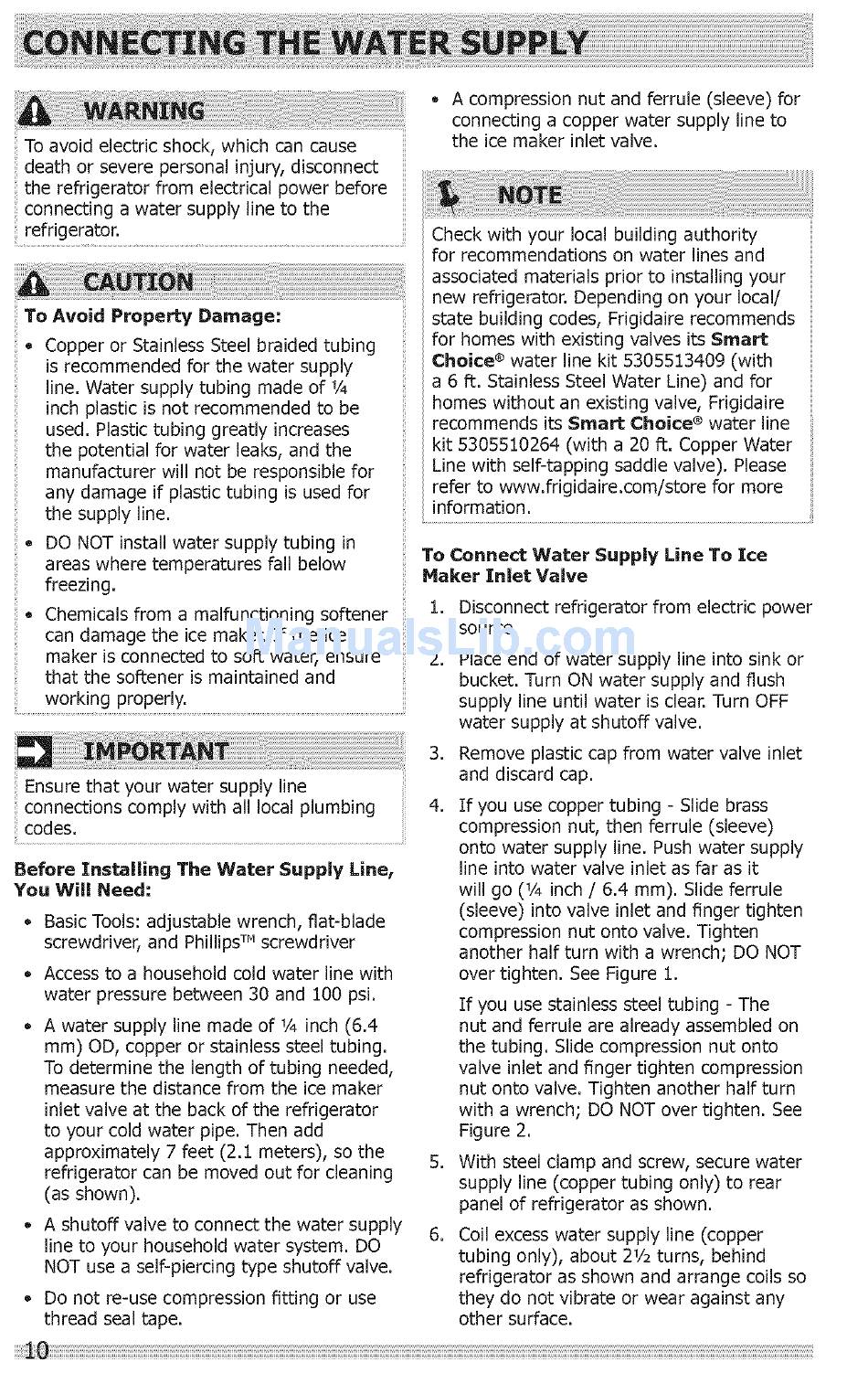

Connecting Water Supply - Frigidaire FGTR2044QF1 Use & Care Manual

To avoid e lectric shock, which c an cause
death o rsevere personal injury, disconnect
the refrigerator from electrical power before
connecting awater supply line tothe
Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of 1/4
inch plastic is not recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
DO NOT install water supply tubing in
areas where temperatures fall below
freezing.
Chemicals from a malfunctioning softener
can damage the ice maker. If the ice
maker is connected to soft water, ensure
that the softener is maintained and
.......... working proper!y. ...................................................................................................
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice ® water line kit 5305513409 (with
a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Frigidaire
recommends its Smart Choice ® water line
kit 5305510264 (with a 20 ft. Copper Water
Line with self-tapping saddle valve). Please
refer to www.frigidaire.com/store for more
information.
To Connect Water Supply Line To Ice
Maker Inlet VaNe
1.
2.
Ensure that your water supply line
connections comply with all local plumbing 4.
codes.
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench, fiat-blade
screwdriver, and Phillips:" screwdriver
Access to a household cold water line with
water pressure between 30 and 100 psi.
A water supply line made of 1/4 inch (6.4
mm) OD, copper or stainless steel tubing.
To determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning
(as shown).
A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
5.
6.
Do not re-use compression fitting or use
thread seal tape.
Disconnect refrigerator from electric power
source.
Place end of water supply line into sink or
bucket. Turn ON water supply and flush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
Remove plastic cap from water valve inlet
and discard cap.
If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water supply
line into water valve inlet as far as it
will go (1/4 inch / 6.4 mm). Slide ferrule
(sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled on
the tubing. Slide compression nut onto
valve inlet and finger tighten compression
nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See
Figure 2.
With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator as shown.
Coil excess water supply line (copper
tubing only), about 21/2turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
