Use & Care Manual

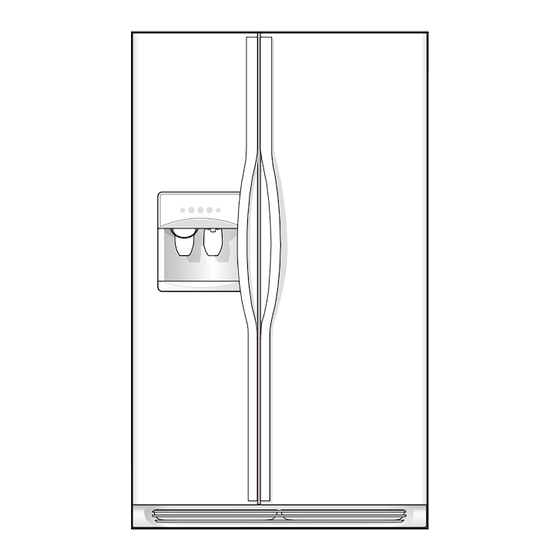

Side by Side
Refrigerator
Got Questions?
Need Parts or Service?
Before Calling Your
Local Repair Service - CALL:
Solutions Hotline
(United States)
1-800-944-9044
(Canada)
1-800-668-4606
√ √ √ √ √ Resolve many service issues over the
phone at your convenience!
√ √ √ √ √ If we can't resolve your service issue,
we'll schedule a reputable local
service technician for you!
√ √ √ √ √ Order Genuine Electrolux Parts &
Accessories
√ √ √ √ √ Purchase Extended Warranty
Protection
READ AND SAVE THESE INSTRUCTIONS
Important Safety Instructions ............. 2
Installation ............................................ 3
Connecting Water Supply .................... 4
Door Removal Instructions.................. 5
Temperature Controls ......................... 6
Automatic Ice & Water Dispenser ....... 8
Care and Cleaning ................................ 15
Warranty ................................................ 16
Before you Call ..................................... 17
Features at a Glance ............................ 21
PN: 241857500 (April 2007)
Advertisement
Table of Contents
Related Manuals for Frigidaire FSC23F7HS
Summary of Contents for Frigidaire FSC23F7HS
-
Page 1: Table Of Contents
Use & Care Manual Side by Side Refrigerator Got Questions? Need Parts or Service? Before Calling Your Local Repair Service - CALL: Solutions Hotline (United States) 1-800-944-9044 (Canada) 1-800-668-4606 √ √ √ √ √ Resolve many service issues over the phone at your convenience! √... -
Page 2: Important Safety Instructions
Such damage is not covered under your warranty. • Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally. IMPORT T T T T ANT IMPOR... -
Page 3: Installation
INSTALLATION LEVELING All four corners of your refrigerator must rest firmly on a solid floor. Your refrigerator is equipped with adjustable front rollers to help level your unit. To ensure proper door seal and assist door closing, the refrigerator should be tilted 1/4”... -
Page 4: Connecting Water Supply
To determine the length of copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown). -
Page 5: Door Removal Instructions
2 Pull the cover forward about a half inch and lift it off. To remove the refrigerator door: Cover Screw 1 Remove top hinge cover screw on refrigerator door and remove cover. (some models) Top Hinge Cover 2 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier. -
Page 6: Temperature Controls
ALLOWING COOLING TIME BEFORE USE To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory. - Page 7 TURNING THE COOLING SYSTEM ON AND OFF You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds.
-
Page 8: Automatic Ice & Water Dispenser
AUTOMATIC ICE AND WATER DISPENSER AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS Features may vary according to model. EXTREME To freeze food at a faster rate to preserve freshness, push the Touch Pad FREEZE activate this feature. A green light will appear above the Touch Pad. Push the Touch Pad for 3-5 seconds to deactivate. -
Page 9: Automatic Ice And Water Dispenser
To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply line and whenever you replace the water filter. CAUTION... - Page 10 If the auger is not properly aligned when replacing the ice bin, the refrigerator will only dispense Crushed Ice . The freezer door may also not close properly causing warm air to leak into the freezer.
- Page 11 Electrolux Solutions Hotline at 1-800-944-9044, or go to our web site at www.frigidaire.com. It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for the RG-100 PureSource™* replacement cartridge.
- Page 12 Electrolux Solutions Hotline at 1-800-944-9044, or go to our web site at www.frigidaire.com. It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for the FC-100 PureSource™* replacement cartridge.
-
Page 13: Replacing The Air Filter
Electrolux Solutions Hotline at 1-800-944-9044, or go to our web site at www.frigidaire.com. It would be beneficial to order some cartridges when you first install your refrigerator. Be sure and ask for air filter replacement cartridge, part... -
Page 14: Normal Operating Sounds & Sights
Your new high-efficiency refrigerator may make unfamiliar sounds. These are all normal sounds and soon will become familiar to you. They also indicate your refrigerator is operating as designed. Hard surfaces, such as vinyl or wood floors, walls, and kitchen cabinets may make sounds more noticeable. Listed below are descriptions of some of the most common sounds you may hear, and what is causing them. -
Page 15: Care And Cleaning
IMPOR If the refrigerator is going to be stored or moved in freezing temperatures, the water in the ice and water system must be drained completely. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation. -
Page 16: Warranty
Rust on the interior or exterior of the unit. Products purchased "as-is" are not covered by this warranty. Food loss due to any refrigerator or freezer failures. Products used in a commercial setting. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions. -
Page 17: Before You Call
Check house lights. Call local Electric Company. • It’s normal for the refrigerator to work longer under these conditions. • It takes 8-12 hours for the refrigerator to cool down completely. • Ice maker operation causes refrigerator to run slightly more. - Page 18 Saddle valve on cold water pipe is clogged or restricted by foreign material. BEFORE YOU CALL (CONTINUED) CAUSE • Warm air enters the refrigerator whenever the door is opened. Open the door less often. • See PROBLEM section OPENING/CLOSING OF DOORS/DRAWERS. •...
- Page 19 Very little food in freezer. • • • Ice has picked up odor or flavor from strong food stored in refrigerator or freezer. • • Water running to ice maker has poor taste or odor. • Ice not used frequently enough.
- Page 20 Clean drawer, rollers, and track. See Care & Cleaning Chart in Care and Cleaning section. • See Replacing Light Bulbs in Care and Cleaning section. • Light switch is located on side of refrigerator and freezer liners. • See PROBLEM section RUNNING OF REFRIGERATOR. •...
-
Page 21: Features At A Glance
FEATURES AT A GLANCE Features may vary according to model Mechanical Controls...
