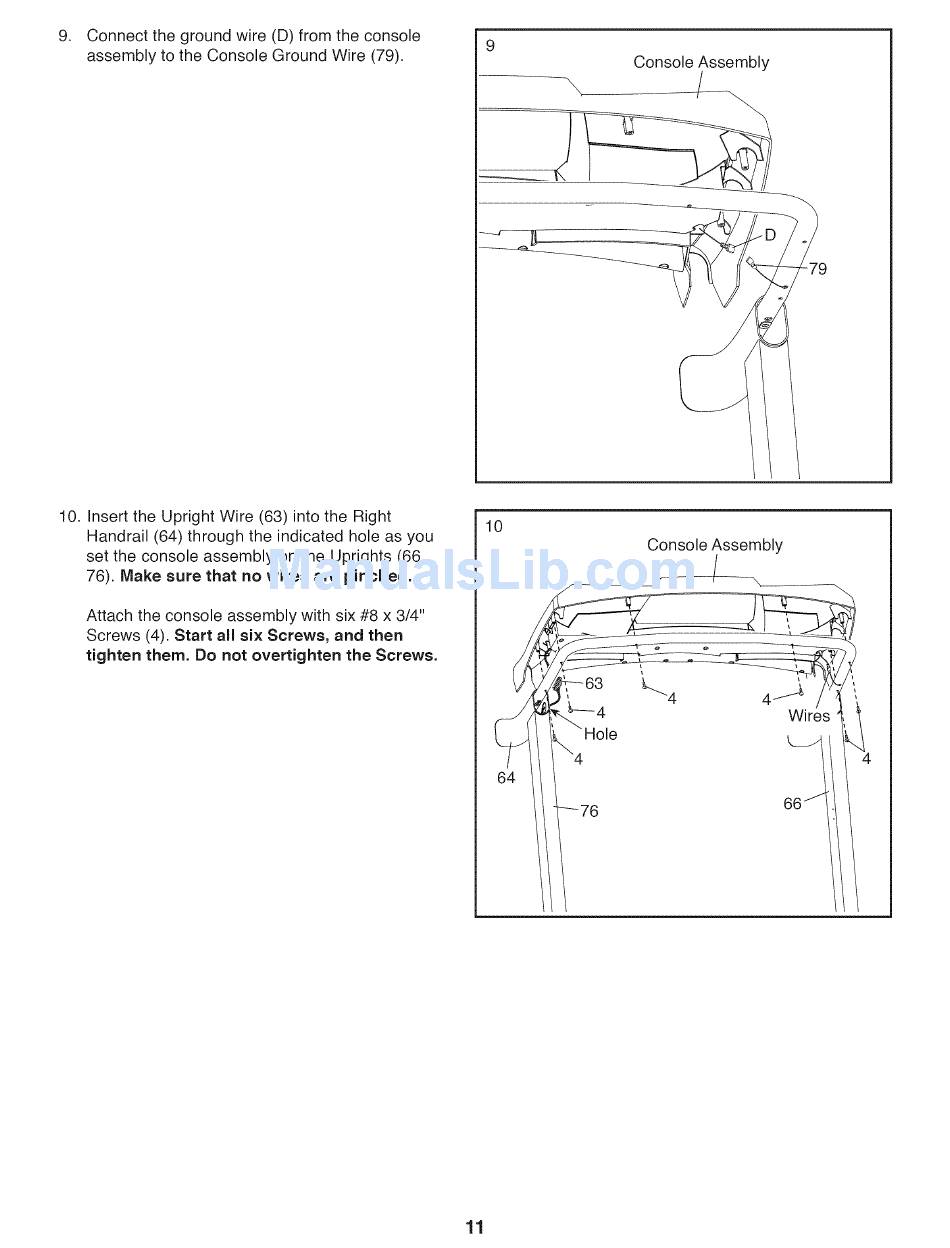

Connect the ground wire (D) from the console
assembly to the Console Ground Wire (79).
9
Console Assembly
10. Insert the Upright Wire (63) into the Right
Handrail (64) through the indicated hole as you
set the console assembly on the Uprights (66,
76). Make sure that no wires are pinched.
Attach the console assembly with six #8 x 3/4"
Screws (4). Start all six Screws, and then
tighten
them. Do not overtighten
the Screws.
10
Console Assembly
4
66
11
