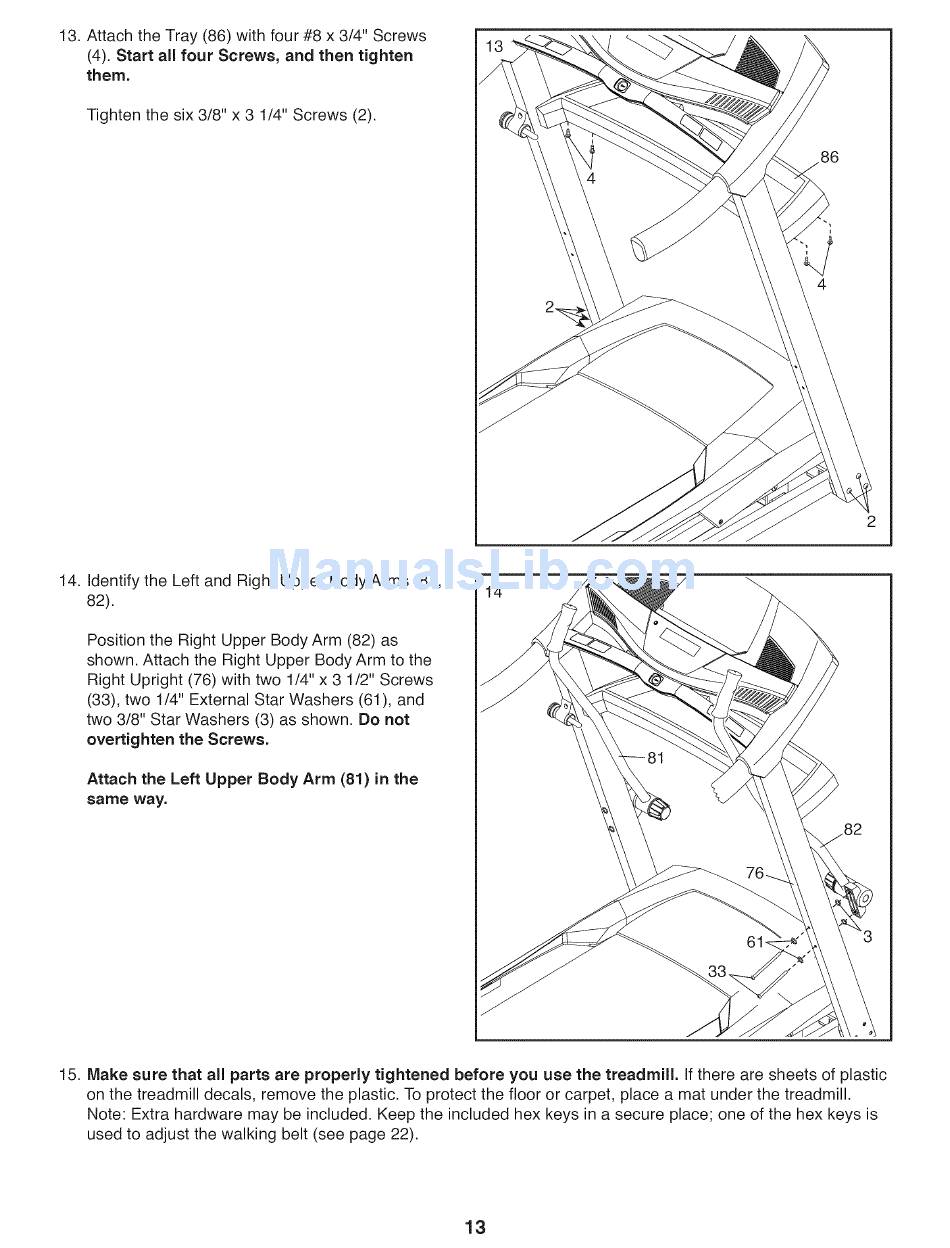

13. Attach the Tray (86) with four #8 x 3/4" Screws
(4). Start all four Screws, and then tighten
them.
Tighten the six 3/8" x 3 1/4" Screws (2).
86
14. Identify the Left and Right Upper Body Arms (81,
82).
Position the Right Upper Body Arm (82) as
shown. Attach the Right Upper Body Arm to the
Right Upright (76) with two 1/4" x 3 1/2" Screws
(33), two 1/4" External Star Washers (61), and
two 3/8" Star Washers (3) as shown. Do not
overtighten the Screws.
Attach the Left Upper Body Arm (81) in the
same way.
14
15. Make sure that all parts are properly tightened before you use the treadmill, if there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see page 22).
13
