Summary of Contents for Equinox Systems EQLED013

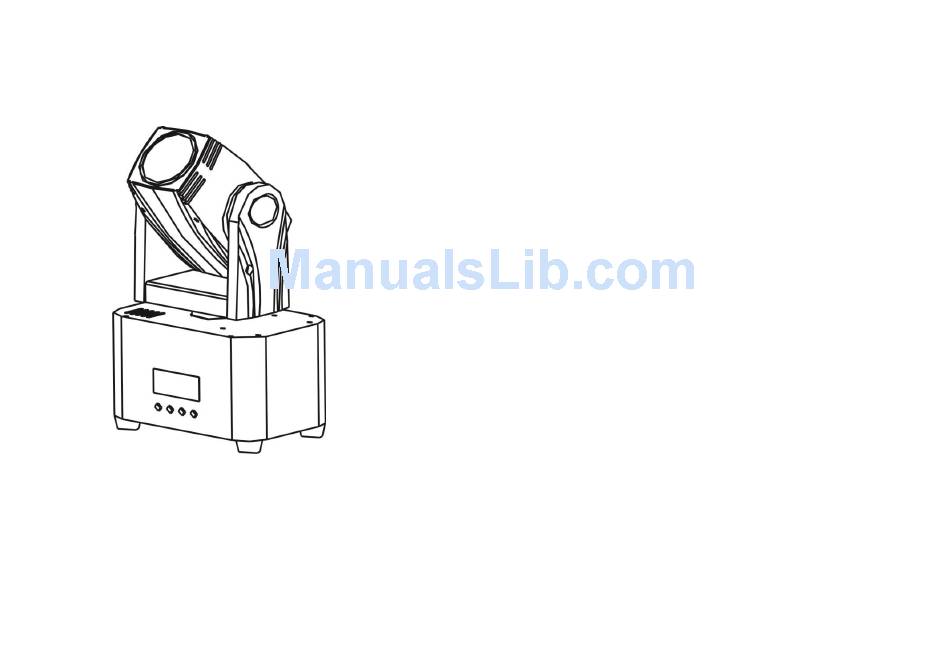

  • Page 1 EQUINOX Contents SLENDOR BEAM WHITE Safety Instructions Features & Specifications How To Set The Unit Troubleshooting Fixture Cleaning User Manual EQLED013...
  • Page 2 1. Safety Instruction Warning  To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Please read the instructions carefully as they include important Do not open the unit within five minutes after switching off. information about installation, usage and maintenance.
  • Page 3 The main functions are as below: 3. How To Set The Unit ADDR 001-512 3.1 Control panel CHND 1CH/7CH MAST SLND SHND Display Shows the various menus and selected functions Button SOUN MENU Selects the programming functions To go forward in the selected functions Menu SENS 000-100...
  • Page 4 go back to the functions without any changes press the MENU button again. DMX Address Setting Press and hold the MENU button for one second or wait for one minute to go back to the main menu. Press the MENU button to select .
  • Page 5 without any changes press the MENU button again. Press and hold the the mode (display normal), It will be automatically saved after 8 seconds. Press the ENTER button again to select the mode (display MENU button for one second or wait for one minute to go back to the main inversion).
  • Page 6 7 CHANNEL MODE: 4.2 DMX Controller By using a universal DMX controller to control the units, you will need to set a DMX address from 1 to 512 so that the units can receive a DMX signal. Channel Value Function Press the MENU button until is showing on the display.
  • Page 7 2. Check the microphone to see if it is good by tapping it. The microphone is located on the bottom plate of the unit. 5. Fixture Cleaning The cleaning of external optical lenses must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause a greater accumulation of dirt on the unit’s optics.
