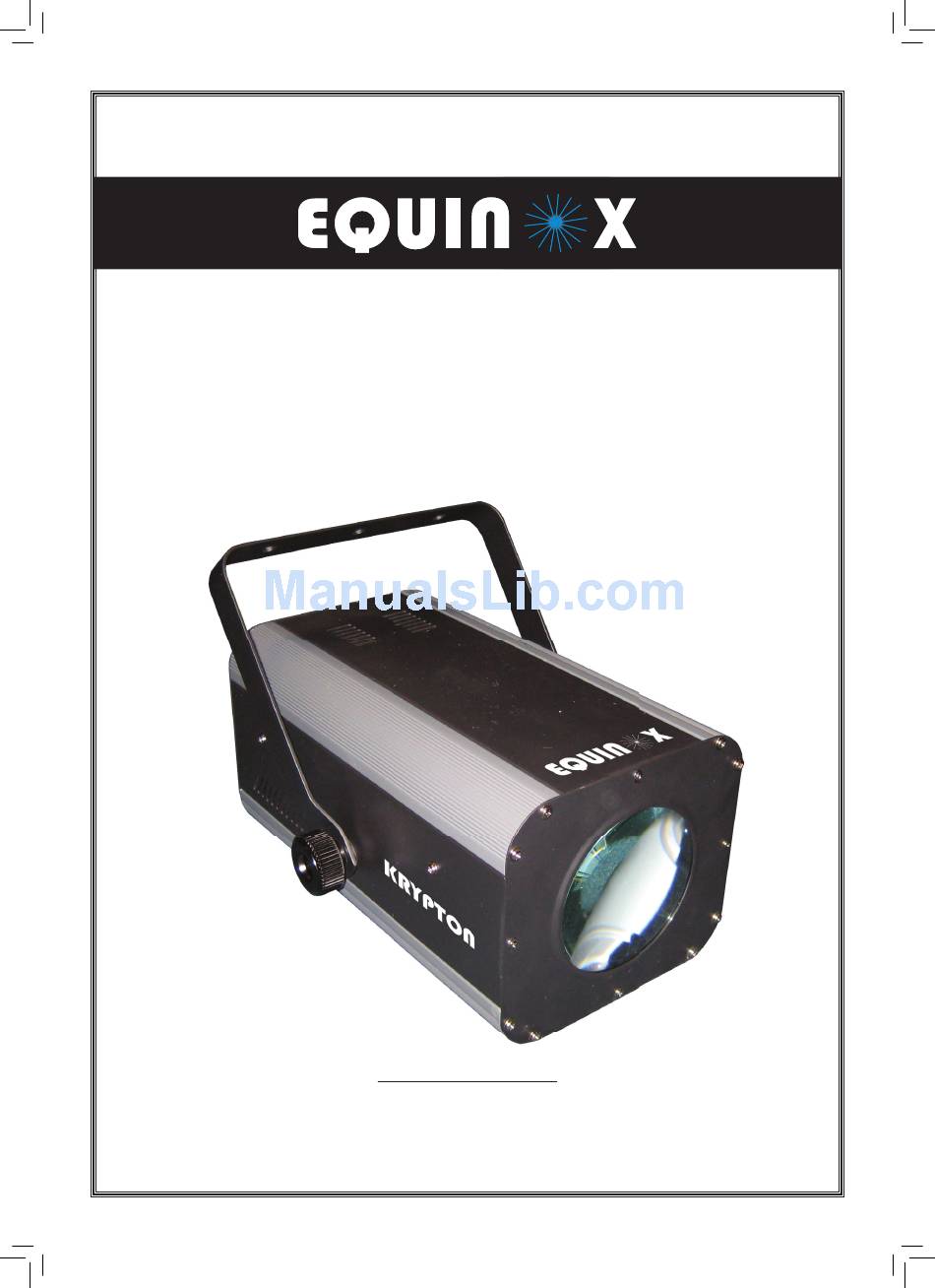

- Page 1 KRYPTON order code: EQLED21 user manual user manual w w w . p r o l i g h t . c o . u k...
-
Page 2: Safety Instructions
Equinox Krypton Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Equinox Krypton Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Technical Specifications
Equinox Kryton Technical specifications You should find inside the Equinox carton the following items: 1, Kryton Unit 2, Power cable 3, Instruction manual Technical Specifications: Voltage: AC 230 ~ 50Hz 27 Ultra bright 10mm LED’s (R: 9, G: 9, B:9) Dimensions: 370 x 175 x 155mm Weight: 3.6Kg Operating modes: 1, Stand Alone... - Page 5 Equinox Kryton DMX Tables DMX table: Channel DMX Number Function Dimming 000-027 3 colour change 028-055 7 colour change 056-083 Colour fade 084-111 Colour dream 112-139 Channel 1 140-167 Auto run 168-195 7 colour change via Sound active 7colour change dimmimg via 196-223 Sound active 7 colour change and 7 colour...
-
Page 6: Dmx Control Mode
Equinox Kryton DMX control mode DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. -
Page 7: Dmx Linking
Equinox Kryton DMX Set up DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 8 Equinox Kryton DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
-
Page 9: Dip Switch Position
Equinox Kryton Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
