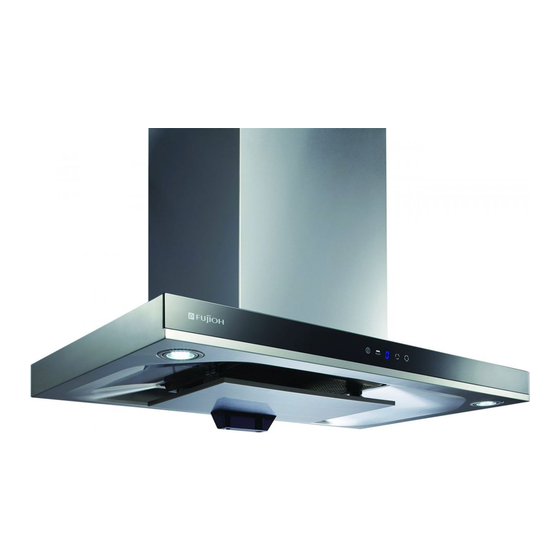

Summary of Contents for Fujioh FJS-900V
-
Page 5: Wiring Diagram
Wiring Diagram Brown High Yellow speed 220/230/240V Brown Blue 50Hz 50Hz-60Hz speed Green 8uF 500V Blue Black Yellow/Green White Black Name of Parts Upper duct cover Lower duct cover PCB cover Fan guard Fan cap Motor Fan casing Capacitor Exhaust port Elcetrical case base Case... -
Page 6: Installation Diagram
Installation 1. Hold the main unit in place, screw to avoid product drop (wooden screws) (fig-2), insert exhaust port and use ST3 2 8 mounting screws to fix it in place. 2. If installing an upper duct cover, first install the duct cover bracket at an appropriate height on the wall. -
Page 7: Operating Method
Connect Ø180 flexible duct to the exhaust port, then fix the exhaust port and the duct with two mounting screws (Ø3.2 x 8). Flexible Mounting screw duct (3.2 x 8) Note Make the length of the duct as short as possible. The longer the exhaust duct, the lower the ventilation. -
Page 8: Points To Note On Maintenance
This product s motor uses a overheat protector such that if there is an obstruction and its temperature rises to a stipulated heat the power source will be cut automatically to protect the unit from becoming damaged. If this occurs, inspect the unit and remove any obstructions. - Page 9 (12) The range hood is intended to be installed over a hob with up to four hob elements or burners, no more than total 5.2kW. 1 Hood surface cleaning After each use wipe the range hood s external surface with a soft cloth 2 Oil tray cleaning It is recommended that the oil tray be emptied regularly Filter cleaning...
- Page 10 Self-check In the event of any uncertainties or questions regarding repairs In the event of any uncertainties or questions regarding repairs please please consult the shop where you purchased this product consult the shop where you purchased this product Please stop using Please stop using cooker cooker...
-
Page 11: Service And Warranty
Service and Warranty When requesting repair： If any abnormality occurs while the cooker hood is in operation switch off the cooker hood to run, check the following points, disconnect the power plug from the receptacle and consult the shop from which you have purchased your cooker hood. (1) Whether the fuse in the circuit breaker has been burnt out? (2) Whether the power plug is not in proper contact with the receptacle? When consulting the shop, inform the shop the type/model of cooker hood requiring... - Page 12 Global website www.fujioh.com Southeast Asia Regional Headquarters FUJIOH INTERNATIONAL TRADING PTE LTD 130 Joo Seng Road #05 05 Singapore 368357 Tel: (65) 6286 3286 Fax: (65) 6285 3285 E-mail: fit@fujioh.com.sg...
