ELECTRIC START SYSTEM

Assembly

Apply a thin coat of light weight oil to the motor shaft.
Just enough to prevent rust.
Slip the pinion and spring on the shaft. Slide the pinion
stop on with the recessed side facing outward. Press
the lock ring on over the end of the motor shaft.

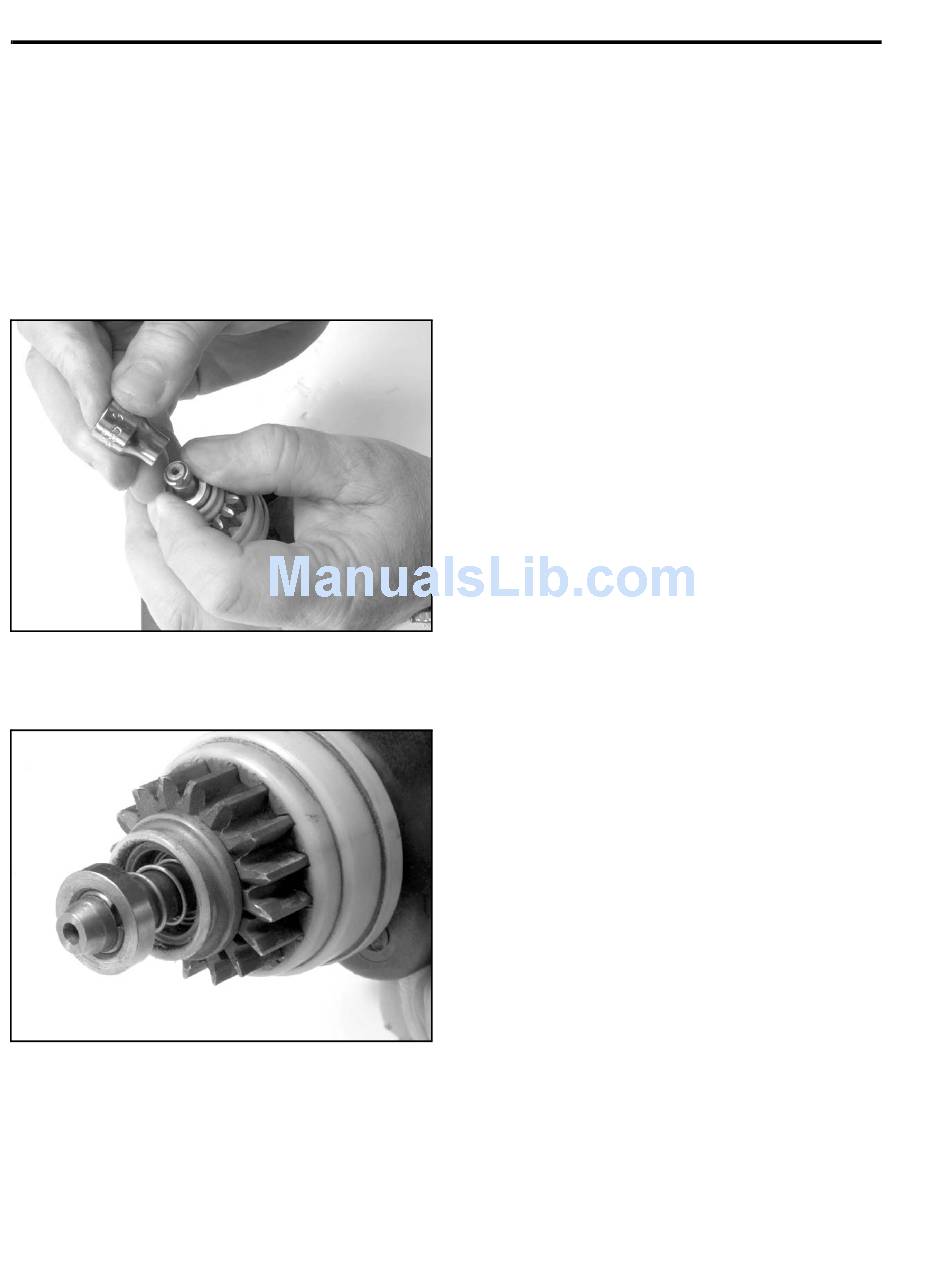

Sometimes a small socket helps when used like a seal
installer (Figure 71).
Figure 71
The pinion stop should come outward and keep the
lock ring from coming out of the groove (Figure 72).
Figure 72
Slip the starter motor back into place. Loosely install
the front/top mounting screw. then tip the machine
forward to install the bottom screw. Tighten both
mounting screws.
