Pivot Cable Replacement - Toro Snow Commander Service Manual

CHASSIS
The normal resting position is with the engine and rotor
to the rear. A spring connected between the engine
and wheel frame assures that the engine and rotor
return to the resting position when the controls are
released (Figure 76).

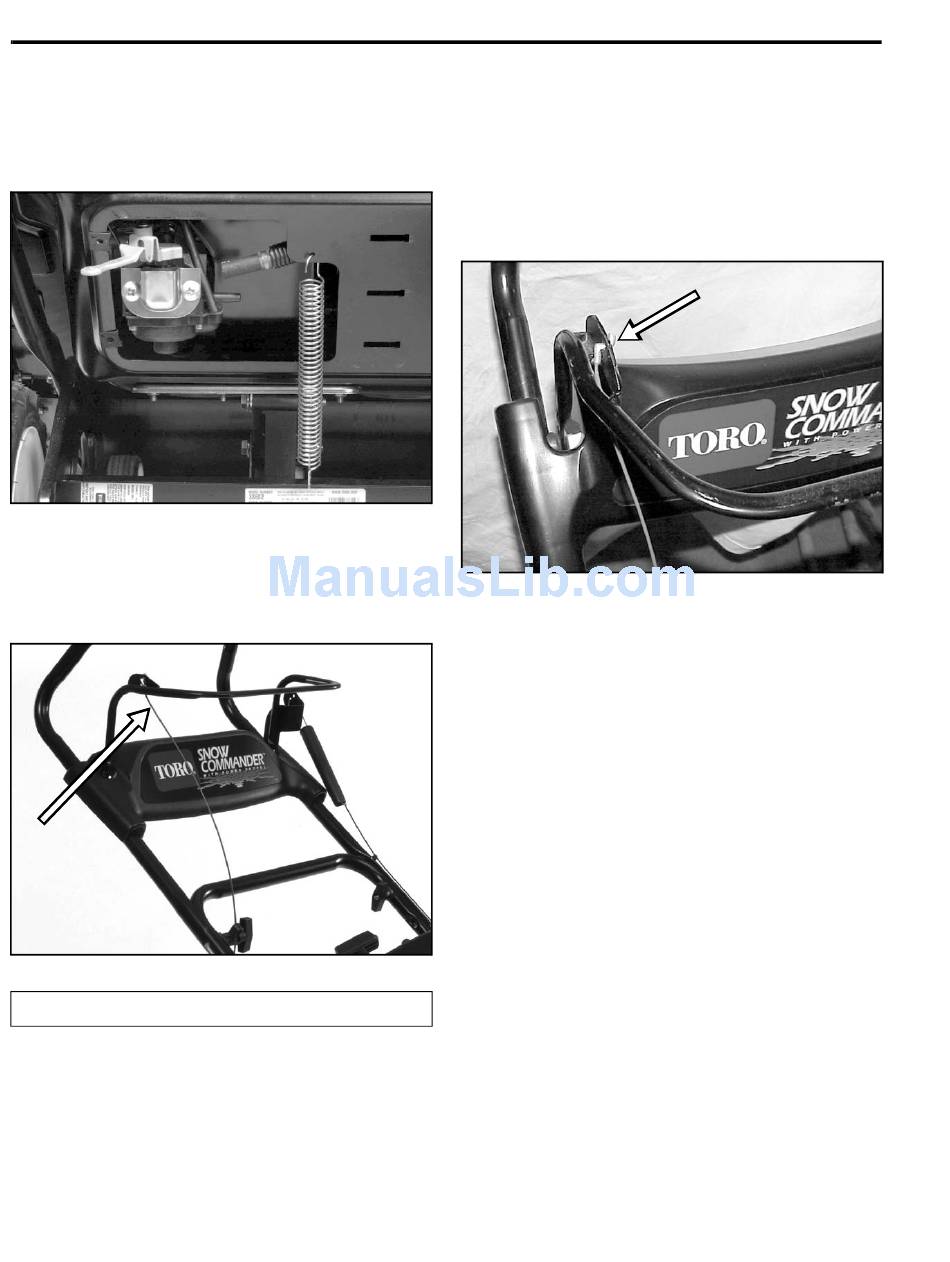

Figure 76
When the operator engages the bail, the cable that
runs down the right-hand handle causes the pivot
assembly to rotate and move the engine and rotor
frame (Figure 77).
A
Figure 77
(A) Pivot Cable
6 - 2

Pivot Cable Replacement

Replacement of the tilt cable requires no tools. Both
ends are made with a Z bend and can be removed by
hand only. Insert the Z bend into the handle as shown
in Figure 78. If the cable is not connected this way, it
will have a tendency to come unhooked from the
handle. See "Adjusting the Pivot Cable" on page 7 - 3.
3428-0211
3428-0199
Figure 78
Snow Commander Service Manual
mvc-492
