Figure 23

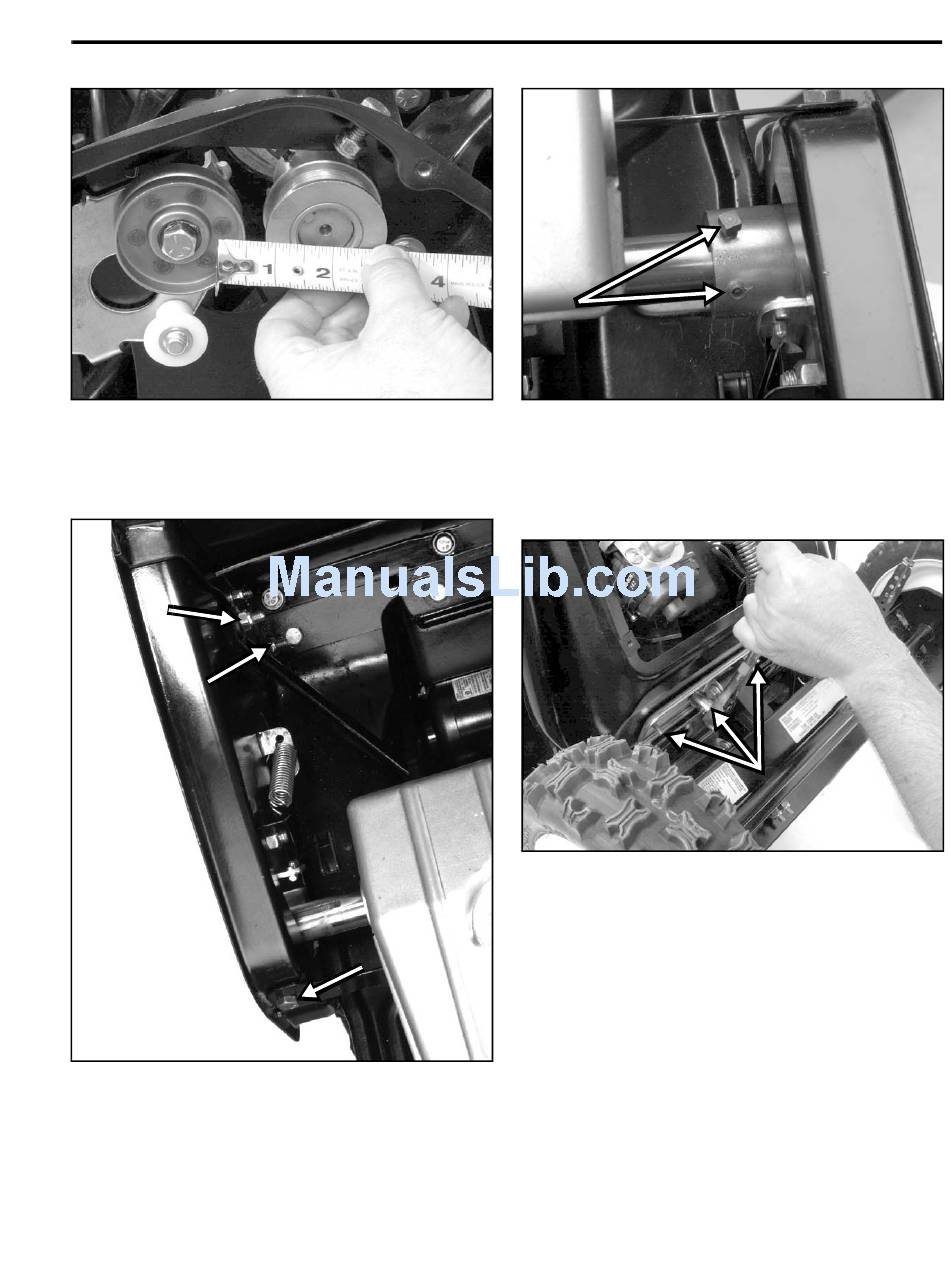

10. On the left side of the engine, is an engine brace
which is bolted to the side plate in 3 places (Figure
24). Remove all three bolts.
Figure 24
11. Remove the engine pulley. Loosen 2 set screws
and pull the pulley straight off (Figure 25).
Snow Commander Service Manual
ENGINE REMOVAL / INSTALLATION
3428-0232
12. Tip the machine forward and remove the 3
locknuts securing the center pivot bracket (Figure
26). They are on studs, so it will not be necessary
to try to hold the bolt head.
3428-0246
Figure 25
Figure 26
3428-0237
3428-0251
3 - 3
