MAINTENANCE
3. Ensure that a 1/8 to 1/4 inch (3 to 6mm) gap exists
between the control bar bracket and the handle as
shown in Figure 80.

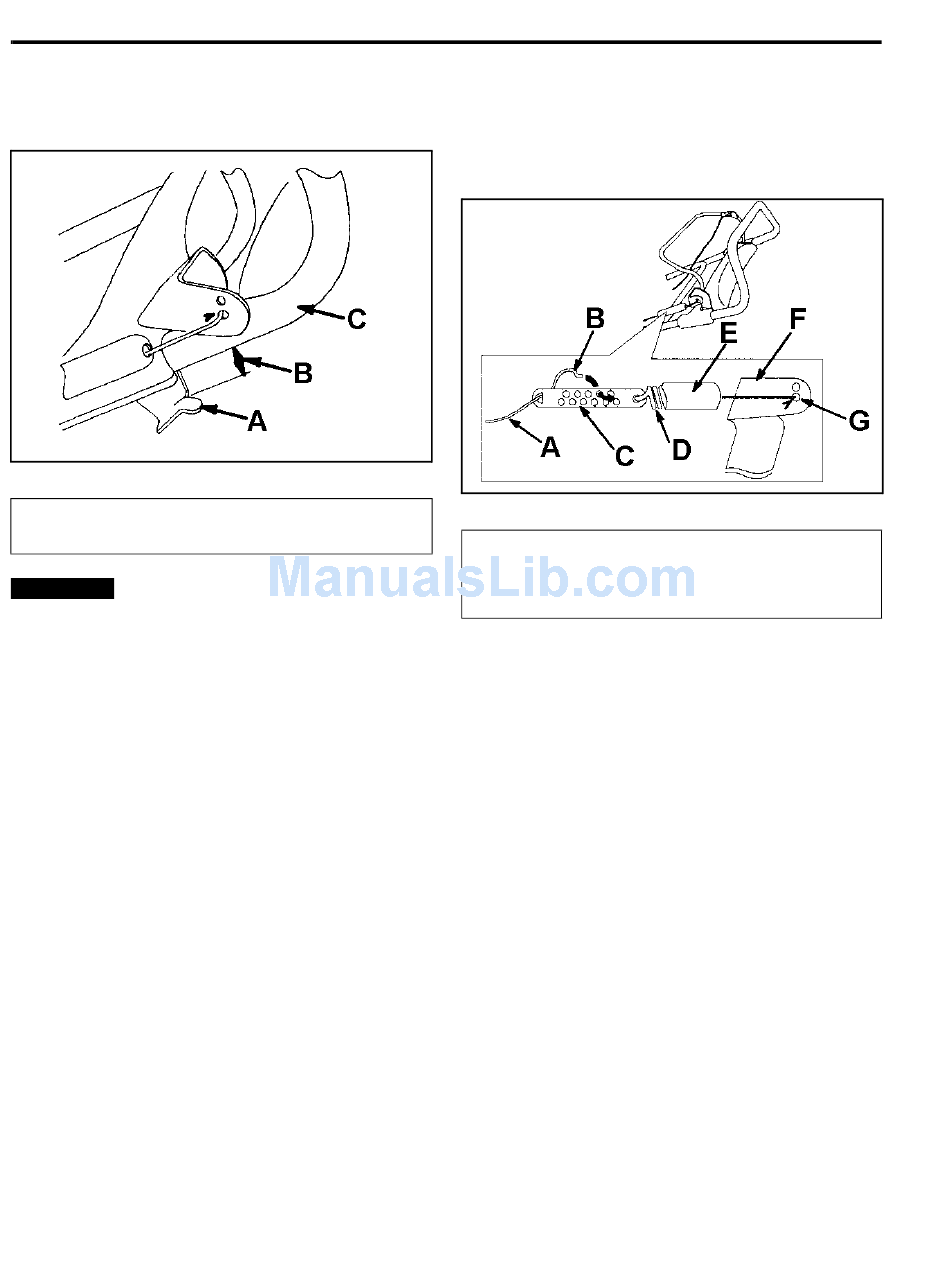

Figure 80
(A) Control Bar Bracket
(B) 1/8 to 1/4 in. (3 to 6mm) gap
The rotor control cable must have slack
Important
in it when you disengage
rotor brake to operate properly.
7 - 2
m-5069
(C) Handle
control in order for the
the bar

Adjusting the Rotor Control Cable

1. Unhook the spring end from the hole in the center
of the control bar bracket (G) as shown in Figure
81.
Figure 81
(A) Cable
(B) Z-fitting
(C) Cable Adjuster
(D) Spring
2. Slide the spring cover off the cable adjuster.
3. Unhook the Z-fitting from the cable adjuster
(Figure 81), and position it in a different hole on
the adjuster to obtain specified gap of 1/8 to 1/4
inch (3 to 6mm) between the control bar bracket
and the handle (Figure 80).
NOTE: Moving the Z-fitting to a hole closer to the
spring decreases the gap between the control bar
bracket and the handle; moving it to a hole farther from
the spring increases the gap.
4. Install the spring cover over the cable adjuster.
5. Hook the spring into the hole in the center of the
control bar bracket as shown in Figure 81.
6. Check the adjustment ("Checking the Rotor
Control Cable" on page 7 - 1).
Snow Commander Service Manual
m-5054
(E) Spring Cover
(F) Control Bar Bracket
(G) Hole in the center of
the control bar bracket
