Introduction

Read this manual carefully to learn how to operate and

maintain your product properly. The information in this

manual can help you and others avoid injury and

product damage. Although Toro designs and produces

safe products, you are responsible for operating the

product properly and safely.

Engine

The Toro Snow Commanders are powered by a high

output version of the R tek engine (Figure 1). The main

difference between the standard R tek and the version

used on the Snow Commander is in the piston and

cylinder.

The piston has two additional square ports (Figure 2),

which line up with two grooves machined in the

cylinder wall (Figure 3). As the piston goes down and

compresses the fuel/air charge in the crankcase, the

ports in the piston uncover the grooves in the cylinder

wall. This provides extra area for the fuel charge to

move to the firing chamber. The result is a larger fuel

charge, which makes more power.

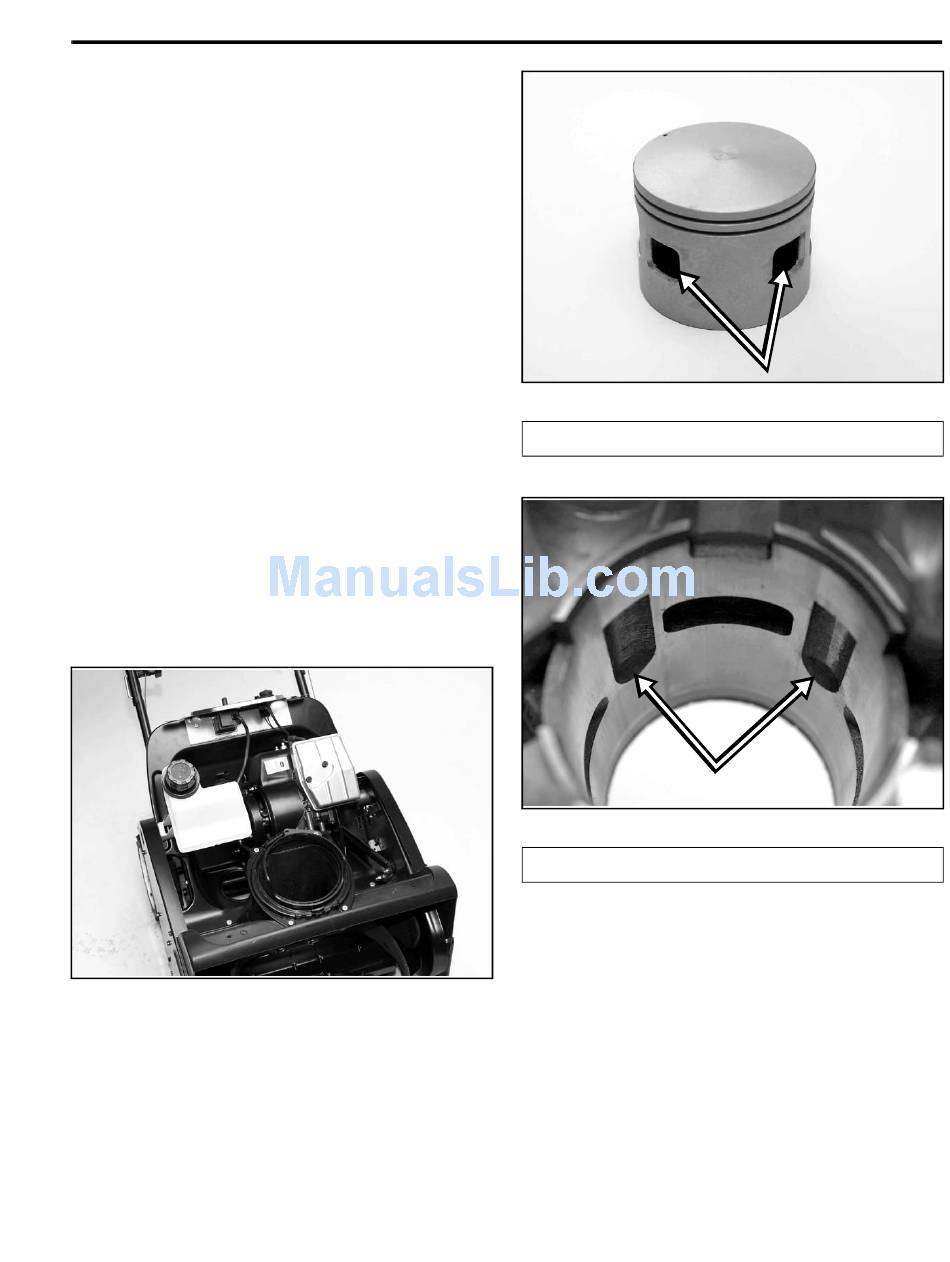

Figure 1

Snow Commander Service Manual
