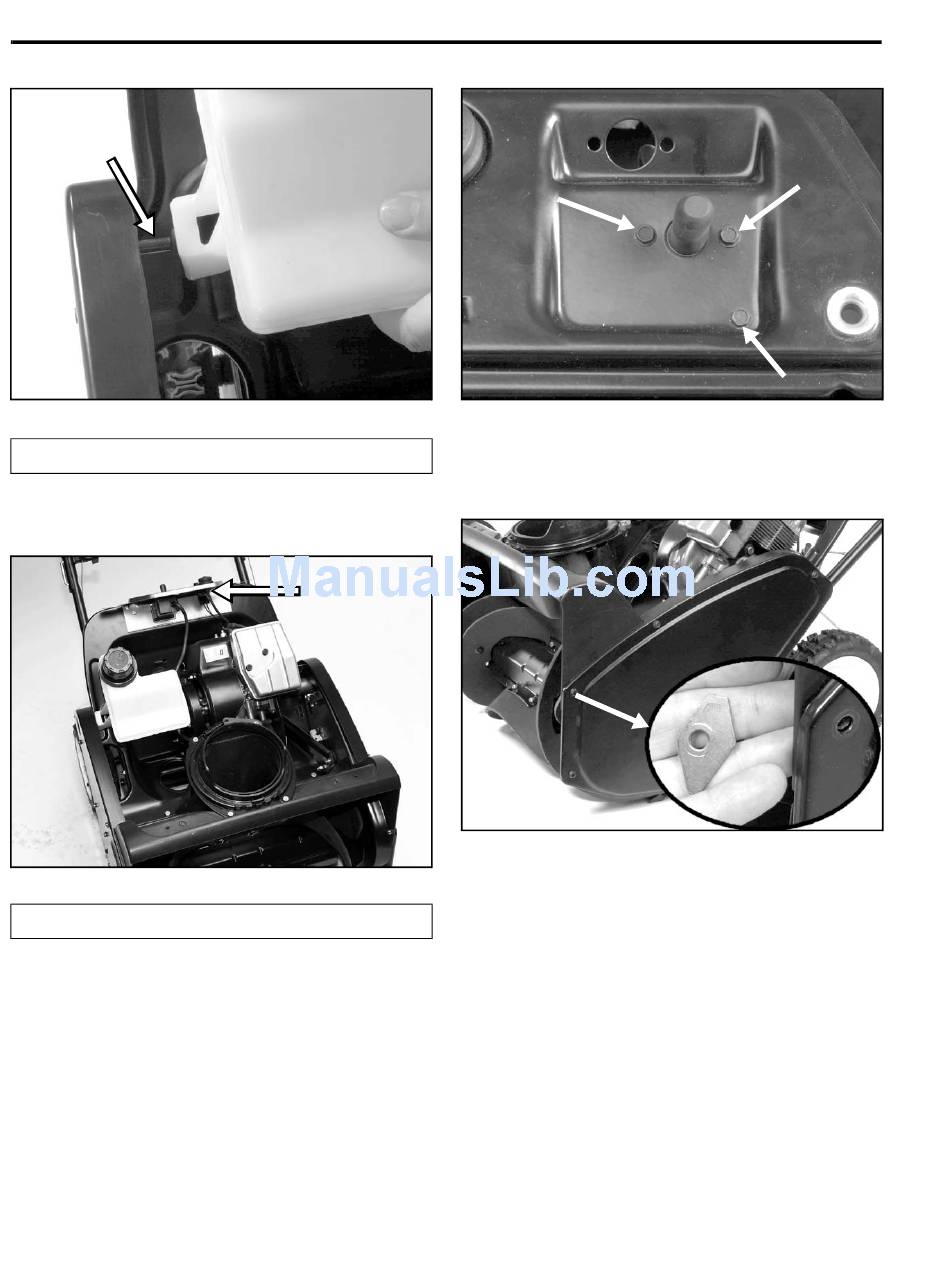

ENGINE REMOVAL / INSTALLATION
A
Figure 19
(A) Support Pin
6. Disconnect the primer line from the primer bulb
and the wires from the ignition switch (Figure 20).
Figure 20
(A) Primer and Ignition Switch
7. On electric start models, remove three screws
connecting the switch box to the control panel
support (Figure 21).
3 - 2
3428-0227
8.
A
9.
DSC-0138
Figure 21
Remove the belt cover (3 bolts and 2 screws)
(Figure 22). Some models were built with a
diamond shaped washer.
Figure 22
Remove the belt. Push the idler arm down as far
as it will go. Measure the distance between the
idler pulley and engine pulley at its closest point
(Figure 23). Make a note of this distance as it will
be needed during assembly.
