Hunt Electronic HBD-09EE User Manual

9 channels hybrid digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

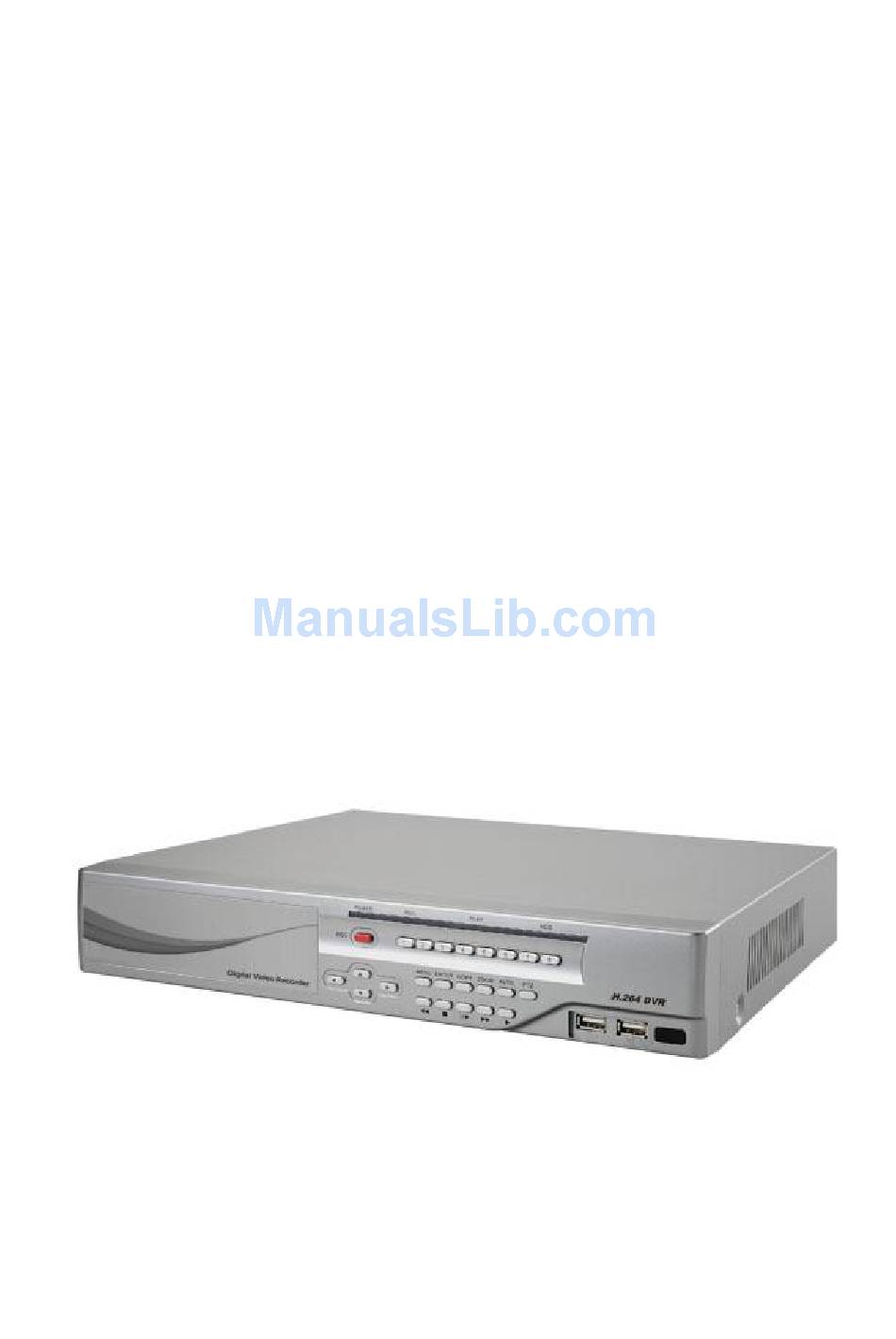

USER MANUAL

9 CHANNELS HYBRID
DIGITAL VIDEO RECORDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBD-09EE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunt Electronic HBD-09EE

Summary of Contents for Hunt Electronic HBD-09EE

  • Page 1: User Manual

    USER MANUAL 9 CHANNELS HYBRID DIGITAL VIDEO RECORDER...
  • Page 2 INSTRUCTION MANUAL To obtain the best performance and ensure device function correctly, please read this instruction manual carefully and completely. FCC Compliance USER-INSTALLER CAUTION: YOUR AUTHORITY TO OPERATE THIS FCC VERIFIED EQUIPMENT COULD BE VOIDED IF YOU MAKE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE TO PART 15 OF THE FCC RULES.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........................4 FEATURES ........................4 SPECIFICATIONS ......................4 HARDWARE OVERVIEW ...................... 9 FRONT PANEL ......................9 BACK PANEL ......................10 ALARM TRIGGER ..................... 11 CONNECTION OF ALARM IN ................12 NETWORK ENVIRONMENT RECOMMENDATION ......... 13 PTZ (PAN, TILT AND ZOOM) CAMERA ............... 13 SYSTEM SETUP ........................
  • Page 4 Up to four online clients for independent remote control; individual live-time, play-back & time-search function available  Support PPPoE/ Static/ DHCP IP & DDNS.  Powerful mobile surveillance functions, support i-Phone & Android SPECIFICATIONS MODEL HBD-09EE System Embedded Linux Ethernet RJ-45, 10/100/1000 Mbps x1 Video Connector VGA x1 / HDMI x1 output Front : USB 2.0 x2...
  • Page 5 Power DC-12V, 5A Video and Audio IP Cam Video Input Max 3 channels IP Cam Resolution Up to 5 Megapixel IP Cam Frame rate Up to 30 FPS @ NTSC per CH Analog Video Input Max 8 channels 960H 960 x 480 (NTSC); 960 × 576 (PAL) Analog Resolution 720 x 480 (NTSC);...
  • Page 6 360 x 240 (NTSC); 360 x 288 (PAL) 960H Up to 30 FPS (NTSC); Up to 30 FPS (PAL) Up to 30 FPS (NTSC); Up to 30 FPS (PAL) Recording Rate Per Channel Half D1 Up to 30 FPS (NTSC); Up to 30 FPS (PAL) Up to 30 FPS (NTSC);...
  • Page 7 0 - 45 ℃ / 32~113 F Operating Temperature Humidity 0~80% RH (non-condensing) Language English / Traditional Chinese / Simple Chinese / Russian / Type Italian / Japanese / Czech / France / Germany / Spanish / Portuguese Physical Color Silver Dimensions (W x H x D) 360mm X 60mm X 311mm...

  • Page 8: Hardware Overview

    HARDWARE OVERVIEW 2.1 FRONT PANEL POWER PLAY 11 12 MENU ENTER COPY ZOOM MENU ENTER COPY ZOOM AUTO AUTO Hybrid DVR OPERATION LABEL OPERATION Recording Button Press for displaying Channel 1~9 Up, Down, ▲▼◄► Switch channel buttons Left, Right CONTROL Menu, Enter, Copy, Zoom, Auto and PTZ Button.

  • Page 9: Back Panel

    BACK PANEL eSATA VGA OUT Ethernet DC 12V Audio In Video In HDMI D+ D- RS-485 Alarm In Relay LABEL OPERATION AUDIO OUT Audio Output eSATA eSATA connector VIDEO OUT Connect to LCD monitor (VGA) POWER Connect to power adapter (DC 12V) VIDEO OUT HDMI video output (HDMI)

  • Page 10: Alarm Trigger

    ALARM TRIGGER There are four types of alarms: Motion detection, Video Loss Alarm, External Alarm, and Digital Input from Camera. The following are the possible actions when the alarm is triggered. Every action is configurable (Ex. the screen display pattern, the relay triggered time.etc) and will be explained in the later chapter.

  • Page 11: Connection Of Alarm In

    CONNECTION OF ALARM IN RS-485 D+ RS-485 sends +/ receives + RS-485 D - RS-485 sends -/ receives - ALARM IN 1-8 Camera alarm input. Relay N.C. Relay N.O. Relay COM EX1：Connect GND & Alarm to external IR detector.

  • Page 12: Network Environment Recommendation

    EX2：Connect N.O & COM to external siren. Depending on the external device type, you may connect N.C & COM to external device. 2.5 NETWORK ENVIRONMENT RECOMMENDATION When setting up 4Mbps per channel, it’s not recommended to connect all 25 IP cameras under a 10/100 switch.
  • Page 13 FOR 16 CHANNEL Model Under “Two Core” connection, the controller can control the speed dome without any built-in protocol into the Hybrid DVR. Moreover, one keyboard can be connected to a of MAX 256 units.

  • Page 14: System Setup

    SYSTEM SETUP MENU SETUP INTERFACE(GUI) CAMERA SETUP RECORD SETUP ALARM SETUP NETWORK SETUP...
  • Page 15 AUTHORITY SETUP DISK MANAGEMENT SYSTEM SETUP EXIT...

  • Page 16: Live Viewing And Pop-Up Menu (16Ch Model)

    LIVE VIEWING AND POP-UP MENU (16CH model) NOTE：*The pop-up menu can be activated by moving the mouse cursor to the bottom of the live viewing screen. GUI MENU BAR On live viewing mode, press this button to get into the GUI menu. DISK INFORMATION On live viewing mode press this button to display disk information.
  • Page 17 DIGITAL ZOOM In the live full screen mode, left-click the button of the mouse to pull a range to zoom in or zoom out the image. The user can right-click the button of the mouse to disable this function. (NOTE: When using the mouse for operating digital zoom, the image can be zoom-in to max.
  • Page 18 E-PTZ Steps: (1) Select the channel number you want to setup, if there are several ones. (2) Select the View Mode, 360 degree or 180 degree. (3) Select the camera location, ceiling, desk, or wall. (4) Select split screen pattern : 360 degree panorama view + sub screens x4 : 180 degree flat view + sub screens x2 : sub screens x4...
  • Page 19 AUTO SWAP Press it to start switch dwell. The interval depends on the setting in IP Cam Image Setup when it’s on single channel view. For split screen the switch dwell interval is 5 sec. DISPLAY CONTROL Within live-viewing or playback mode, use display control to switch the camera channel. RECORD AND PLAYBACK CONTROL Same as front panel controller.

  • Page 20: Camera Setup

    setup is enabled, the playback video includes audio even if the sound output is turned off. M. RECORDING STATUS Beneath the date and time, it displays the current recording type: Record mode: Schedule – NO REC period Record mode: Schedule – ALARM REC period Record mode: Alarm trigger Record mode: Manual –...
  • Page 21 A. IP Cam Setup A-1. IP Cam Quick Search Press the “IP Cam Quick Search” button and click the “Search Device” button. The Hybrid HYBRID DVR will search the IP CAM devices which IP address are setup as the same domain as the Hybrid DVR IP address. Moreover, by clicking on the IP Cam on the list will import the device information to the channel automatically without any manual key-in step.
  • Page 22 A-2. Normal Mode 1. Enable: Choose “Normal Mode” 2. IP Address：Insert the IP address of the connecting device. 3. Port：Insert the port number of the connecting device. Default port: 80 4. User：Insert the user name of the connecting device. 5. Password：Insert the password of the connecting device. 6.
  • Page 23 key-in the corresponding values of two streams in “RTSP Path 1” and “RTSP Path 2”. Note: When you select RTSP mode, make sure the substream resolution of camera is VGA(640x480), otherwise you will receive the warning message when you try to connect to the camera: Examples of some RTSP settings: RTSP Path 1 RTSP Path 2...
  • Page 24 "RTSP Path 1") both single channel view mode and split screen mode. 640 X480 1920 x 1080 Hybrid DVR takes 1920x1080 streaming for single channel view, and 640x480 streaming for split screen. Error Message: ”Invalid Substream 1920 x 1080 1920 x 1080 Resolution! Please modify IP Cam.”...
  • Page 25 B. IP Cam Video Setup B-1. Resolution Click the drop down list to change the resolution of connecting device. B-2. Quality Click the drop down list to change the image quality. For H.264 IP Cam above 1 Megapixel, the resolution options support “1M, 2M, 4M, 6M, 8M”.
  • Page 26 C. IP Cam Image Setup C-1. Display Use the mouse to enable or disable the camera display on the screen. C-2. Title Use the mouse to setup the title of the connecting IP device. C-3. Contrast Press ◄ or ► to change contrast level. The adjustment value is between 0~255 C-4.
  • Page 27 D. Motion Setup D-1. Relay Dwell Press ◄ or ► to change the relay time or disable the relay function. D-2. Buzzer Dwell Press ◄ or ► to change the buzzer time or disable the buzzer function. D-3. Area1 Sensitivity Press ◄...
  • Page 28 After dragging an area, right-click and select “Exit with saving” to complete the area setup. Select “Enable All” to set up global motion detection. Select “Clean All” to clean the area of the current color in the view. Select “Exit Without Saving” to go back to motion setup menu and not saving any change.
  • Page 29 After dragging an area, right-click the mouse, select “Exit with saving” to complete the area setup. Select “Enable All” to set up global masking. Select “Clean All” to clean the area of the current color in the view. Select “Exit Without Saving” to go back to mask setup menu and the setting you just changed will not be saved.
  • Page 30 G-1 Key-in information manually All the channel list are displayed. You can key-in the IP address, port, and user name & password of the IP camera, and then assign the channel number. Tick “Enable” to connect to the IP camera. G-2 IP CAM Quick Search With Quick Search, you do not need to type the IP address.

  • Page 31: Record Setup

    The IP Cam has to be under the same LAN with Hybrid DVR in order to connect successfully. Ex. If the Hybrid DVR IP address is 192.168.10.33, the IP Cam IP address should be 192.168.10.X. You can edit the IP Cam IP address here or on the IP Cam.
  • Page 32 1. Manual: Click to start recording. Click to stop recording. 2. Schedule: a. Schedule Setup: Click the tag “Full Recording”(Red) / “Alarm Recording”(Yellow) / “No Recording”(Green), and then draw on the calendar. The recording type will follow the schedule. The tag “Alarm Recording” includes all the alarm types. b.
  • Page 33 c. FTP Schedule Setup: Select the time that the recording video is uploaded to FTP. No file will be uploaded during “NO MAIL” time period even the motion detection is triggered. The tag “ALARM FTP” refers to both external alarm and DI from camera. 3.

  • Page 34: Alarm Setup

    ALARM SETUP A. Alarm Trigger Setup A-1. Alarm Auto Switch Use the drop down list to switch the alarm auto switch. When the alarm is triggered, the screen will switch to full screen, split screen (25CH split screen) or disable. A-2.
  • Page 35 A-5. Ext. Alarm Mode Use the drop down list to switch the external alarm mode. If the external alarm is setup for normal open, the option has to switch to N.O.; for the contrary, the option has to switch to N.C. B.
  • Page 36 D. Alarm Action and Trigger Condition List Action \ Type Motion detection External Alarm DI (IP CAM) Video Loss Necessary Condition Alarm Setup Alarm Setup Alarm Setup >>Alarm Camera Setup >>Motion >>Alarm Trigger >>Alarm Trigger (All the actions below Trigger Setup >>"Ext. can be execute only Setup >>Tick "Area 1/2/3"...
  • Page 37 Action \ Type Motion detection External Alarm DI (IP CAM) Video Loss Pre- / Post-alarm Pre-:O Post-:X Recording Condition 1: Network Setup >>Mail(/FTP) Setup >>Tick "Motion(/Alarm)"; And Record Setup >>"Record Mode" set to "Manual"; And it's on recording when alarm is triggered Condition 2: Network Setup >>Mail(/FTP) Setup >>Tick "Motion(/Alarm)";...

  • Page 38: Network Setup

    NETWORK SETUP A. IP ADDRESS SETUP LAN 1 & LAN 2 Setting This HYBRID DVR support two Ethernet. You can set different IP addresses for LAN 1 and LAN 2, both IP addresses can be used to access the HYBRID DVR. You can also use the function to share the bandwidth loading between two Ethernets.
  • Page 39 A-1. IP Mode Press the drop down list to change IP mode to Static IP or DHCP. A-2. IP Address Provide the HYBRID DVR IP Address. A-3. NetMask Provide the subnet mask. Usually set to 255.255.255.0. A-4. Gateway Provide the HYBRID DVR gateway. Global Settings A-5.
  • Page 40 B. PPPoE SETUP B-1. PPPoE Setting Press the drop down list to enable or disable PPPoE. B-2. User Name Insert the user name (ADSL account) which provided from local ISP. B-3. Password Insert the password which provided from local ISP. B-4.
  • Page 41 C. DDNS SETUP C-1. DDNS Enable Click the checkbox to enable or disable the DDNS function. C-2. Provider Click the drop down list to select the DDNS provider. C-3. Host Name Insert the registered host name in the selected provider. C-4.
  • Page 42 DDNS registered successfully, now log by http://<username>.ddns.camddns.com: Registered successfully. Updating Failed: the name is already registered. Updating Failed: please check your internet connection. D. MAIL SETUP D-1. Enable Tick “Alarm” to send video to the mail address when external alarm or DI from IP Cam is triggered.
  • Page 43 D-6. Sender’s Mail The sender’s account when send the mail via this mail server. D-7. Receiver’s Mail The receiver’s mail address. D-8. BCC Mail The receiver’s mail address for Bcc Mail. D-9. Subject The subject while sending the mail. D-10. Secure Connection When ticked the user can choose between SSL or TSL E.
  • Page 44 E-2. Power On Will send a notification via email when the HYBRID DVR starts or reboots. E-3. Start Record Will send a notification via email when the HYBRID DVR starts recording. E-4. Record Error Will send a notification via email when the recording failed (usually represents hardware failed in the HDD).
  • Page 45 F-2. FTP Server The IP address of FTP Server. F-3. User Name The username while log in to the ftp server. E-4. Password The password while log in to the ftp server. E-5. FTP Port The port number of file transmission. (Default value is 21) E-6.
  • Page 46 G-2. Start IP Address Use the virtual keypad to insert the start IP Address of DHCP server. G-3. End IP Address Use the virtual keypad to insert the end IP Address of DHCP server. G-4. Lease Time Press ◄ or ► to change the lease time of DHCP server. H.
  • Page 47 I. HTTP Notification Setup I-1. Enable Use the checkbox to enable or disable HTTP Notification. This function allows users to set up the CGI command to a HTTP server. The server can be any device that can receive CGI via HTTP protocol. When any alarm events occur, the HYBRID DVR sends the CGI to that server.

  • Page 48: Authority Setup

    AUTHORITY SETUP A. HDD Format Use the checkbox to enable or disable the authority of the HDD Format function. If this function is enabled, the user has to insert the password while performing the HDD formatting. B. Anonymous User Login Use the checkbox to enable or disable the authority of the anonymous user login.
  • Page 49 F. User Management The administrator can setup the user management permission and the user authority management. F-1. Permission Use the mouse for clicking the checkbox to modify and alter the user authority.

  • Page 50: Disk Management

    F-2. Add User After clicking the button, the setup page will be called-out as the following. The administrator can distribute the authority and the permission for the new user. DISK MANAGEMENT...
  • Page 51 A. Overwrite Mode Select “ON” for the oldest recording data to be overwritten by new recording data. Select “OFF” for the HYBRID DVR stop writing recording data into HDD when the HDD is full. B. Hard Disk Full Warning Under non-overwrite mode, click the drop down list to change value to 20%/ 15%/ 10% or 5% .

  • Page 52: System Setup

    F. Format HDD Insert the user name and password while performing the HDD format function. SYSTEM SETUP A. HYBRID DVR Name Use the virtual keypad to insert the name of the HYBRID DVR. B. HYBRID DVR ID Use ◄ or ► to setup the HYBRID DVR ID. The adjustment value is between 0~32...
  • Page 53 C. Language Use the drop down list to change the HYBRID DVR language. Currently, there are English, Traditional Chinese and Simplified Chinese as the available three options. D. Date Format Use the drop down list to change DATE. There are three modes: DD/MM/YYYY, YYYY/MM/DD and MM/DD/YYYY.
  • Page 54 H. Time Setup button within the “Time” block for adjusting and synchronize the Click the time of the HYBRID DVR as the system time of the PC. Moreover, if the user clicks the button within the “NTP Setup” block, the time of the enable checkbox and the HYBRID DVR will be synchronized as the NTP Server.
  • Page 55 I. Day Light Saving Time After enabling the daylight saving time function, the user can use the drop down list to select the start time and the end time of daylight saving time. After complete the setting, please click the button to save the settings.
  • Page 56 3. EX DEBUG MESSAGE The purpose of the following procedure is to export a HDD debug message file. If the user has problems with the HYBRID DVR, the technician can analyze the file and find the cause of problem.  Plug in a USB disk.
  • Page 57  Key-in “@k” in the user name column to login. No password is required.  The screen turns to the Advance Setup page. Click download. It takes about 10 seconds to export the file.  When the downloading is complete, a message pops up to remind the user. Click” OK”.
  • Page 58  Now the debug message file should have been in your USB disk. Please turn the file” dbgms.tar” to the technician.

  • Page 59: Hybrid Dvr Playback

    HYBRID DVR PLAYBACK (16 channels model) Note: Under playback mode, the sound output is only enabled on full screen mode. RECORD BACKUP On playback mode, press this button to backup recording (.ha0 video) to the USB disk .Press this button again to finish the backup. To perform a single image backup (.jpg first and then click the “Record Backup”...

  • Page 60: Time Search

    DISPLAY CONTROL Within playback mode, use the display control to switch the camera channel. DIGITAL ZOOM On live full screen mode, left-click the button of the mouse to pull a range to zoom in or zoom out the image. The users can right-click to disable this function. (NOTE: By using the mouse to operate digital zoom, the image can zoom-in to max.

  • Page 61: Event Search

    EVENT SEARCH After entry to the event search page, the user can click the event log item which is shown on the list for starting playback. Moreover, the user could click the button to select the specific event option to filter the event option shown on the list.
  • Page 62 BACKUP After clicking the backup button, the user could use the drop down list to select the storage device, the backup time selection mode and time. Please click the button to start backup. TIME MODE Click ◄ or ► to select the start and end backup time. Moreover, click the button to select the channel which is going to backup.

  • Page 63: System Log

    SYSTEM LOG The system log holds all of the system records. The maximum quantity of records is 2000. Click the button to perform further data filter actions. After completing the specific item selection, click the button to save the settings. When returning to the system log page, it will only reveal the specific selected items.

  • Page 64: Backup Playback

    BACKUP PLAYBACK SYSTEM REQUIREMENT CPU: Intel Celeron 1.6G MEMORY: 256MB. VGA: 32MB VGA RESOLUTION: 1024 x 768. OS: Windows XP / 2000 or above SUGGESTED REQUIREMENT CPU: Intel P4 2.8G MEMORY:512MB or above VGA:64MB or above VGA RESOLUTION:1024 x 768 OS: Windows XP / 2000 or above NETWORK BANDWIDTH: Upload Speed is 256kbps or above MAIN SCREEN SETTING...
  • Page 65 Playback Control Select video source Channel Selected Save as AVI Time & Event Search Channel Division Screen B. HDD PLAY 1. Remove the HYBRID DVR HDD and connect it to the PC. The HYBRID DVR HDD uses a Linux format, so the Windows system may not read it. Please use the software “Ext2Fsd”...
  • Page 66  Click “Add”  Assign a letter to the HDD, then click “OK” so that the HDD get a drive letter and can be recognized by Windows.
  • Page 67 2. Under HDD play mode, select the HYBRID DVR HDD to load the video file in the HDD. C. File Play 1. You can use D6Viewer to open a single video backup file. Under file play mode, select "Open".

  • Page 68: Playback Operation

    2. Choose the path the .haX file reserved and pick the file to playback. 3. Press the play icon to play the video or pause picture. PLAYBACK OPERATION A. TIME SEARCH Select the Date and Time and then click to play the video.
  • Page 69 B. EVENT SEARCH After pressing the button, it will display all the events which are saved within the HYBRID DVR HDD (Shown in the following image). C. LOG Click to check the log records.
  • Page 70 D. ZOOM Tick the “Zoom” box and drag an area on the screen. Click the area to zoom in.

  • Page 71: Network Viewing & Playback

    E. BACKUP FILE TO AVI 1. Select the specific channel to backup. 2. During video playback mode please press the button to start. 3. Make up a filename and path than press the button to start the AVI backup. 4. Press the button to finish the backup.

  • Page 72: Ip Address Setup On Pc Site

    SUGGESTED REQUIREMENT CPU: Intel P4 2.8G MEMORY:512MB or above VGA: 64MB or above VGA RESOLUTION:1024 x 768 OS: Windows XP / 2000 NETWORK BANDWIDTH: Upload Speed is 256kbps or above 6.1 IP ADDRESS SETUP ON PC SITE When installing cameras inside the LAN or using a network cable to connect them to PC, IPInstallerEng.exe will set up the IP address of those cameras.
  • Page 73 NOTE: Please input correct network parameters without blank spaces. On “Device Lists”, the software lists all servers. By clicking on the server the IP settings will be show on the right side. After editing the parameters and clicking on “Submit”, the following dialogue box will popup.

  • Page 74: Optional Microsoft Internet Explorer Setup

    6.2 OPTIONAL MICROSOFT INTERNET EXPLORER SETUP OPTION 1: DISABLE ACTIVEX WARNING A. IE  Tools  Internet Options  Security  Custom Level  Security Settings  Download unsigned ActiveX controls  Enable or Prompt (recommend). B. IE  Tools  Internet Options  Security  Custom Level  Security Settings  Initialize and script ActiveX controls not marked as safe ...

  • Page 75: Login

    All the three options above are all based on the prompted interfaces. Please click "YES." OPTION 2: ADD TO TRUSTED SITES IE  Tools  Internet Options  Security  Trusted sites  Sites 6.3 LOGIN INSTALL ACTIVEX...
  • Page 76 START INSTALL ACTIVEX ACCOUNT & PASSWORD LOGIN After the IP setup and connecting to the network or LAN; type directly the IP address on the IE Browser directly. The following User name & Password Login window will popup. Default user name: admin Default password: admin...

  • Page 77: Remote Control

    6.4 REMOTE CONTROL HYBRID DVR LIVE VIEWING Configuration PTZ Control Screen Pattern System Time Play Back Time-Point Backup A. DVR Configuration Get into the DVR network menu. B. PTZ Control PTZ control function panel Direction Keys PTZ Zoom in/out Auto Pan Function Preset Point Setup...
  • Page 78 Up to 32 preset points C. SYSTEM TIME Live viewing mode: The current live viewing time. D. SCREEN FORMAT Switch screen format and click twice to switch different channels with full screen. Full Screen. Click again to return. REC. Click to start record the live video to the PC or storage device. The saved file is *.ha0 file.
  • Page 79 Time-Point Backup Click to select backup time point. The saved file is *.ha0 file. PLAYBACK by TIME SEARCH & EVENT SEARCH Click the button for the playback window to popup Playback Time Time Search Event Search HDD Select A. HDD Select The user can select HDD1 or HDD2 for playback B.
  • Page 80 D. Event Search The user can select the event item by pressing “Event Search” for playback. TIME-POINT BACKUP Click to operate the Time-Point backup. First, select the Start and End backup time. Then, click the Save button to select the path on the PC where the user is going to backup the data.

  • Page 81: Configure

    OTHER FUNCTIONS Right-click on any channel. The following menu will pop up: A. Snapshot: Save a single picture from the image. B. Performance: Select image quality (high, medium & low). C. Use Overlay: Save system resources and improve efficacy. D. Play audio: Play audio off the channel.
  • Page 82 A-1 SYSTEM INFORMATION SERVER NAME: This name will be shown on the IP Installer. MAC ADDRESS: The MAC address. (It cannot be changed) A-2 NTP Setting TIME ZONE: It can only be modified via adjust “DATE” and “TIME SETUP “in the DVR Menu).
  • Page 83 B-1 AUTHORITY SETTING: Enable or Disable these options to limit the authority. B-2 USER MANAGEMENT: Add: Key-in the Username and Password. The manager can give authority to the new user by ticking at the choice below. (Ex. Ticking at “PTZ” allows the new user to control the PTZ functions).
  • Page 84 Modify: Click Edit for the following window to pop-up. After typing the Password and confirming it, click on OK. You can also change the masking channel here. Remove: Click on the user name on the user list and click on Remove. C.
  • Page 85 component "WATCH_16R" from your PC. 3. Log in the DVR/HYBRID DVR via web browser again, and the browser will require you to install the new version of ActiveX control.  Manual Uninstall If the tool does not work, please follow the following steps to uninstall the ActiveX control manually.
  • Page 86 4. Log-in again into the DVR/HYBRID DVR via web browser. The browser will ask you to install the new version of ActiveX control. D. NETWORK – IP SETTING IP ASSIGNMENT DHCP: In Dynamic Host Configuration Protocol (DHCP) mode, the DHCP server setting is done automatically.
  • Page 87 UPNP PORT FORWARDING When a router is used, you can enable this function to allow the user to link the device in the intranet. E. NETWORK – PPPoE E-1 PPPoE SETTING Click on Enabled to enable the ADSL dial function. Username: Username for ADSL account.
  • Page 88 F. NETWORK / DDNS SETTING Click on Enabled to enable the DDNS function. F-1 DYNDNS.ORG DDNS SETTING - DYNDNS.ORG PROVIDER: Select dyndns.org HOSTNAME: The registered hostname in DYNDNS.ORG. USERNAME: The registered username in DYNDNS.ORG. PASSWORD: The registered password in DYNDNS.ORG.
  • Page 89 SCHEDULE UPDATE: A period of time to update IP address. STATE 1. Updating: Information update. 2. Idle: Stop service. 3. DDNS registered successfully, now log by http://<username>.ddns.camddns.com: Registered successfully. 4. Updating Failed, the name is already registered. 5. Updating Failed, please check your internet connection. F-2 DDNS.CAMNNDS.COM DDNS SETTING –...
  • Page 90 http://<username>.ddns.camddns.com: Registered successfully. 4. Updating Failed, the name is already registered. 5. Updating Failed, please check your internet connection. DDNS Setting Steps: Tick “ENABLE” to enable the DDNS function and select “ddns.camddns.com” of the provider from the drop down list. In the following, type the username to apply (e.g. HYBRID DVR_GODDNS).
  • Page 91 the account first. The user has to fill-in the username, password and hostname for applying the account. After the user applied the account successfully, the dyndns.org will provide complete DDNS domain name to the user. 3. If setting up the IP schedule update too frequently, the IP may be blocked. In general, scheduling an update every day (1440 minutes) is recommended.
  • Page 92 Bcc Mail: The receiver’s mail address for Bcc Mail. Event Subject: The subject of this mail. (The default value is ALARM MAIL) FTP Setting: Tick “Alarm” to upload video to FTP when external alarm or DI from IP Cam is triggered. Tick “Motion” to upload video to FTP when motion detection is triggered.
  • Page 93 HTTP Server: Key-in the server IP address. HTTP Port: Key-in the server port used for http protocol. User Name: Key-in the server username. Password: Key-in the server password. HTTP CGI: Key-in the CGI that you would like to send to the server when alarm events occurs.
  • Page 94 K-1 CAMERA Setting Please refer to Chapter3.3-Camera Setup.
  • Page 95 K-2 RECORD SETTING Please refer to Chapter3.4- Record Setup K-3 ALARM SETTING Please refer to Chapter3.5-Alarm Setup...
  • Page 96 K-4 DISK STEEING Please refer to Chapter3.8-Disk Setup K-5 SYSTEM SETTING Please refer to Chapter3.9-System Setup...

  • Page 97: Appendix A: Recording Time Lapse (Hours)

    APPENDIX A: RECORDING TIME LAPSE (HOURS) UNIT：Hours IMAGE QUALITY LOW(0.25M) MEDIUM(0.5M) STANDARD(1M) HIGH(1.5M) (Mbps) AVERAGE AVERAGE AVERAGE AVERAGE 16CH UNIT：Hours IMAGE QUALITY LOW(0.25M) MEDIUM (0.5M) STANDARD (1M) HIGH (1.5M) (Mbps) AVERAGE AVERAGE AVERAGE AVERAGE 16CH 1920 UNIT：Hours IMAGE QUALITY LOW(0.25M) MEDIUM (0.5M) STANDARD (1M) HIGH (1.5M)
  • Page 98 APPENDIX B: HDD COMPATIBLE TABLE Brand Model Capacity Others ST3500320SV 500GB SV35.3 ST3500410SV 500GB SV35.5 ST3500413AS 500GB Barracuda 7200 12 ST3500418AS 500GB 7200 12 ST500NM0011 500GB ST500DM002 500GB Barracuda ST31000333AS 7200 11 ST31000340AS 7200 11 ST31000340NS Barracuda ES.2 ST31000340SV SV35.3 SEAGATE ST31000322CS Pipeline HD .2...
  • Page 99 WD6400AVVS 640GB 7200 GP WD7500AACS 750GB 7200 GP WD7500AVVS 750GB 7200 GP WD1003FBYX Enterprise Storage WD1002FAEX Caviar Black WD10EACS 7200 GP WD10EADS Caviar Green WD10EVDS Green Power WD10EVVS 7200 GP WD10EARS Caviar Green WD10EURX AV-GP WD10EALX Caviar Blue WD10EFRX WD15EADS 1.5TB 7200 GP WD15EARS...
  • Page 100 HDS723020BLA642 7200 DS7SAE202 DT01ACA050 500GB DT01ACA100 DT01ACA200 TOSHIBA DT01ABA050V 500GB DT01ABA100V DT01ABA200V...

  • Page 101: Appendix C: Error Message List

    APPENDIX C: ERROR MESSAGE LIST ERROR MESSAGE ERROR STATUS & REASON DISK ACCESS ERROR! H.D.D. Data structure un-normal. The data is not recorded into the DVR or there bad sectors on HYBRID DVR H.D.D. Please install another H.D.D. and perform the record again. UPDATE FILE ERROR! Please re-download the update file and update again.
  • Page 102 PLEASE SELECT ONE The message will be shown while using the ZOOM function CAMERA under split screen mode. Please switch the screen into full screen mode and then operate the ZOOM function. V1.0_131008...
