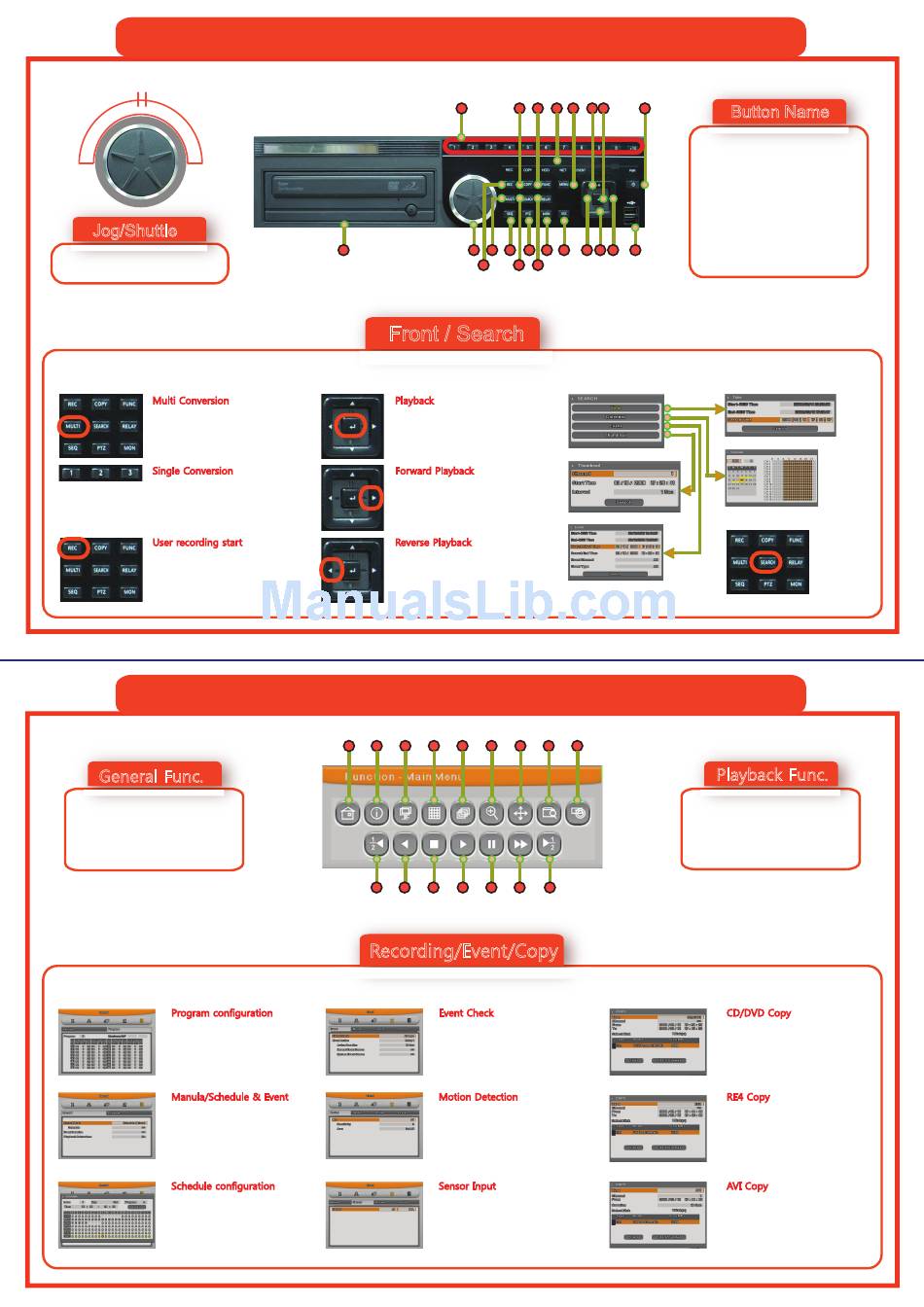

Hunt Electronic HVRM T1600E Quick Manual

x1
x2 x2
x4 x4
Reverse Forward
x8
x8
x16 x16
x32 x32
x64
x64
Jog/Shuttle
1. Forward/Reverse 1 to 64 times
2. Step playback (1 Frame)
1. Monitoring
Multi Conversion
With pushing Muliti button,
convert screen into 4/9/16.
Single Conversion
In division screen,
If pusing the channel button,
its channel will be shown in single
screen.
User recording start
If Manual & Event is configured on
recording configuration, when user
pushes REC button of the front
panel, recording will work.
General Func.
1. Main Menu 6. D-Zoom
2. Information 7. PTZ
3. Monitor 8. Search
4. Display 9. Copy
5. Sequence
4. Recording Configuration
Program configuration
Choose default set value or user
configuration value.
Manula/Schedule & Event
Select and use between
Manula & Event and
Schedule & Event.
Schedule configuration
Input programe per day
and time.
No recording part will be
blank.
DVR Quick Guide(4ch/8ch/16ch)
1
Front / Search
2. Playback
Playback
Push Playback button
in Monitoring mode.
Forward Playback
If pushing FWD button, forward
Playback speed will be changed
from 2 to 64 times in Monitoring /
Playback mode.
Reverse Playback
If pushing REW button, Reverse
Playback speed will be changed
from 2 to 64 times in Monitoring /
Playback mode.
.
DVR Quick Guide(4ch/8ch/16ch)
1 2 3 4
10 11 12
Recording/Event/Copy
5. Event
Event Check
When configuring Event Check
as Always Time Zone, it works.
Motion Detection
User can configure the sensitivity
and area per channel different.
Sensor Input
Choose correct sensor type
between N.O type and N.C type.
2 11 14 4 6 20 21
3 9 10 13 16 7 17 18 19 22
8 12 15
3. Search
Thumbnail Search
Event Search
5 6 7 8 9
13 14 15 16
6. Copy
Button Name
5
1. DVD 12. Search
2. Channel 13. PTZ
3. Jog Shuttle 14. FUNC
4. LED 15. Relay
5. Power 16. Mon
6. Menu 17. REW/◀
7. ESC 18. Stop/▼
8. REC 19. FWD/▶
9. Multi 20. Pause/▲
10. SEQ 21. Play/Enter
11. Copy 22. USB
Time Search
Calendar Search
Push SEARCH
button
Playback Func.
10. 1/2 REW 14. Pause
11. REW 15. FWD
12. Stop 16. 1/2 FWD
13. Play
CD/DVD Copy
User can copy multipul channel
in to CD/DVD-R even including
Mini Playter together.
RE4 Copy
User can copy multipul channel
into USB Memory at the same
time even including Mini Player.
AVI Copy
Selected single channel can be
copied into USB Memory.
