HVRM-T1600M / T800M / T400M,
T1600Q / T800Q
Install & User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVRM-T1600M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunt Electronic HVRM-T1600M

Summary of Contents for Hunt Electronic HVRM-T1600M

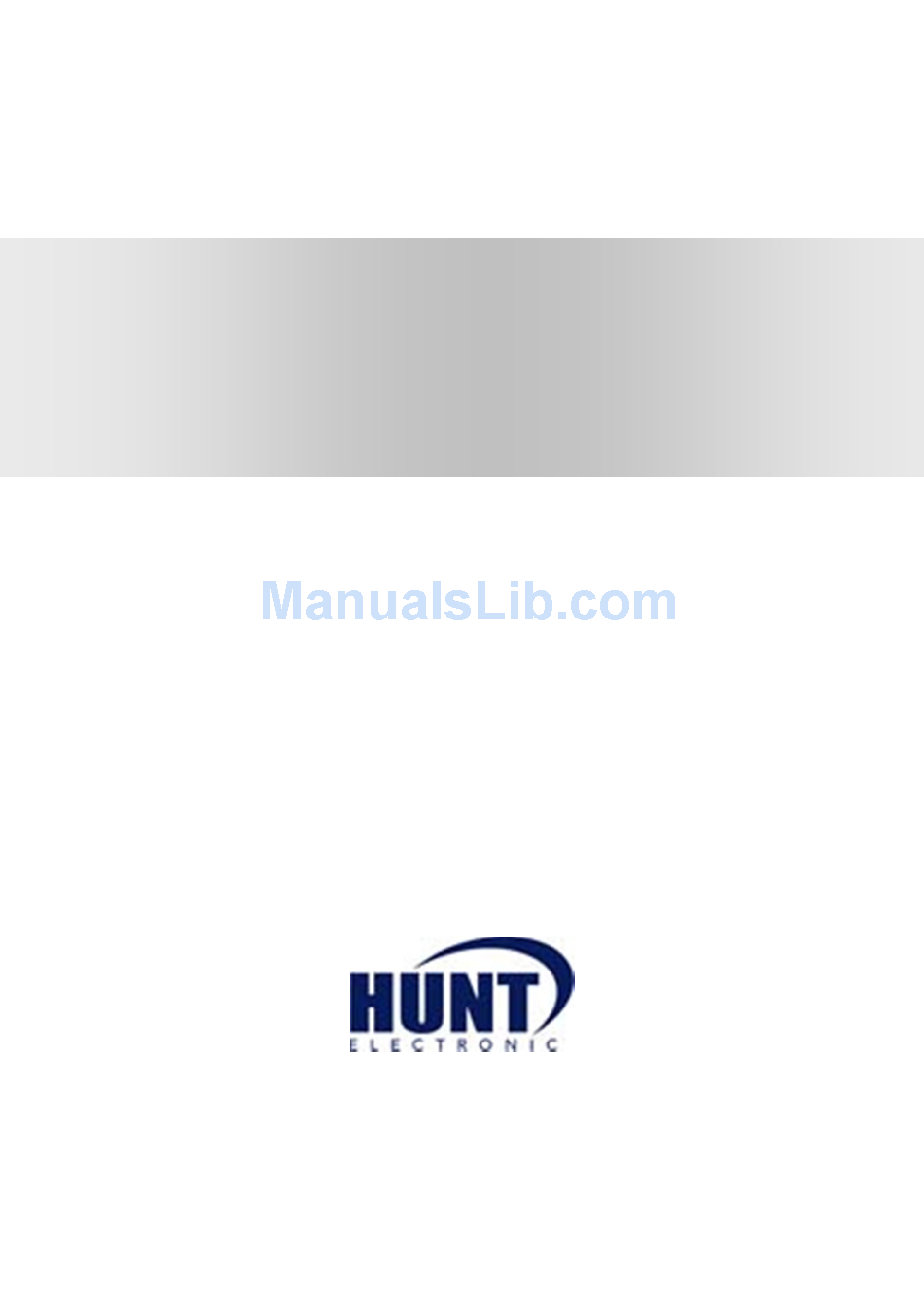

  • Page 1 English HVRM-T1600M / T800M / T400M, T1600Q / T800Q Install & User’s Guide...

  • Page 2: Introduction

    Introduction Thank you for purchasing a Hunt digital video recorder. This manual is for HVRM-T1600M, HVRM-T800M, HVRM-T400M, HVRM-T1600Q, HVRM- T800Q. Before product installation and operation, please become thoroughly familiar with this user manual and other manuals referenced by this manual.
  • Page 3 Install&User Manual Caution As this equipment undergone EMC registration and suitable for business purpose, distributors and users are aware of this point. FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: Important Notice

    Install&User Manual Important Notice 1. Do not place heavy objects on the top of the product. 2. This equipment is indoor use and all the communication wiring are limited to inside of the building 3. Product is for indoor use. It is not weatherproof. Use product with referring to its environmental specifications (Temperature &...
  • Page 5 Install&User Manual Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

  • Page 6: Table Of Contents

    Contents INTRODUCTION ................1 KEY FEATURES ................１０ INSTALL MANUAL............... １３ 1. FEATURE ................. １３ Supplied Accessories ....................１３ HVRM-T1600M/ HVRM-T800M/ HVRM-T400M Series........１３ 1.1.1. HVRM-T1600Q/ HVRM-T800Q Series ..............１４ 1.1.2. Description & Function ....................１５ 1.2. Front ........................１５...
  • Page 7 Install&User Manual USER MANUAL ................５５ 3 MENU USE ................５５ Menu Structure ......................５５ Function Menu ......................５５ Factory Reset ......................５６ 4 MONITORING ................６２ Basic Screen ......................６２ Single Fll Screen Mode ....................６２ Multi Screen Mode ..................... ６２ Screen Description ....................
  • Page 8 Install&User Manual 5 PLAYBACK ................６９ Playback Mode ......................６９ Playback on Standard monitor (16 / 9 / 4 division) ..........６９ 5.1.1 Playback function ....................６９ 5.1.2 SEARCH MODE ......................７０ Time Search ....................... ７０ 5.2.1 Schedule Search ....................７０ 5.2.2 Event Search ......................
  • Page 9 Install&User Manual Serial Setup ......................９７ 6.4.5 Event Setup ....................... ９８ Event Check ....................... ９９ 6.5.1 Sync Event ..................... １００ 6.5.2 Motion Detection ..................... １０５ 6.5.3 Sensor ......................１０６ 6.5.4 Preset ......................１０７ 6.5.5 Recording setup ....................１０７ Program setup ....................１０８ 6.6.1 Manual/Schedule recording setup ..............
  • Page 10 8 JAVA VIEWER ..............１２７ 9 USER MANUAL FOR MOBILE VIEWER ......１２８ Log-In page ......................１２８ Monitoring page ..................... １２８ TROUBLE SHOOTING .............１３０ AVAILABLE HDD ..............１３２ COMPATITABLE CD/DVD LIST ..........１３３ SPECIFICATION................１３３ HVRM-T1600M, HVRM-T800M, HVRM-T400M ..............１３３ HVRM-T1600Q, HVRM-T800Q ..................１３５ PRODUCT SIZE ................１３９...

  • Page 11: Key Features

    HVRM-T1600Q : 1/4/9/10/16 channel mode HVRM-T800Q : 1/4/9 channel mode Auto Switching HVRM-T1600M : Composite x 2, DVI x 1 HVRM-T800M : Composite x 2, DVI x 1 HVRM-T400M : Composite x 2, DVI x 1 HVRM-T1600Q : Composite x 2, VGA x 1...
  • Page 12 Install&User Manual Recording It supports max. 480ips/HVRM-T1600M, 240ips/HVRM-T800M, HVRM-T1600Q, HVRM- T800Q, 120ips/HVRM-T400M recording at High-Resolution (H.264) and available to record max. 5 seconds before triggering an event. Also, convert function is available protecing privacy. H.264 Video recording with High-Quality HVRM-T1600M : CIF(360x240) 480ips...
  • Page 13 Install&User Manual Back up device It is available to backup to DVD-R, CD-R, USB memory by user’s choice. (HVRM-T1600Q, HVRM-T800Q is available as an option.) Supprots various back up device : DVD-R, CD-R, USB memory Extention HDD Storage (External extention Storage device) Network It supports variable network like LAN, XDSL and easily control from remote site using PC client viewer.

  • Page 14: Install Manual

    Install&User Manual Install Manual 1. Feature Supplied Accessories Unpack and check all the items as below 1.1.1. HVRM-T1600M/ HVRM-T800M/ HVRM-T400M Series AC Cord, Remocon, Setup CD, SATA Cable, HDD Fixing Screw, Quick Guide (Option : DVI to VGA Converter) １３...

  • Page 15: Hvrm-T1600Q/ Hvrm-T800Q Series

    Install&User Manual 1.1.2. HVRM-T1600Q/ HVRM-T800Q Series AC Cord, Remocon, Setup CD, SATA Cable, HDD Fixing Screw, Quick Guide １４...

  • Page 16: Description & Function

    Install&User Manual 1.2. Description & Function 1.2.1. Front 1.2.1.1. HVRM-T1600M/ HVRM-T800M/ HVRM-T400M Series Front Item Description DVD-Multi (For Back up use for recorded data by DVD/CD media Back up) Channel Button To select video input channel REC LED Displays recording status...
  • Page 17 Install&User Manual To change Monitor/ Stop Menu To enter menu To escape from menu or close pop-up window Enter/Play To enter playback mode or select menu ◀/REW To move or select in menu and change replay speed to reverse direction in playback mode ▶/FWD To move or select in menu and change replay speed to forward direction in playback mode...
  • Page 18 Install&User Manual 1.2.1.2. HVRM-T1600Q/ HVRM-T800Q Series Front Item Description DVD-Multi (For Back up use for recorded data by DVD/CD media Back up) Channel Button To select video input channel REC LED Displays recording status COPY LED Displays copy status HDD LED Displays HDD running.
  • Page 19 Install&User Manual ◀/REW To move or select in menu and change replay speed to reverse direction in playback mode ▶/FWD To move or select in menu and change replay speed to forward direction in playback mode ▲/Pause To move or select in menu and pause live/ replay video ▼/Stop To stop replay in playback mode １８...

  • Page 20: Rear

    Input/ Output name Descrtiption Ground Ground between DVR & external device CH1~16 BNC input for camera connection HVRM-T1600M : 16EA, HVRM-T800M : 8EA, HVRM T400M : 4EA Loop out BNC output(Loop) for camera connection Monitor/ Spot BNC connection for monitor output...
  • Page 21 Install&User Manual 번호 Input/ Output name Descrtiption Ground Ground between DVR & external device Power connector Socket for AC100V~AC240V power cord ２０...
  • Page 22 Install&User Manual 1.2.2.2. HVRM-T1600Q/ HVRM-T800Q Series REAR 번호 Input/ Output name Descrtiption Ground Ground between DVR & external device Power connector Socket for AC100V~AC240V power cord CH1~16 BNC input for camera connection HVRM-T1600Q : 16EA, HVRM-T800Q : 8EA Monitor/ Spot BNC connection for monitor output Audio Input(RCA) RCA connection for Audio input...

  • Page 23: Remote Controller

    Install&User Manual 1.2.3. REMOTE CONTROLLER It is available to use all functions of DVR. If several DVR are set with unique ID numbers, they can be controlled with one remote controller. To use remote controller, it is necessary to set ID first which want use. Keep pressing ID button repetedely (Up to Max. 16 times) and use it matching DVR &...
  • Page 24 Install&User Manual SEARCH To indicate search menu CHANNEL BUTTON To select channel SELECT Not use In case of selecting over 10 (+10 + 1) Not use Not use MENU Covert to menu screen HELP Not use ◀/REW Move setting menu to left direction/REW ▶/FWD Move setting menu to right direction/FWD ▲/PAUSE...

  • Page 25: Installation

    2.1.1.1 Connecting camera Connect CCTV camera to DVR with BNC cable as below [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] - The video type for all channels should be either NTSC or PAL, not be combined both - DVR sets video signal’s impedance (75Ω) automatically. Impedence is set as 75 Ω basically. If connecting a dvice to video output, impedance will be “Hi-z”...

  • Page 26: Connecting Monitor

    Install&User Manual 2.1.1.2 Connecting monitor Connect CCTV monitor to DVR with BNC cable as below. Will be able to connect BNC, DVI and VGA. [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] ２５...

  • Page 27: Connecting Audio

    Install&User Manual 2.1.1.3 Connecting Audio Connect audio signal to DVR with using RCA cable or D-SUB as below; [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] ２６...

  • Page 28: Supplying Power

    Install&User Manual 2.1.1.4 Supplying Power Connect power cable as below; [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] - When supplying power, DVR starts booting automatically. - In order to cut off power, press power switch on DVR front during 5 seconds, then select “YES”...

  • Page 29: Running Osd Menu

    Install&User Manual Running OSD menu 2.2.1 OSD menu configuration Press [MENU] in keypad of front to open configuration menu as below; Main Menu Sub Menu Configuration (1) Main Menu : The selected tab is show in bright color and the related sub-menu will be shown left- below the tab.

  • Page 30: Setting Remote Controller

    Install&User Manual 2.2.1.1 Dialogue box to edit a word Dialogue box to edit a word is image shown as below; It is available to input both word and bumber. Keep pressing [▲/▼], [◀/▶] arrow button until the word is looking for and press Enter. In case of deleting input word press [], spacing words press [] button.

  • Page 31: Install Examples

    Remote controller required two AAA-type batteries. Please, refer the following installation step. 2.Taking care the the poles 1. Remove the battery cover (+/-) correctly 3. Replace the battery cover positioned. 2.2.3 Install examples 2.2.3.1 Basic configuration [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] ３０...

  • Page 32: Advance Configuration

    Install&User Manual [HVRM-T1600Q/ HVRM-T800Q] 2.2.3.2 Advance configuration [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] ３１...
  • Page 33 Install&User Manual 2.2.3.3 External storage & Back up configuration [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] 2.2.3.4 Internet/ Intranet configuration [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] ３２...

  • Page 34: Basic Setting

    Install&User Manual [HVRM-T1600Q/ HVRM-T800Q] 2.2.4 Basic Setting 2.2.4.1 Viewing Image When power is on, eDVR starts automatically and displayed in basic 16ch-split screen after booting. <Reference> If user password is set, a prompt for entering the password will be appeared. Factory default is reserved as not responding keypad on DVR front (It is not from factory default).
  • Page 35 Install&User Manual 2.2.4.2 Setting Date & Time - Press [MENU] button and select “ System” when OSD menu is appeared. - Select“Date/Time”and press [Enter] button. Time Zome Use the left or right arrow key on the front or the mouse wheel to select your time zone. Each press of the arrow keys changes the time zone.
  • Page 36 Install&User Manual (1)Select NTP Function (2)Select “Client or Server or Both” using [◀/▶] or [▲/▼] arrow button and press [Enter] button. (3)Select “Public or Both” using [◀/▶] arrow button and press [ESC] button on ‘Client or Both’mode. Appendix #1 Enter ‘Server IP address’ when you set the next server as Local. Appendix #2 Set Server and Communicate cycle with Interval.

  • Page 37: Record Setting

    Install&User Manual (2) Select using [◀/▶] or [▲/▼] arrow button and select “YES”, then, press [ENTER] button. To cancel, press [ESC] button. 2.2.4.3 Record Setting Select “Record” pressing menu button in front. Program Setting Set resolution, frame rate, quality by each channel that user want record in “Program” of record menu.

  • Page 38: Connecting And Configuring Dio Ports

    Install&User Manual Schedule Setting Set recording mode as “Scheduel & Event” and set by time. Checking method for recording <Reference> If recodrding setting is finished correctly, “REC LED” in front is flickering. In addition, it is marked [S] indicating that all channels are recroding. Connecting and configuring DIO ports 2.3.1 Wire Handling When connecting a wire to a terminal block, follow the instruction below.

  • Page 39: Connecting And Configuring Sensor

    To insert & remove wire in Terminal Block, use a screwdriver in the diagram to the below; 2.3.3 Connecting and configuring sensor 2.3.3.1 Specification In order to run sensor input DVR normally, the following conditions are required. Input Ch Transistor input HVRM-T1600M. HVRM-T1600Q : 16EA, HVRM-T800M, HVRM-T800Q : 8EA HVRM-T400M : 4EA Spec Input type N.C, N.O supprt...
  • Page 40 Connecting sensor input Connect S1 ~ S16(S8. S4) with referring the following image. It shows to connect a dry contact (Please refer “Wire Handling”). [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] Setting Sensor (1) Press [Menu] button and select “Event” when OSD menu is appeared.
  • Page 41 Install&User Manual All sensor It is used when setting for all sensors and set Off, or Normal Open (N.O.) / Normal Close (N.C.) (1) type. Select All and set type. Each sensor It is used when setting for each sensor and set selecting each sensor. (1) Select sensor and press [Enter] button.
  • Page 42 Install&User Manual [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] Relay setting It is available to run relay selecting from sensor, motion detection, Video Loss which is normal event source and Disk error, Disk full, authentication fail, WRS registration fail which is system event source.

  • Page 43: Connecting Serial Port

    OSD configuration menu. The following figure shows how to connect PTZ camera to RS485 (COM2/COM3). When using another serial port, connect it with referring to each connection diagram below. Please refer the “Wire Handling”. [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] ４２...
  • Page 44 Install&User Manual [HVRM-T1600Q/ HVRM-T800Q] Serial communication port diagram COM1 Connection (RS-232) COM2/COM3 Connection (RS-485) ４３...
  • Page 45 Install&User Manual Available PTZ is same as below table. Model Name Manufacturer Keyboard KBD300A, WGI SPD1800/2600 Webgate Webgate WKC-100 Keyboard BOSCH AutoDome, TC8560X-4 Bosch PELCO(P), PELCO(D) Pelco Sony Sony EVI-D3x VT VPT-4x AD SpeedDome Sungjin SungJin SJ372R1’ Samsung SCC641 Samsung Electric Panasonic WV-CS850 Panasonic SDZ160/330, Samsung SPD,...
  • Page 46 Install&User Manual Sysmenia ORX-1000 Fine CRR-1600 LiveEye Tokina Tokina Kodicom KRE Kodicom Nuvico Nuvico Serial Setting You can set up both serial port and PTZ from remote menu under network menu. From serial setting, you can set protocol, port, baudrate, parity bit, stopbit and databit. After completed serial setting, select desired channel from camera menu, and setting up PTZ Home, PTZ Idle Time, PTZ Port, and PTZ address.
  • Page 47 Install&User Manual 2.3.3.4 Connection to external device via Seria port Text input device connection (ATM / POS / Access Control) Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM. Like above picture, connect COM1/RS232 (9pin D-Sub) in Device menu and configure Serial and Text.

  • Page 48: Usb Device Connection

    USB port is for the simple video copy (within 1 hour) on USB Flash memory. Its recommended specification is same as below. USB Spec. Ver 2.0 Device USB Memory Stick, Voltage/electric Max. 200mA per DC 5V / Port current [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] ４７...
  • Page 49 Install&User Manual [HVRM-T1600Q/ HVRM-T800Q] <Reference> It should be formatted by FAT32. In case of normal connection, if executing Copy menu, disk will be recognized same as below and Set copy range  Select Drive  Execute Copy. [CD/DVD Copy] [RE4 Copy] ４８...
  • Page 50 Install&User Manual Select the channel to copoy [AVI Copy] <Reference> A USB Flash memory which should install additional program on Windows OS, can not be recognized. 2.3.3.6 Video In/Out connection Video Input/Output is Loop through and check the connectivity automatically and set end resistance.

  • Page 51: Hdd

    Install&User Manual [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] 2.3.3.7 Audio In/Out connection There are 4 RCA Audio Input and 1 RCA output. 2.3.4 HDD ※ Please, refer to Appendix for available HDD list 2.3.4.1 HDD registration and format After mounting HDD and booting system, “Disk Manager” will execute automatically.

  • Page 52: Hdd Replacement

    Install&User Manual (1) Press [Enter] button in “Disk Manager” (2) Using [▲/▼] Key, select new HDD(Displayed [No] on Enabled item) and press [Enter] (3) If you see the message for format, select [Yes]. (4) Press [ESC] and escape from “Disk Manager” 2.3.4.2 HDD Replacement Turn Off the DVR and take off the HDD that has a problem and replace it with new HDD.

  • Page 53: Remote Monitor And Control

    Install&User Manual 2.3.5 Remote monitor and control Via Internet/Intranet, in remote site, user can access with PC. 2.3.5.1 Ethernet connection [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] (1) Cut Power. (2) Connet Ethernet cable to DVR and Hub. (3) Input Power. <Reference>...

  • Page 54: Network Configuration

    Install&User Manual 2.3.5.2 Network configuration Ethernet Set type as Ethernet and input IP, Netmask,Gateway, DNS. The way to input is using directional key or mouse wheel. PPPoE Set type xDSL, and move to xDSL menu. First, change Ethernet Port Please, input ID and Password for PPPoE. After changing interval over 1 min, register WRS address and product and input Group ID.

  • Page 55: External Device Connection

    Install&User Manual 2.3.6 External device connection DVR has external Storage Device Interface and 1 ea of eSATA port. Using eSATA port, user can expand Storage capacity up to 8TB. <Note> Since some of eSATA device can not be compatible with DVR, before the usage, please, contact the seller and check its compatibility in advance.

  • Page 56: User Manual

    Install&User Manual User Manual 3 Menu Use Menu Structure The menu structure will be shown like below image, and each menu setting method descriped from chapter 4 to chapter 6. Function Menu To execute Function menu, click the right button of mouse or select ‘FUNC’ button on front panel.

  • Page 57: Factory Reset

    Install&User Manual Function of Playback Factory Reset In order to reset value to factory value, go to System Setting->System->Setting, and once press Factory Reset then the warning message will be appear, click “Yes” to reset the DVR value to factory. Default Value from Factory System Time Zone...
  • Page 58 Install&User Manual DVR Alias DVR0 DVR Keyboard ID Utility Remote Controller Language English Network Type Ethernet DHCP IP addr Default IP Net Mask Default Net Mask Network Gateway Default Gateway DNS1 4.2.2.1 Port Band Width Limit(Mbps) User ID Guest xDSL Password ***** Status...
  • Page 59 Install&User Manual Monitor Monitor 1 Alarm Pop-up(Sec) Monitor SEQ Time(Sec) VGA Mode 800x600@56Hz Audio Channel Ch 1 Audio Recording Audio Audio Gain Sync Video Channel Ch 1 Audio Mix Mix On Recording Sync Test With Device Manual Seek Header Text Header 1 Header1 Header 2...
  • Page 60 Install&User Manual Record Mode Manual & Event Program ProgramG Record Event Duration Pre : 1 Post : 1 Normal Resolution All D1 Frame Rate All 6 Quality All Q5 Program Event Resolution All D1 Frame Rate All 6 Quality All Q5 Program initial value HVRM-T800Q Record mode...
  • Page 61 Install&User Manual HVRM-T400M Record mode Normal Event Division Half Half Half Half Half Half HVRM-T800M Record mode Normal Event Division Half Half Half Half Half Half HVRM-T1600M Record mode Normal Event Division ６０...
  • Page 62 Install&User Manual Half Half Half Half Half Half ６１...

  • Page 63: Monitoring

    Press [MULTI] for multi channel display or click “Display” icon from Function menu. Press [MULTI] button every time, screen mode for HVRM-T1600M, HVRM-T1600Q is changed to 1~4, 5~8, 9~12, 13~16, 4C, 1~9, 8~16, 1~10, 16 screens, and for HVRM-T800M, HVRM-T800Q is 1~4, 5~8, 4C, 9screens, and for HVRM-T400M is 1~4screens.

  • Page 64: Screen Description

    Install&User Manual Screen Description The status bar from monitoring screen, it shows DVR’s current status that included Date/Time, Record, Motion/Sensor Detection, Manual Record, Text input and HDD’s record capacity. Auto Switch Mode There are System Standard modes and User Defined mode in Auto Switch mode. And Users Sequence mode operates by the press [SEQ] button.

  • Page 65: User Sequence Mode

    Install&User Manual 4.5.2 User Sequence Mode Press [AUTO] button or click [Sequence] icon from Function menu with mouse.  Auto Switch model can be set from “Monitor” main menu. User mode can define max. 16 channels. As shown above picture, the 16ch DVR can be define between channel 1 ~ 16, the 8ch DVR from 1 ~ 8 and the 4ch DVR from 1 ~4.

  • Page 66: Zoom Screen Mode

    Install&User Manual 1. If Alarm Pop-up Hold (sec) set to Off, Alarm Pop-up will not operate. 2. If Alarm Pop-up Hold (sec) set to Keep, it does not return to previous screen before press any button Zoom Screen Mode  From single full screen mode, press [FUNC] and D-Zoom button then select + button to activate zooming the image.

  • Page 67: Ptz Control

    Install&User Manual PTZ Control Connect PTZ controller to DVR and set relevant protocol from “Serial Setup” menu, then PTZ can operate while monitoring live images. The method of operating PTZ, press PTZ button from DVR’s front panel, or click PTZ icon from Function menu.

  • Page 68: Pan/Tilt

    Install&User Manual Webgate Keyboard KBD300A, WGI SPD1800/2600 WKC-100 Webgate Merit Merit-Lilin FastDome Elmo PTC200C Elmo Canon VC-C4 Canon DongYang Unitech HTC-230S RVision RVision Elbex Elbex Honeywell 755/655, HRX-2000, HTX-3000, Honeywell ScanDome2 VIDO VIDO VICON Vicon Hunt Hunt Sysmenia ORX-1000 Fine CRR-1600 LiveEye Tokina Tokina...

  • Page 69: Save Preset

    Install&User Manual  Once preset configured then select Load and press Enter or click from mouse. 4.9.4 Save Preset This menu is used to set new Preset at real-time monitoring mode.  Control camera location using ‘Pan/Tilt’ and ‘Zoom/Focus’ menu. ...

  • Page 70: Playback

    Install&User Manual 5 Playback Playback Mode 5.1.1 Playback on Standard monitor (16 / 9 / 4 division)  Please, push play button in monitoring mode or mouse click play buttion in Function menu.  If pushing Play button or FWD button, video playbacks in forward direction at 1× speed. ...

  • Page 71: Search Mode

    : The latest date and time of the recording Search Time : Select the range of date and time for Search Search : Execution button 5.2.2 Schedule Search Depends on models, HVRM-T1600M, HVRM-T1600Q shows the status of recording for 1~16ch, ７０...

  • Page 72: Event Search

    Enter and change the value by Up and Down button. With mouse, click and scroll the wheel. Event Channel : Select the channel for search HVRM-T1600M, HVRM-T1600Q from Ch1 to Ch16 HVRM-T800M, HVRM-T800Q from Ch1 to Ch8 HVRM-T400M from Ch1 to Ch4 Event Type...

  • Page 73: Thumbnail Search

    Install&User Manual Smart search : It’s a function that search the object by motion detecting. 1. Choose channel that you want to search. 2. Choose event type on MD(Motion Detection) 3. Set the grid for motion and go to search. 5.2.4 Thumbnail Search Search certain channel by thumbnail type.

  • Page 74: Copy

    Install&User Manual Copy This is for copying recorded video. There are CD/DVD and RE4 and AVI type. Copy function is supported to be used by user who has the authorization. For authority configuration, please, refer to 6.9.3 Security. To use copy function, press [COPY] or Click Copy button in Function menu. In case to copy with RE4 and AVI format, you need to use USB memory stick or USB HDD.

  • Page 75: Re4

    Install&User Manual From : Select start date and time to copy using up-down key or mouse wheel. : Select end date and time to copy using up-down key or mouse wheel. Select Disk : Select the media to copy using Enter buttonr on Select Disk. Start : Start Copy.

  • Page 76: Avi

    Install&User Manual Type : Select RE4 using up-down button or mouse wheel. Channel : To pop up the channel selection window, press Enter or use mouse wheel. Select Channel : use can select some or all channels and after selecting channel, press Enter or click mouse left button.

  • Page 77: Configuration

    Install&User Manual 6. Configuration Recording Structure There are 3 modes in DVR recording. Configuration relation structure is like below. Please, refer to the below each item for detailed recording configuration. System Setup Time and Disk and authority can be configured. 6.2.1 Date/Time Time set should be configured prior to the recording.

  • Page 78: Time Setup

    Install&User Manual 6.2.1.1 Time Setup Caution: under recording, if user changes Time, it will affect time change on previously recorded video data in accordance with. Therefore, we recommend backup before time change. Press Main Menu of Function or [MENU] button on the front panel. Move to “quick setup”...

  • Page 79: Ntp Setup

    Install&User Manual <Caution> Except date/time configuration, other configuration records automatically, but “date/time” configuration influences critical effect to HDD recording file system, It doesn’t record automatically. To apply the changed value, user must press [apply] button. 6.2.1.2 NTP Setup NTP(Network Time Protocol) make time of connected devices synchronized. There are NTP server and client which get time signal from the server.

  • Page 80: Disk

    Install&User Manual NTP Server Loc. When NTP mode is client, it is on Enable. Configure yes or no wether NTP server is in Local Network or Public. NTP Local server IP In NTP local server Enable, configure server ip. Input IP address of NTP server or DVR set by NTP server In local network.

  • Page 81: Disk Manager

    Install&User Manual This function makes recording data seen during the limited area. For instance, if seting block playback by 2 day(Pic 2) among 10 days, Just allowed 2 days data can be played back. Delete Data This option is to record only the date you selected. For example, if you select 3 days then DVR will record up to 3 days, and keep overwriting 3 days period of data Disk Full Alarm Warning...

  • Page 82: Disk Status

    Install&User Manual In case HDD YES - Enabled : Press [Enter] in No mode or scroll mouse wheel. Notice window pops up and show user the message like below. - Caution : This Disk is not available without format. Will you format Disk? - If selecting No, keep previous data and HDD will be Enable to use.
  • Page 83 Install&User Manual In case of set to O all for user authority like first picture, it’ll be available for all functions. In case of set to X like second pictures, it’s not available to use MENU, PTZ, Relay and Playback on each user.

  • Page 84: Utility

    Install&User Manual After that, message pop up window will be shown and press “Yes”. <Reference> Admin Password is “12345” in factory default and from user 1 to 10 in order “11111”,”22222”,.. and user10 is “00000” Auto Login/Logout Set to account for DVR login, it’ll be automatically login(Admin, user1~user10) And it’ll be automatically logout when you set auto logout time(1~60mini) in the menu and login window will be shown after that.
  • Page 85 Install&User Manual DVR Keyboard ID This menu is to set the address of keyboard when using all functions of DVR by keyboard. Factory default is “1”. If user want to control various DVR by one keyboard, its address should be set with the different value. Remote Controller ID Max 16 remote controller ID can be set and one remote controller can manage 16 DVRs.
  • Page 86 Install&User Manual Factory Reset Change all configuration value by factory default. Caution : Only administrator is allowed. Config Import/Export This function can allow user to save the configuration DVR by USB, and can export its value to other DVR. Config Export can save the configuration value of DVR by USB. Please, run Config Import/Export menu and click Export button.
  • Page 87 Install&User Manual If data transmission is done, you will see the message like below. Config Import menu can import the configuration value of the saved DVR. Please, insert USB memory which containing Export configuration data to USB port of the DVR, click import button on Config Import/Export menu.

  • Page 88: Network

    Install&User Manual System Information Display recording status and system configuration of DVR Caution : This function is allowed only for system administrator. Network This is menu for configuring network. ８７...
  • Page 89 Install&User Manual Type Configure type of Network (Ethernet/xDSL). If connected to cable modem or Lan directly to DVR, configure by “Ethernet”. If DVR connects to xDSL- one of PPPoE type, configure xDSL. But if it is not type of PPPoE, configure ‘Etherent’.

  • Page 90: Xdsl

    Install&User Manual 6.3.1 xDSL DVR is connected to xDSL line and use PPPoE type, please change type by xDSL and configure user ID and Password. User ID and Password should be same as xDSL. User ID/Passwod Configure user ID and Password. Status It shows connection status of DVR.

  • Page 91: Radius

    Install&User Manual WRS Interval For continuous registery, register inverval should be set to ‘WRS Interval’. According to set value of static IP address, it renews the information in WRS server regularly. If user registers the interval ‘0’ or eDVR does not transmit any data for 2 days, the data is removed from WRS. WRS URL This menu is to set server address to register.

  • Page 92: Device Setup

    Install&User Manual Click the Radius Shared Key and enter ID, Passward, Shared Key. Registration is completed of all information is correct. Device Setup This menu is for configuring each camera connected to DVR. There are [name][Status][Color/balck or white][Brightness][Contrast][PTZ] etc. Caution : NTSC and PAL camera can not be used at the same time. If changing the camera from NTSC to PAL, system should be rebooted.

  • Page 93: Camera Setup

    Install&User Manual 6.4.1 Camera Setup Select the camera to configure in Channel menu. 6.4.1.1 Title Configure camera name. If pressing [Enter] button or click mouse, test menu will be shown. For text string, text input box will be shown. Use directional key for text input. With mouse, just click the text.

  • Page 94: Monitor Setup

    User sequence can be edited. There are 16 user sequence mode and its interval is from 1 to 60seconds. Multi mode HVRM-T1600M, HVRM-T1600Q have predefined screen modes. 4E(4channels), 9B(basic 7 channels and additional 2 channels),10A(10 channels). In case of HVRM-T800M, HVRM- T800Q, it can use only 4E(4channels) and HVRM-T400M doesn’t provide multi mode.

  • Page 95: Audio Setup

    Install&User Manual Display information is to configure which information will be shown on live view and playback view. In live view, time,channel name, event, recording status, HDD, remote controller ID, text, UserID can be set and in playback view, time,command,channel name, event, text can be configured.

  • Page 96: Text Setup

    Install&User Manual Voice mixing Select audio in live view. If setting by “All”, input audio will be out in eery channels and if configured certain channel, input audio will be out on the selected channel only. 6.4.4 Text Setup Configure Text in Device menu. Recording Set On/Off of recording against Text input Sync Text with...
  • Page 97 Install&User Manual It has the various type of data input from the external device (Access Control, POS, ATM etc). Like VSI Pro, VSI Pro Hydra, Star Finger 007, it is not needed when the protocol of these device have implemented on the device. If not, this is the parameter to analyze how the one of data is constructed from the text data that is input continuously.

  • Page 98: Serial Setup

    Install&User Manual 6.4.5 Serial Setup DVR has 3 serial port. One is RS-232 and the other 2 ports are RS-485. Serial Port Select Serial port. Device Select the connected device. Interface Configure which interface user uses. COM1 is to RS-232C, COM2, COM3 are to RS-485. Baud rate/Parity/Stop Bit/Data Bit In put suitable value according to external device.

  • Page 99: Ptz Setup

    Install&User Manual 6.4.5.1 PTZ Setup Additional configuration for PTZ Address, PoirtPTZ PTZ Home Shift to Preset assigned if it has no movement in certain time while PTZ control. PTZ Idle Time If it has no movement during configured time, shift to PTZ Home. PTZ Port Select Port for PTZ PTZ Address...

  • Page 100: Event Check

    Install&User Manual 6.5.1 Event Check There are 3 items – Always, not apply, Custom. In case of Custom, with similar configuration window like schedule, user can configure event per weekday/time. • Time : Set time applicable • Daily : Adapt selected schedule to whole day of the week. •...

  • Page 101: Sync Event

    Install&User Manual 6.5.2 Sync Event Configuration for Event synchronization. 6.5.2.1 Event Action There are 4 actions – relay, buzz, E-Mail, FTP. 6.5.2.1.1 Relay When event is working, set to relay as a output. To work relay, select event between normal and system event. １００...
  • Page 102 Install&User Manual 6.5.2.1.2 Buzzer When event is working, set to buzzer as a output To work buzzer, select event between normal and system event. 6.5.2.1.3 E-mail When event is working, set to email as a output To work email, select event between normal and system event. USE (SMTP-Auth) If user selects Authentication in USE, SMTP-Auth function will work.
  • Page 103 Install&User Manual E-Mail Address Input E-mail address of receiver. Sender Address Sender’s E-mail account should be SMTP authentication type. For instance, If SMTP server address is xxx.test.com, e-mail address should be xxxx@test.com. Authentication Select USE (SMTP-AUTH). SMTP Server SMTP Server address should be available and its formation will be smtp.xxxx.com. SMTP server address should be same with the SMTP server of Sender.
  • Page 104 Install&User Manual NOT USE This is the way of sending E-mail directly to receiver without SMTP server authentication E-Mail Address Input E-mail address of receiver. Sender Address Not mandatory but necessary for receiver to find out which DVR sends event. Authentication Select NOT USE.
  • Page 105 Action duration keeps the time that set the duration time when relay, buzzer is setting and email will be transferred by the designated time. 6.5.2.3 Normal Event Source User can configure Sensor, motion detection,V-loss,Text. Modle Sensor V-Loss Text HVRM-T1600M HVRM-T1600Q HVRM-T800M HVRM-T800Q HVRM-T400M １０４...

  • Page 106: Motion Detection

    Install&User Manual System Event source System Event source can configure Bad block, Disk full, Fan error, authorization failure, WRS registeration failure. 6.5.3 Motion Detection Channel All or certain channel. １０５...

  • Page 107: Sensor

    6.5.4 Sensor This menu is to setup the existing sensor input and type of sensor. HVRM-T1600M, HVRM-T1600Q have 16 inputs and HVRM-T800M, HVRM-T800Q have 8 inputs and HVRM-T400M has 4 inputs. Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.).

  • Page 108: Preset

    Install&User Manual 6.5.5 Preset In PTZ function, make configured preset work according to sensor input. Please, configure preset per PTZ. After selecing channel in preset menu, select event to work preset. Event can select sensor,MD,Text, its preset can be configured up to 16. Recording setup There are 3 mode for recording –...

  • Page 109: Program Setup

    Install&User Manual 6.6.1 Program setup Using [Program], adjust frame rate and quality and resolution and configure recording program for Manual&Event, Schedule&Event, Continuous&Event. [HVRM Series] In event recording, one channel can record up to its max frame rate and if setting 2 channels as event recording, their recording frame rate will be adjusted automatically.

  • Page 110: Manual/Schedule Recording Setup

    Install&User Manual Reference : how to calculate recording performance D1[704x480] = 2 x Half D1[704x240] = 4 x CIF[352x240] If 480 frame can be recorded at CIF resolution, instead of it, 240 frames at Half D1 and 120frames at D1 resolution are possible. •...

  • Page 111: Manual Recording

    Install&User Manual 6.6.2.1 Manual Recording Only in manual & event recording, manual recording runs and when pressing [REC] button, recording starts. If you want schedule recording, recording mode should be Schedule & Event. [HVRM-T1600M/ HVRM-T800M/ HVRM-T400M] [HVRM-T1600Q/ HVRM-T800Q] １１０...

  • Page 112: Schedule Recording

    Install&User Manual 6.6.2.2 Schedule Recording It records according to the programmed schedule automatically. Make recording mode Schedule & Event and configure day and time. check and select each program default vaule and select one of 9 program from A to I or several programs.

  • Page 113: Event Recording Setup

    Install&User Manual Not selecting schedule and click delete button, it’ll delete selected schedule first. Edition Select Schedule to edit and change weekday, program,time directly. In case that Schedule 50 are all configured, select the time zone to change by mouse click and click the time again, previouse configuartion will be deleted and new configuration will be shown.
  • Page 114 Install&User Manual Event Time configuration Configure time for event recording and there are 3 mode – Always, no use, Custom. In “Always”, event works all the time and in “Custom”, works during configured time. Configuration of Custom is similar with schedule configuration and can configure weekday,time for Event.

  • Page 115: Continuous Recording

    Install&User Manual 6.6.2.4 Continuous Recording Only continuous & event set can record continuously, select Continuous & Event in the menu, it starts to record. １１４...

  • Page 116: Web Viewer

    Install&User Manual 7 Web Viewer WebViewer is Web application program loaded to monitor real-time image or to minitor the images recorded through Web browser to PC located remotely. WebViewer is divided into Login page and Monitor to do monitoring real-time images, Playback to replay reocorded images.

  • Page 117: User Setup

    Install&User Manual Input the set of User ID & Password, click ‘LOGIN’ to access. If didn’t change the password in Control Center, ID and Password will be admin/12345. ID can not be changed. User Setup To access WebViewer, user authority and password can be changed in DVR or Control Center configuration In account menu, user password can be changed.

  • Page 118: Monitor

    Install&User Manual Webviewer Installer Login page provides manual installation program to use WebViewer function. PC that access to WebViewer first installs ActiveX to use WebViewer’s function. At this time when installation is not smooth, installation program needs to download from Login Page and install manually.

  • Page 119: Move To Playback

    Install&User Manual Double click on one of the playback screen to convert in 1 channel mode. After conversion to 1channel mode, double click on screen to return to previous division channels. At division screen, it can change screen location. If 3channel image moves to 6ch, drag 3ch image and drop on 6ch location so as to exchange between 3ch and 6ch image 7.5.2 Move to Playback Move to playback with clicking the above image.

  • Page 120: Channel On/Off

    Install&User Manual 7.5.3 Channel On/Off It is On/Off button for the Channel located to left in page. Click the channel wanted to On or Off. And Default is On. 7.5.4 Sensor Indication The icon indicates when sensor occurs in system When it sensorsed, relevant sensor icon comes to Red, and indicates sensor number of video.

  • Page 121: Event Data

    Install&User Manual 7.5.7 Event data It shows real time event data occurred at the bottom of monitoring page. Indicated Event data list are as follow.. (Table. Event Icon) Button Function Motion Detect On Sensor Input Relay Output On No Video, Video Detected 7.5.8 Video Recording &...

  • Page 122: Usingptz

    Install&User Manual of current monitoring channel. To save video, select the channel and click right button of mouse. Ans select “Save As” and point out the location and press Save button. 7.5.9 UsingPTZ Among the icon on top of video on monitoring, click ‘PTZ’ to acitivate interfacing to control Pan, Tilt, Zoom, and Focus.

  • Page 123: Using Audio

    Install&User Manual Reference Supported PTZ camera list can be refereed to ‘4.8 PTZ manipulation. 7.5.10 Using Audio In case of Channel setup sync with Audio, press right mouse button on the image to activate pop-up menu to “Listen” or activate Audio listen button. First default is Mute. In case of listening Audio, select pop-up menu or button.

  • Page 124: Playback

    Install&User Manual Playback This page is to playback recorded images, and user who has authority of ‘HDD’ among user ID or administrator can use this function. Playback that is made up 16 divisions can play the images by searching through calander by recording period and moving the period.

  • Page 125: Printing

    Install&User Manual Save Iamge dialog box appears, then it can input message or select channel name, date, event data. Press ‘OK’ to open dialog box for the saving location, then save bmp file. 7.6.3 Printing Select image with mouse for the channel to print image saved, and then click ‘Print’ button. Window comes to input Memo, and click ‘OK’...

  • Page 126: Web Monitor

    Install&User Manual 7.6.5 Web Monitor Click ‘Go’ button at top of page, and it can move Web monitor page. 7.6.6 Channel On/Off It is the same function like Channel On/Off function at Web Monitor. It is Channel On/Off button located on right of Page, and click On or Off page for wanted channel.

  • Page 127: Functional Function At The Buttom Of Monitor

    Install&User Manual 7.6.8 Functional function at the buttom of monitor (1) Indicates playback range of recorded image. (2) Press button as the time set at (5) so as to change the time zone to playback in forwarding and backwarding. (3) From left button, it can ‘Move a frame back’, ‘Play backward’, ‘Stop’, ‘Play’, ‘Move a frame forward’.

  • Page 128: Java Viewer

    Install&User Manual 8 JAVA Viewer Java viewer is a web viewer to use in Java. Java should be installed in login screen to use Java viewer. After an installation of Java manually, select “Java” in below of Password window and login. Then single screen of video channel 1 is displayed Multi screen display, Event, Relay can be used in Java viewer.

  • Page 129: User Manual For Mobile Viewer

    Install&User Manual 9 User manual for Mobile Viewer Mobile viewer is viewer service to monitor video via mobile device. To access mobile viewer, user uses mobile device supporting Wi-Fi or smart phone or 3G. Log-In page Below picture is Mobile viewer log-in page. To access log-in page via mobile viewer, please, type the address like http://IP/mvmenu.html.
  • Page 130 Install&User Manual [0] MENU : Move to Log In page [1] CH- : Move to the previous channel. [2] UP : Move to upside of Pan Tilt movement [3] WIDE : Zoom Out action [4]  : Move to left side of Pan Tile movement [6] ...

  • Page 131: Trouble Shooting

    Install&User Manual Trouble shooting 1. DVR booting failure Check the power Check Power cord 2. No video on monitor Check monitor power Check cable between DVR and monitor Check monitor cable port Check DVR power is off If monitor video is gray mode, check the camera type(NTSC/PAL) and reboot.
  • Page 132 Install&User Manual 9. If network is not working Check if Network cable is connected Check DVR IP Check Computer IP Ping Test Check PC specification if Webview video is not shown. 10. The cases necessary to contact the shop In case of extraordinary working(ex: noise, smell or fume) Connetor breakage of power cable In case that rain or water is in the product In case that liquid or foreign is in the product...

  • Page 133: Available Hdd

    Install&User Manual #1. The way to check the manufacturing date It can be checked with its S/N(Serial Number). #2. S/N : Serial Number It means composite 12 digit number with product model name and production year,month, and week. It can be found on the attached label attached on the bottom of product or system info of configuration tool or system information 1 of DVR Func menu.

  • Page 134: Compatitable Cd/Dvd List

    BNC, 1 divison mode only User defined sequence / alarm pop-up Recording Compression H.264 / JPEG Resolution CIF/Half(2CIF)/D1(4CIF) Rate HVRM-T1600M : 480 at CIF HVRM-T800M : 240 at HALF HVRM-T400M : 120 at D1 Quality 5 levels １３３...
  • Page 135 Install&User Manual Mode Manual & Event / Schedule & Event Scheulde 24hrs / 7day Playback Mode Instant playback / Search Speed 120 fps, Search Type Time, Calender, Event, Thumbnail Block Playback 1day ~ 99 days Event & Alarm Event source MD, Sensor, Text Event check schedule 24hrs / 7day...

  • Page 136: Hvrm-T1600Q, Hvrm-T800Q

    HVRM-T800Q : Option) S.M.A.R.T. Temperature and Health Serial & I/O Serial port 1 RS-232C, 2 RS-485 Sensor input HVRM-T1600M : 16 dry-contact HVRM-T800M : 8 dry-contact HVRM-T400M : 4 dry-contact Relay output 2 relay Controller Device Front panel, IR remote, Joystick KBD, Mouse...
  • Page 137 Install&User Manual Main Video output Main output output via BNC & VGA HVRM-T1600Q : 1,4,9,10,16 mode HVRM-T800Q : 1.4.9 mode User defined sequence / alarm pop-up 1280x1024, 1024x768, 800x600 at VGA port Spot output output via BNC, 1 divison mode only User defined sequence / alarm pop-up Recording Compression...
  • Page 138 Install&User Manual Direction Both Protocols 32 models including Bosch, Pelco, Sony, Merit- lilin, Honeywell Network Interface 1 10/100 Ethernet Type Fixed IP, Floating IP, ADSL DDNS supported Bandwidth Limit supported Server/Client/Both Users 10 monitoring, 2 playback Streaming 1 H.264 same as recording 1 additional H.264 smaller than recording 1 JPEG for e-mail sending or mobile Security...
  • Page 139 Install&User Manual Mobile Viewer Monitoring with PTZ, iPhone & BB supported Control Center Standard, max 1000 clients ActiveX(COM) SDK Environmental & Physical Dimension W : 359.0, L : 413.3, H : 88.0 Operating temperature Operating: 41 ~ 113 degrees F. Power AC free volt (100 ~ 240VAC) Power consumption...

  • Page 140: Product Size

    Install&User Manual Product size HVRM-T1600M/HVRM-T800M/HVRM-T400M Series １３９...
  • Page 141 Install&User Manual HVRM-T1600Q /HVRM-T800Q Series １４０...
  • Page 142 Install&User Manual HUNT ELECTRONIC USA INC. 11790 Jersey Blvd. Rancho Cucamonga, CA 91730 Tel: (888)993-4868, (909)987-6999 Fax: (909)987-6997 techsupport@huntcctv.com www.huntcctv.com １４１...

  • Page 143: Open Source License Report On The Product

    Install&User Manual Open Source License Report on the Product The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to <mycctv@gmail.com>.
  • Page 144 Install&User Manual Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
  • Page 145 Install&User Manual TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program"...
  • Page 146 Install&User Manual License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works.
  • Page 147 Install&User Manual offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
  • Page 148 Install&User Manual This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
  • Page 149 Install&User Manual INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 150 Install&User Manual Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details. The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License.
  • Page 151 Install&User Manual The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users.

  • Page 152: Terms And Conditions

    Install&User Manual danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS 0.
  • Page 153 Install&User Manual 1. Source Code. The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work. A “Standard Interface” means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.
  • Page 154 Install&User Manual You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright.
  • Page 155 Install&User Manual source code under the terms of section 4, provided that you also meet all of these conditions: a) The work must carry prominent notices stating that you modified it, and giving a relevant date. b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7.
  • Page 156 Install&User Manual with such an offer, in accord with subsection 6b. d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code.
  • Page 157 Install&User Manual service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.
  • Page 158 Install&User Manual All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term.
  • Page 159 Install&User Manual does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so. 10.
  • Page 160 Install&User Manual In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.
  • Page 161 Install&User Manual consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.
  • Page 162 Install&User Manual PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 16. Limitation of Liability. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE...
  • Page 163 Install&User Manual (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program.
  • Page 164 Install&User Manual Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 165 Install&User Manual ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library.
  • Page 166 Install&User Manual Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it).
  • Page 167 Install&User Manual License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License.
  • Page 168 Install&User Manual You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License.
  • Page 169 Install&User Manual explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License.
  • Page 170 Install&User Manual Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.
  • Page 171 Install&User Manual This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;...
  • Page 172 Install&User Manual "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity.
  • Page 173 Install&User Manual 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
  • Page 174 Install&User Manual modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions.
  • Page 175 Install&User Manual To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets "[]" replaced with your own identifying information. (Don't include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same "printed page"...
  • Page 176 Install&User Manual THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
  • Page 177 Install&User Manual telnet-server license: Copyright (c) 1989 Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 178 Install&User Manual following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of Yahoo! Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission of Yahoo! Inc.
  • Page 179 Install&User Manual The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

  • Page 180: Openssl License

    Install&User Manual Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
  • Page 181 Install&User Manual Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 182 Install&User Manual This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;...
  • Page 183 Install&User Manual The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.] SIL OPEN FONT LICENSE Version 1.1 - 26 February 2007 PREAMBLE The goals of the Open Font License (OFL) are to stimulate worldwide development of collaborative font projects, to...
  • Page 184 Install&User Manual PERMISSION & CONDITIONS Permission is hereby granted, free of charge, to any person obtaining a copy of the Font Software, to use, study, copy, merge, embed, modify, redistribute, and sell modified and unmodified copies of the Font Software, subject to the following conditions: 1) Neither the Font Software nor any of its individual components, in Original or Modified Versions, may be sold by itself.
  • Page 185 Install&User Manual WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE. １８４...

This manual is also suitable for:

Hvrm-t800mHvrm-t400mHvrm-t1600qHvrm-t800q

Table of Contents
