Hunt Electronic HVR-08 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HVR-08
Installation Guide
(v 3.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVR-08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hunt Electronic HVR-08

Summary of Contents for Hunt Electronic HVR-08

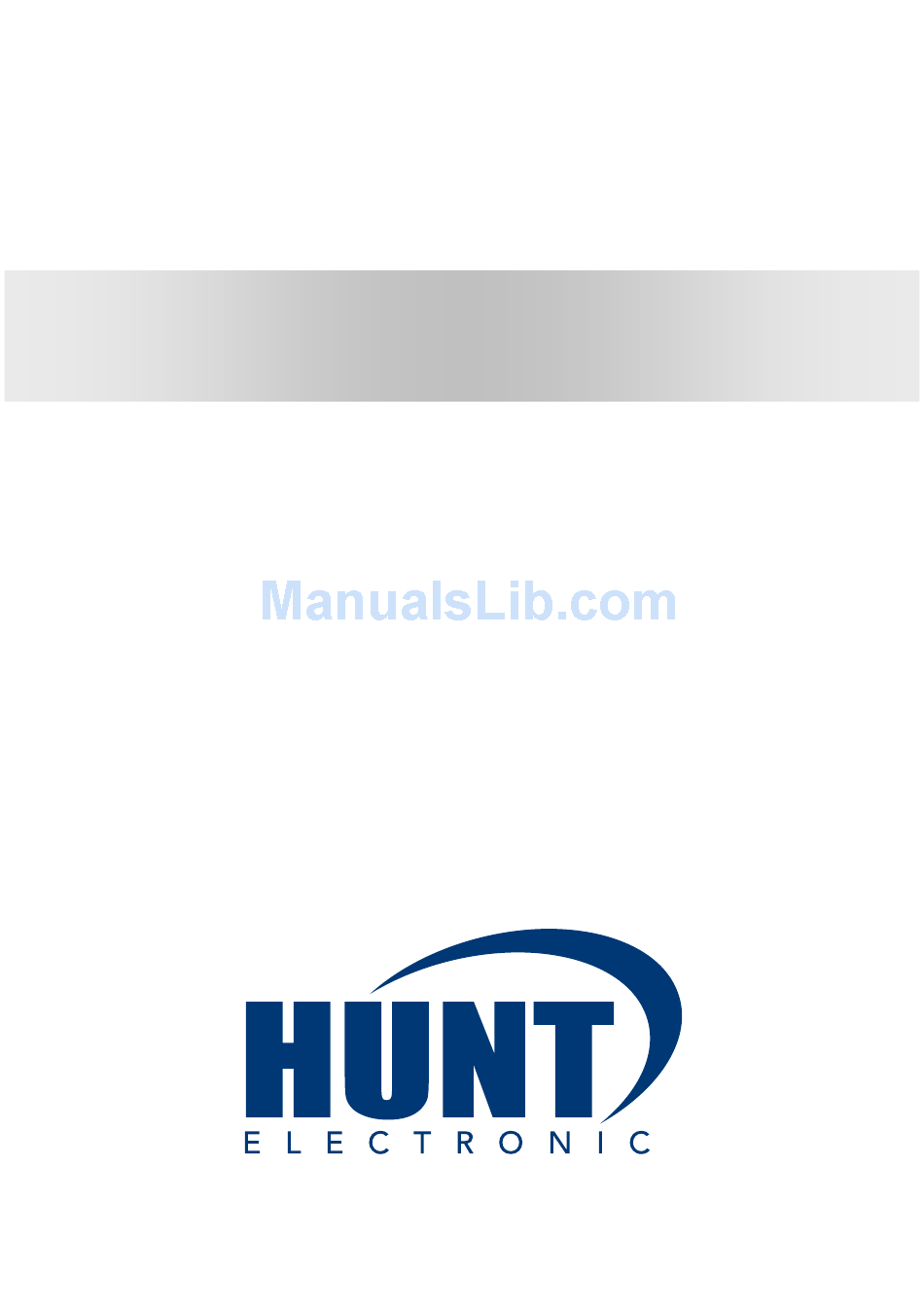

  • Page 1 HVR-08 Installation Guide (v 3.1)

  • Page 2: Fcc Compliance Statement

    FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Important Notice

    HVR-08 is secured after installation. 5. HVR-08 is made of metal. Therefore you can hurt human beings if yu throw it to them or hit on them. When installing HVR-08, be cautious to locate on safe places where children are unreachable.

  • Page 4: Table Of Contents

    Contents OVERVIEW ........................... 7 What is HVR-08?........................ 7 Supplied accessories......................8 Description & Function ....................... 9 INSTALLATION AND CONNECTION..................11 Connecting & Running HVR-08..................11 4.1. Connecting camera ....................11 4.2. Connecting monitor ....................11 4.3. Connecting audio ...................... 12 4.4.
  • Page 5 IEEE1394 prt ......................38 14.2. Connecting IEEE1394 Device ................38 14.3. Available HDD ....................... 39 14.4. Registering & Formatting HDD ................39 Network monitoring & managing................... 41 15.1. Connecting Ethernet ....................41 15.2. Configuring HVR-08’s Network information............42 Using DVR manager ..................... 43...
  • Page 6 16.1. PC system requirements for running DVR manager ..........43 16.2. Installing DVR manager..................43 16.3. Uninstalling DVR manager ..................45 16.4. Configstation......................46 16.5. Monitor........................46 16.6. Playback ........................ 47 APPENDIX ..........................48 HDD ..........................49 #1.1. Fundamental notions & terms................49 #1.2.

  • Page 7: Overview

    OVERVIEW 1. What is HVR-08? The HVR-08 is an 8-analog channels network digital video recorder. Video, Audio, and Text Event-Logs are digitized and stored on two internal hard-drives. 8 analog video channels 1 channel audio recording & playback Max. 60 / 50 ips (NTSC / PAL) recording speed...

  • Page 8: Supplied Accessories

    2. Supplied accessories Unpack and check all the items as below. 1. HVR-08 (1) 2. DC Power Supply (1) (110V~220V) 3. AC Power Cord (1) 4. CD-ROM (Including DVR manager) (1) 5. Remote Controller (1) 6. Guide (2) 7. Plug Bracket (1)

  • Page 9: Description & Function

    3. Description & Function HVR-08 front (1) LED (2) IEEE1394 connecter (3) Remote controller receiver (4) USB connecter (5) Function buttons (6) Bracket fixing hole for rack mount...
  • Page 10 HVR-08 rear (7) Power switch (8) Ethernet connector (9) BNC connector for Video input (10) RCA connector fo Audio input / output (11) RS232 connecter (9Pin D-Sub) (12) Terminal block for RS232 & 422/485 (13) Terminal block for Sensor input...

  • Page 11: Installation And Connection

    4.2. Connecting monitor (1) Connect CCTV monitor to HVR-08 with BNC cable as shown below. <Note> HVR-08 has two video output ports ; for Monitor and VCR. The output signals from the two ports are same and either port may be used.

  • Page 12: Connecting Audio

    4.3. Connecting audio (1) Connect audio signal to HVR-08.

  • Page 13: Supplying Power

    4.4. Supplying power (1) Connect power cable to HVR-08. (2) Turn on the power switch located on the HVR-08 rear panel.

  • Page 14: Running Osd Menu

    <Note> Use the plug bracket to secure the power cable if needed. <Note> To connect EARTH, refer to the following picture. 5. Running OSD menu 5.1. Using menu Press the [MENU] button to open the OSD Configuration Menu.

  • Page 15: Dialogue Box To Edit A Word

    (1) Main Menu (2) Sub-menu (3) Setting Page (4)Helpmessage (1) Main Menu Tabs: The selected tab is shown in blue and the related sub-menus will be shown below the tab. To move to the previous/next Main Menu Tab, use the [◄ / ►] arrow buttons. To move to a sub- menu, press the [ENTER] or [▼] buttons.
  • Page 16 (1) Using number button Enter the related numbers in order of horizontal/vertical. (For example, in order to select “C”, press [3] and [2] buttons.) (2) Using arrow button Select a value using the [◄ / ►] or [▲/▼] buttons. The intersection of the horizontal and vertical bar is selected value.
  • Page 17 (3) Function word The following symbols are for executing specific functions: : Enter 1#2.1 : Back Space & delete : Space ◄ : Move to left ► : Move to right : Previous Code Page : Next Code Page...

  • Page 18: Setting Remote Controller

    6. Setting remote controller 6.1. Setting remote control DIP switch Set the remote control DIP switch to “ON.” 6.2. Setting ID of HVR-08 When controlling several HVR-08s with one remote controller, set Remote Control ID as follows. (1) Press the [MENU] button.

  • Page 19: Selecting Hvr-08

    If several HVR-08s are set with unique ID numbers, they can be controlled with one remote controller. To select a specific HVR-08, press the ID button of remote controller until the 8 LEDs on the front of the HVR-08 light up and a buzzer sounds.

  • Page 20: Loading The Batteries Into Remote Controller

    6.5. Loading the batteries into remote controller Remote controller requires two AAA-type batteries. 2. Taking care that the poles(+/-) 1. Remove the battery cover. 3. Replace the battery cover. are correctly positioned <Note> Batteries are not included as a packing accessory.

  • Page 21: Hvr-08 Configuration

    7. HVR-08 configuration 7.1. Basic configuration 7.2. Advanced configuration...

  • Page 22: External Storage & Backup Configuration

    7.3. External storage & Backup configuration 7.4. Internet/Intranet configuration...

  • Page 23: Hvr-08 Basic Setting

    8. HVR-08 basic setting 8.1. Viewing image After initial start-up, images from Ch.1~4 are displayed in a quad-split screen. <Note> If user password is set, a prompt for entering the password will appear.

  • Page 24: Setting Date & Time

    8.2. Setting Date & Time (1) Press [MENU] button, and select “Quick Setup” tab. (2) Select “Date/Time” and enter the Settings Page by pressing [ENTER]. 8.2.1. Time zone (1) Select “Time Zone” and press [ENETR] button to configure. (2) Select a value using the [◄ / ►] button and press the [EXIT] button when finished. 8.2.2.

  • Page 25: Time Format

    8.2.4. Time format (1) Select “Time Format” using the [◄ / ►] or the [▲/▼] buttons and press [ENTER]. (2) Two Time Formats are available; ‘MM/DD/YYYY’ and ‘YYYY/MM/DD’. Select a value using [▲/ ▼] buttons, and press the [EXIT] button when finished. (Default value is ‘MM/DD/YYYY’.) 8.2.5.

  • Page 26: Setting Recording Condition

    8.3. Setting recording condition Recording conditions under the “Quick Setup” menu tab apply the same values to all analog channels 1~8. All settings are applied for 24 hours/day regardless of the values set for “Time Schedule” or “Alarm Rec.” (1) Press [MENU] button, and select “Quick Setup.” (2) Move to sub-menu by pressing [ENTER] or the [▼] button.

  • Page 27: Channel Status

    8.3.2. Channel status (1) Select “Channel Status” using [▲/▼] buttons and press the [ENTER] button. (2) Select a value using the [◄ / ►] button. Press the [EXIT] button when finished. 8.3.3. Recording speed/quality (1) Select “Recording Speed/Quality” using [▲/▼] buttons and press the [ENTER] button. (2) Select a value using the [◄...

  • Page 28: Connecting And Configuring Sensor

    9. Connecting and configuring sensor 9.1. Connecting sensor input To connect a sensor to S1, fix the wire to “S1” and “G“.(If you connect wire, please refer to the 34Page) <Note> Devices connected to the sensor input should have “Dry contact.” The following diagram is of an electric circuit with approximately 12mA flows.

  • Page 29: Setting Sensor At Osd Menu

    “On” or “Off.” Press [EXIT] when finished. (3) When activated, the “Pre / Post Alarm” function will cause the HVR-08 to record images at the specified Speed and Quality for a length of time before and/or after the sensor is triggered.

  • Page 30: Connecting & Configuring Relay Out

    10. Connecting & configuring relay out 10.1. Connecting relay out HVR-08 has total four ports of Relay Out. To connect a device to “O1,” connect the wires to two “O1”s. <Note> The rated voltage and current of Relay Out are as follows. Do not exceed the rated values.

  • Page 31: Configuring Relay Out

    Each relay can be synchronized with a sensor input or with motion detection for each of the four time schedules (Weekday (Day), Weekday (Night), Weekend (Day), Weekend (Night)). Relays can also be controlled locally by pressing the [SEARCH/RELAY] button followed by the relay number (1-4). Relays can also be controlled remotely through the “HVR-08 Manager S/W.”...

  • Page 32: Connecting External Device With Serial Port

    11. Connecting external device with serial port 11.1. Connecting text Input device (ATM / POS / Access control) In addition to images, the HVR-08 can record text data received from POS/ATM through the RS232 serial port. Connect RS232 to 9pin D-sub of HVR-08, and configure the “Text” sub-menu under the “System” tab.

  • Page 33: Connecting & Configuring Serial Ports For Pan/Tilt/Zoom

    12. Connecting & configuring serial ports for Pan/Tilt/Zoom 12.1. Connecting serial port The HVR-08 has most major PTZ protocols already pre-programmed. Makes and models not supported can still be controlled using the Transparent Protocol. For a list of supported protocols, refer to the list on the OSD Configuration menu.

  • Page 34: Configuring Serial Port

    12.2. Configuring serial port Configure PTZ serial ports and available modes at “System / Serial Setup”. After completing serial setup, cofigure base address and port for each channel under the “Camera” menu tab. When connecting PTZ devices to several cameras, be sure the base address matches the address for the camera.
  • Page 35 <Note> Wire Handling Trimming Wire When connecting a wire to a terminal block, follow the instructions below. Note the different types of wire that can be used. Stranded Wire: Peel off the wiring cover 8~10mm and solder it. Wire gage should be AWG 22 ~ 26.

  • Page 36: Connecting Usb Device

    Inserting & removing wire To insert the wire, use a screwdriver as shown in the diagram to the right. 13. Connecting USB device USB port can be used to copy up to 1 minute of images to a USB Flash memory disk. When connecting USB device, do not exceed the rated values of USB device.
  • Page 37 <Note> USB Flash products that require a Windows program to operate may not be recognized by the HVR-08.

  • Page 38: Connecting Eternal Sorage

    When using FireWire supported external HDD, hard drive bays can be connected to 1 port in the front panel or 1 port in the rear panel. The HVR-08 does not supply power to the hard drive bay; therefore only bays that use external power can be used.

  • Page 39: Available Hdd

    14.3. Available HDD It is recommended to use the following HDD models with the HVR-08. If a non-recommended HDD is used, HUNT ELECTRONIC Inc. will not guarantee the warranty. Manufacturer : MAXTOR Series Model No Size Series Model No Size...
  • Page 40 (1) Press [ENTER] button at “Select Disk”. (2) Select new added HDD (indicated as “[F]”) using [▲/▼] button and press [EXIT] button (3) Select “Action” using [▲/▼] button and press [EXIT] button. (4) Select “Add” using [◄ / ►] button and press [EXIT] button. (5) Select “Apply”...

  • Page 41: Network Monitoring & Managing

    (2) Connect HVR-08 to hub with Ethernet cable. (3) Turn on HVR-08’s power switch. <Note> 1. Supply power to HVR-08 after connecting Ethernet cable to protect against electrical damage to HVR-08. 2. Check cable connection status. 3. Check LED on HVR-08’s rear panel after supplying power.

  • Page 42: Configuring Hvr-08'S Network Information

    15.2. Configuring HVR-08’s Network information The following description is on based on Ethernet connection. For more detailed information on the Network Settings Page, please refer to “HVR-08 OSD User’s Guide”. (1) Press [MENU] button. (2) Select “System” using the [◄ / ►] buttons and press [ENTER].

  • Page 43: Using Dvr Manager

    16. Using DVR manager 16.1. PC system requirements for running DVR manager Minimal Requirements Recommended Requirements P-3 600MHz or above P-4 1.6GHz or above 128 MB or above 512MB or above 16 MB or above 128 MB or above Windows 2000 SP4/XP SP2 above Windows 2000 SP4/XP SP2 above 1024 X 768 pixels or above 1024 X 768 pixels or above...
  • Page 44 (5) Select which 4 components to install and press the “Next” button. (6) Browse and choose a directory if the default directory is not preferred. Click the “Install” button, after selecting a directory to install.

  • Page 45: Uninstalling Dvr Manager

    (7) Click the “Close” button after DVR manager program is installed successfully. 16.3. Uninstalling DVR manager (1) Click Windows “Start” Button. (2) Select and Click ‘Uninstall’ icon to run Uninstall Shield. (3) DVR manager program will be automatically deleted.

  • Page 46: Configstation

    16.4. Configstation Click icon on desktop to run “DVR manager Configstation” program. 16.5. Monitor Click the related icon and run the “DVR manager Monitor” program.

  • Page 47: Playback

    16.6. Playback Click the related icon and run the “DVR manager Playback” program.

  • Page 48: Appendix

    APPENDIX APPENDIX...

  • Page 49: Hdd

    (1) It is possible to connect 2 sets of HDD internally (Internal, ATA Interface) and 63 sets of HDD externally (External, 2 ports of IEEE1394). (2) All of the connected HDDs are recognized as one virtual disk, and HVR-08 supports upto 4TB. (3) Hdds are divided into primary disk (connected firstly) and auxillary disk.

  • Page 50: Disk Manager

    (2) HDD Type at Disk Manager Available of recording Connected and formatted as HVR-08’s file system. If using ‘Add used’ command, it will be changed to [R]. There is no need to reformat. Connected but not available file system. After using ‘Add’, need to format for making as [R].

  • Page 51: Installing Hdd

    250GB. #1.2. Installing HDD Compatible HDD It is recommended to use the following HDD models with the HVR-08. If a non-recommended HDD is used, HUNT ELECTRONIC Inc. will not guarantee the warranty. Manufacturer : MAXTOR Series Model No.
  • Page 52 Installing & Expanding internal HDD Adding or replacing HDD should follow below process. (1) Turn off the power of HVR-08. (2) Check whether the dip switches are set as illustrated below (3) Remove the 6 screws as illustrated below and pull up the cover from the rear part to open.
  • Page 53 (4) Take out power and data cable of HDD from Main PCB ASS’Y. Remove 4 HDD Bracket screws and take out HDD ASS’Y. (5) Fix the HDD with provided screws. Connect power and data cables to HDD. Installing single HDD Installing 2 HDDs <Note>...
  • Page 54 (6) Connect HDD power cable to main PCB ASS’Y. Secure the HDD with screws. (7) Connect HDD cable’s connector to HDD as in the following picture. (8) Assemble the top cover.
  • Page 55 When installing one primary disk (1) When power is supplied to HVR-08, “Disk Manager” runs automatically after rebooting. If not, run it manually in “Menu Utility Disk Manager”. (2) There is a HDD that is indicated as “[F] IntA”. Select it.
  • Page 56 When installing one primary disk and auxiliary disk (1) When power is supplied to HVR-08, “Disk Manager” runs automatically after rebooting. If not, run it manually in “Menu Utility Disk Manager”. (2) There is a HDD that is indicated as “[F] IntA”.
  • Page 57 HVR-08 use IEEE1394 as external storage device interface, and has two ports of IEEE1394. HVR-08 supports upto 4TB storage. <Note> 1. Some IEEE1394 ports may not be recognized by the HVR-08. Before purchasing, consult the local HUNT ELECTRONIC distributor. 2. External storage should use external power.
  • Page 58 When using Disk Farm The following description is when HVR-08 has internal primary disk and 3 sets of IEEE1394 HDD. (1) When external HDD farm is connected to IEEE1394 port, “Disk Manager” runs automatically. If not, run it manually in “Menu Utility Disk Manager”.
  • Page 59 When using RAID The following description is when HVR-08 has internal primary disk and 1 set of IEEE1394 HDD. <Note RAID> Even though several HDDs are connected to RAID, HVR-08 will recognize them as only one HDD. For connection and setup of RAID, please refer to the manual of related device.
  • Page 60 Installing & Expending external HDD (When using external HDD as primary disk) When using Disk Farm The following description is when HVR-08 does’t have internal primary disk and 4 sets of IEEE1394 HDD. (1) When external HDD farm is connected to IEEE1394 port, “Disk Manager” runs automatically. If not, run it manually in “Menu Utility Disk Manager”.
  • Page 61 (10) Press the [EXIT] button to shut down “Disk Manager”. When using RAID The following description is when HVR-08 does’t have internal primary disk and 2 sets of IEEE1394 HDD. (1) When external HDD RAID is connected to IEEE1394 port, “Disk Manager” runs automatically. If not, run it manually in “Menu Utility Disk Manager”.

  • Page 62: Replacing Hdd

    #1.3. Replacing HDD Checking HDD HVR-08 file system (VFS2) sensors bad sector automatically, and the sensored bad sector is not used. The following means when HDD is broken or has some problem in connection. (1) When replaying is stopped or HVR-08 is rebooted in specific playback range.

  • Page 63: Keeping Data

    #1.4. Keeping data To keep the stored data, you should back up or reserve as HDD itself. Backup (1) Connect backup HDD to IEEE1394 port. (2) Go to playback mode with pressing the [Playback] button. (3) Press the [SELECT] button and then [MENU] button. (4) Run “Backup Manager”...

  • Page 64: Caution In Using Hdd

    How to preserve as HDD itself To keep HDD itself, it is possible only when HDD is installed and used in HVR-08 (including primary disk and RAID). And it is recommended to use external HDD instead of internal HDD. Namely, connect only one external HDD, and then keep it after data is full.

  • Page 65: Using Cd-Rom

    #2. Using CD-ROM Components of CD- ROM disc Installation Guide : HVR-08 Installation Guide User’s Guide : HVR-08 User’s Guide : DVR manager User’s Guide DVR manager (HVR-08 Remote Management Program) Acrobat Reader : Version 5.1 Preparation To read manual of CD-ROM disc, Adobe Acrobat 5.0 should be installed in client’s PC.

  • Page 66: Specification

    #3. Specification General 32bit RISC Processor (200MIPS) Flash memory Main memory 64MB Embedded LINUX Video channel 8 Analog Channel (NTSC or PAL) Storage device Internal 3.5” IDE HDD 2EA (default 1EA) External 2EA for IEEE1394 interface Support Max. 4TB Intelligent file system Data-loss protection against power failure Image compression Technology...
  • Page 67 Display, Recoding & Playback Monitoring Max. 240/200ips (NTSC/PAL) Viewer 1ch, 4ch, 9ch, Auto Sequential Recording performance Max. 60 ips for local channel : max 7.5 ips/channel 720x243(NTSC), 720x288(PAL) Recording resolution Playback performance Max. 60ips Playback speed 1x, 2x, 4x, 8x, 16x (Forward & Reverse play) Function Step-forward, Step-reverse Environment...

  • Page 68: Ptz Control

    4 Sensor inputs (Support dry contact) Sensor input PTZ control Serial port RS232(1), RS485(1)/ RS422(1) Front panel button & IR remote controller Control method (local) (control IP video channel as well) Control method (remote) On-the-screen PTZ control on PC Preset mode 8 points preset per channel Group mode 1 group per channel...
  • Page 69 Mechanical Dimension (W x D x H) 306 x 280 x 67(mm) Weight 3.5Kg (With one HDD)
