2. Hookup

Basic Connections
Cabling for all AES50 connections between M32C and DL16/DL32 stageboxes:
• Shielded CAT-5e cable, Ethercon terminated cable ends (recommended)
• Maximum cable length 100 meters (330 feet)
DL32
P16D
B3031A Studio monitors
P16M
13 M32C DIGITAL RACK MIXER User Manual

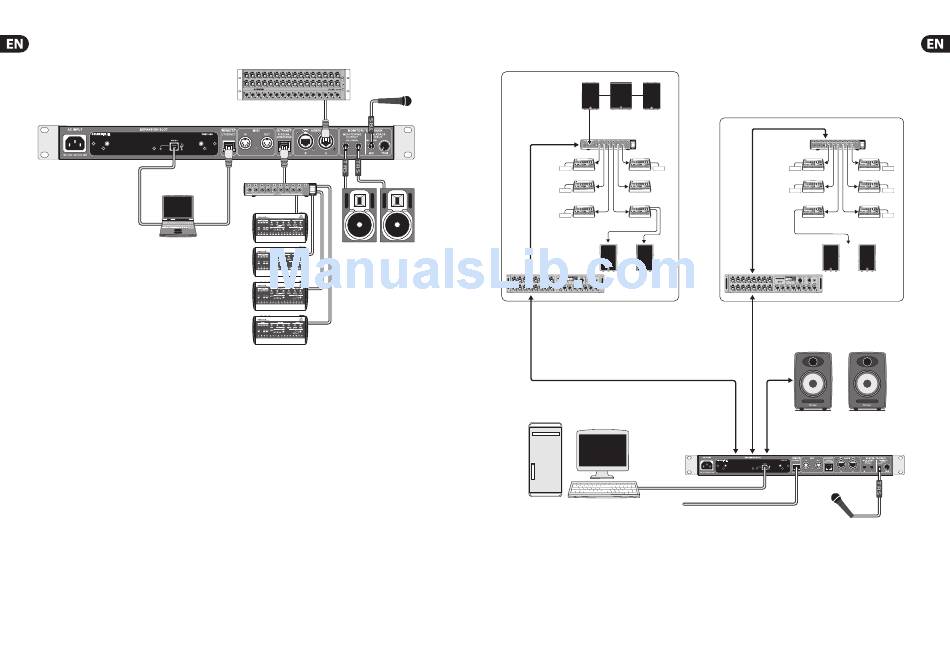

Multiple Stage Setup with M32C, DL16 snake and P16 Personal Monitor System
Turbosound iQ15 and iQ18S
speakers with Ultranet connectivity
P16-D Distributor
IEM IEM
Bass Player Vocal 1
IEM
Guitarist Keyboardist
Phones
Drummer Voc 1 Floor wedges
POWERPLAY P16-M Digital Personal Mixers
Vocal 1
P16
Ultranet
Turbosound M12
active speakers
AES50
Supermac
Control room with M32 Editor to run both stage setups from one
location through the M32C.
P16-D Distributor
IEM IEM
2nd Guitarist Background Vocal 2
IEM IEM
Background Vocal 1 Background Vocal 3
IEM
Percussionist Spare
Keyboards Percussion
P16
Ultranet
AES50
Supermac
Active Studio Monitors
Analogue balanced TRS
Talkback mic
