7. Specifi cations

Processing
Number of processing channels 32 input channels, 8 aux channels,
8 FX return channels, 16 aux buses,
6 matrices, main LRC
Internal eff ects engines, 8 / 16
true stereo / mono
Internal total recall scenes 100
(incl. preamp and fader)
Signal processing 40-bit fl oating point
Network I/O latency 1.1 ms
(stagebox in > console processing*
> stagebox out)
Connectors
Talkback mic input, TRS 1 external (no phantom power)
Monitoring outputs 2
¼ " TRS balanced
AES50 ports, SuperMAC 2
Expansion card slot 32 channel audio input/output,
various standards
P-16 connector, 1
Ultranet (no power supplied)
MIDI inputs / outputs 1/1
Ethernet, RJ45, rear panel, 1
for remote control
USB Type A, front panel, 1
for audio and data
export/import
Talkback Input
Maximum gain +50 dB
Maximum input level at unity gain +8 dBu
Input impedance 2 kΩ
Monitor Outputs
Maximum output level +21 dBu
Output impedance 50 Ω
Frequency response, +0 to -1 dB 20 Hz - 20 kHz
Output noise, 22 Hz - 22 kHz -83 dBu, unweighted
Distortion, 0 dBu output level, 1 kHz 0.02%
Indicators
LCD screen 128 x 64, LCD with RGB color
backlight
Status LEDs AES50 port A/B status, power LED,
Mute All button
Power
Switch-mode power supply Autorange 100-240 V (50/60 Hz)
Power consumption 40 W
Physical
Standard operating 5°C – 40°C (41°F – 104°F)
temperature range
Dimensions 483 x 300 x 50 mm (19 x 11.8 x 2")
Weight 3.5 kg (7.7 lbs)
*including all channel and bus processing, excluding insert effects and line delays
33 M32C DIGITAL RACK MIXER User Manual

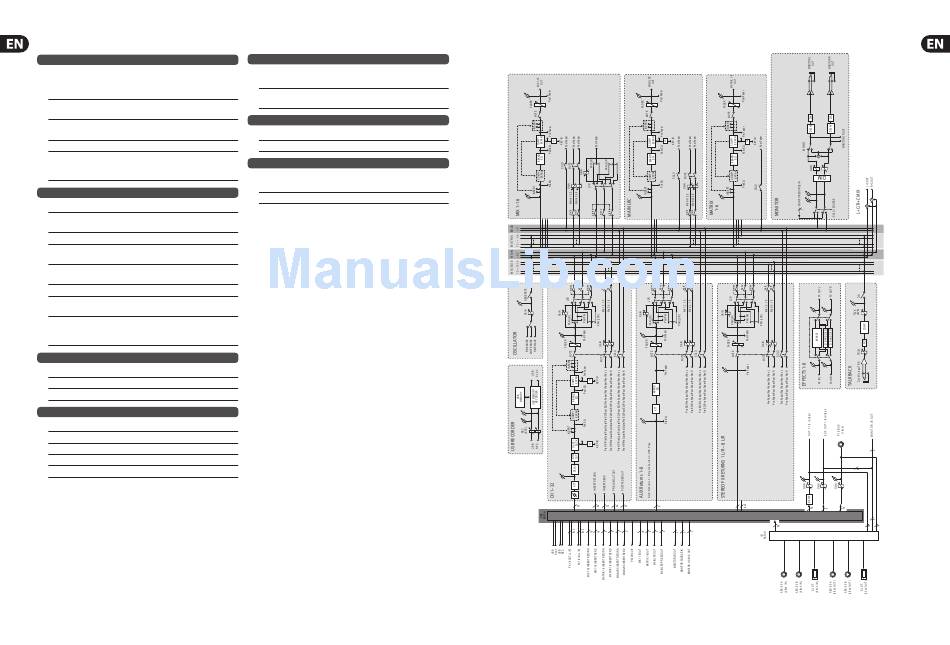

8. Block Diagram
