10 M32C DIGITAL RACK MIXER User Manual
Introduction
Welcome to the M32C user manual! After years of intense development, we are
proud to off er a mixer that combines tremendous power and fl exibility with a
very user-friendly layout and intuitive workfl ow that allow you to get up-and-
running right away.
The M32C is a robust-yet-streamlined mixer that features all of the basic
functionality and processing of the MIDAS M32 console in a smaller form factor.
When paired with our DL16 digital stagebox and either the M32-Mix app for
iPad* or M32-Edit editor for PC/Mac*, the M32C becomes the centerpiece of a
highly-fl exible mixing system for both portable and fi xed-install applications.
Dual AES50 Ethernet jacks that employ KLARK TEKNIK SuperMAC technology
contribute 96 x 96 signals to the total count of 168 x 168 accessible sources and
destinations. The ability to save and recall entire scenes makes set or program
changes quick and simple. A front panel USB connector enables system data to be
stored or a board mix to be recorded directly to external fl ash or hard drives.
A virtual FX rack off ers 8 true-stereo (16 mono) multi-eff ects processors,
with over 60 FX models that eliminate the need for any additional outboard gear.
4 high-quality eff ects such as delay, chorus and reverb can run concurrently with
8 channels of 31-band graphic equalization.
The built-in USB interface card enables streaming of up to 32 tracks to and from a
computer for recording, mixing and mastering purposes.
Continue through this user manual to learn all about the functionality
that this powerful mixer has to off er! We also recommend that you check
midasconsoles.com to make sure you have the latest fi rmware installed as we
release frequent updates.
*iPad and Mac are trademarks of Apple Inc.
11 M32C DIGITAL RACK MIXER User Manual

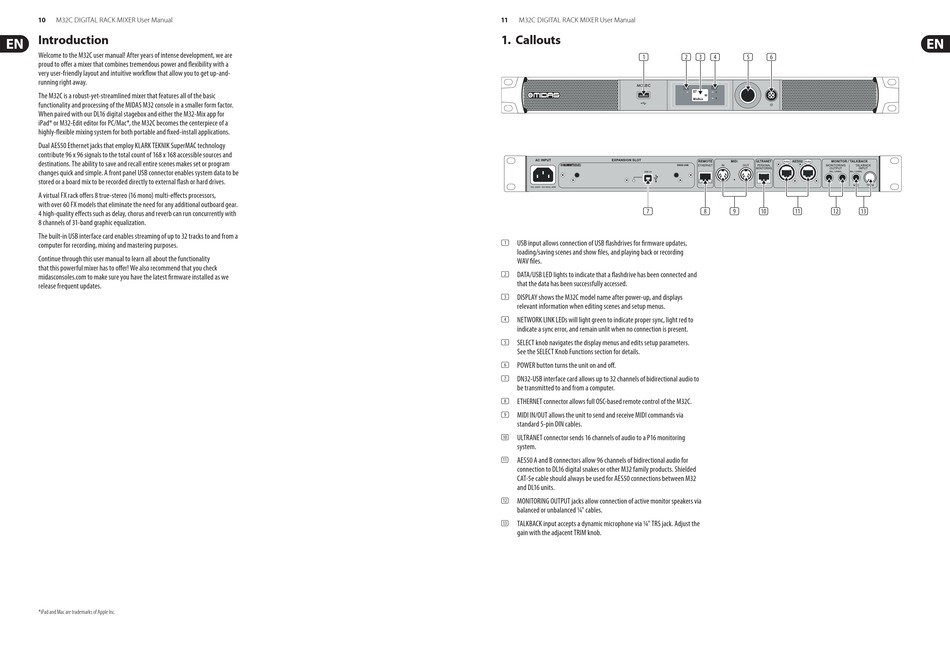

1. Callouts

(1)
(7)
(1) USB input allows connection of USB fl ashdrives for fi rmware updates,
loading/saving scenes and show fi les, and playing back or recording
WAV fi les.
(2) DATA/USB LED lights to indicate that a fl ashdrive has been connected and
that the data has been successfully accessed.
(3) DISPLAY shows the M32C model name after power-up, and displays
relevant information when editing scenes and setup menus.
(4) NETWORK LINK LEDs will light green to indicate proper sync, light red to
indicate a sync error, and remain unlit when no connection is present.
(5) SELECT knob navigates the display menus and edits setup parameters.
See the SELECT Knob Functions section for details.
(6) POWER button turns the unit on and off .
(7) DN32-USB interface card allows up to 32 channels of bidirectional audio to
be transmitted to and from a computer.
(8) ETHERNET connector allows full OSC-based remote control of the M32C.
(9) MIDI IN/OUT allows the unit to send and receive MIDI commands via
standard 5-pin DIN cables.
(10) ULTRANET connector sends 16 channels of audio to a P16 monitoring
system.
(11)
AES50 A and B connectors allow 96 channels of bidirectional audio for
connection to DL16 digital snakes or other M32 family products. Shielded
CAT-5e cable should always be used for AES50 connections between M32
and DL16 units.
(12) MONITORING OUTPUT jacks allow connection of active monitor speakers via
balanced or unbalanced ¼ " cables.
(13) TALKBACK input accepts a dynamic microphone via ¼ " TRS jack. Adjust the
gain with the adjacent TRIM knob.
(2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13)
