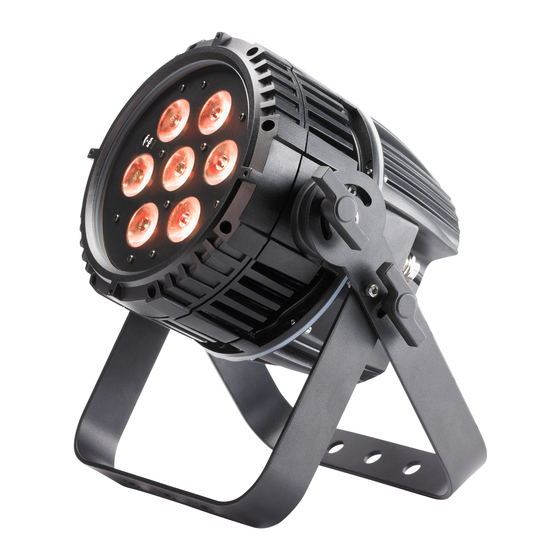

7 and 15x5w quadricolor leds waterproof projectors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
9934-9935 - Version 2 / 06-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPSPOT15QC and is the answer not in the manual?

Questions and answers

Related Manuals for Contest IPSPOT15QC

Summary of Contents for Contest IPSPOT15QC

  • Page 1 USER GUIDE 9934-9935 - Version 2 / 06-2014...

  • Page 2: Safety Information

    Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions.
  • Page 3 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.

  • Page 4: Technical Specifications

    Their double holding brackets allow you to attach them to a structure, or directly operate them on the ground. 3 - Technical specifications • Their strenghts : IPSPOT7QC - Quadrichromic LEDs - Very bright, with a vast aperture angle • Optical :...

  • Page 5: Rear Panel

    IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 5 - Rear panel Power input socket Display Allows you to connect the projector to an electrical Allows you to configure the projector. Please refer outlet. to the next paragraph for more details about menus. Please make sure the voltage is in adequation with MODE button the product indications.

  • Page 6: Menus And Functions

    IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 6 - Menus and functions Press MODE to access menus. Press MODE to browse through submenus. Press SETUP to configure the selected function. Simultaneously press MODE and UP if you want the display to remain lit. Simultaneously press MODE and DOWN if you want the display to automatically light off if it remains inactive for more than 20 seconds.
  • Page 7 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English Starts the user program Allows you to set the duration of the user program Playing user Configures the fade out time of every step of the program programs Allows you to set the flash rate of every step of the program Allows you to configure the max output (dimmer) of every step of the program Allows you to configure the number of steps of your user program.
  • Page 8 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7 - The various DMX modes 6.1 - 2-channel pure RGB (without white) = CHANNEL 1 CHANNEL 2 DMX values Effects DMX values Effects 000 - 015 016 - 030 031 - 045 Orange 046 - 060...
  • Page 9 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.5 - 6-channel pure RVB without white) = CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function Blue Green (000 - 255) (000 - 255) (000 - 255) 000 - 015 Black-out...
  • Page 10 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.6 - 2-channel RGB with white (compatible with pure RGB) = CHANNEL 1 CHANNEL 2 DMX values Effects DMX values Effects 000 - 007 008 - 015 016 - 023 Orange 024 - 030 Yellow...
  • Page 11 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.8 - 5-channel RGBW (compatible with pure RGB) = DMX values Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100%...
  • Page 12 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.10 - 7-channel RGBW (compatible with pure RGB) = CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function Blue Green White (000 - 255) (000 - 255) (000 - 255) (000 - 255)
  • Page 13 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.11 - 5-channel RGBW = DMX values Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100% 000 - 255...
  • Page 14 IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 7.13 - 7-channel RGBW= CH 7 CH 6 CH 5 CH 4 CH 3 CH 2 CH 1 DMX values Function White Blue Green (000 - 255) (000 - 255) (000 - 255) (000 - 255) 000 - 007...

  • Page 15: Infrared Remote Control

    IPSPOTQC - 7 and 15x5W quadricolor LEDs waterproof projectors English 8 - Infrared remote control The infrared remote control supplied with the projectors allows you to remotely control all their functions. The infrared sensor is located at the front, between the LEDs. Note : The remote control can even be used when the projector is in DMX mode.
  • Page 16 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
